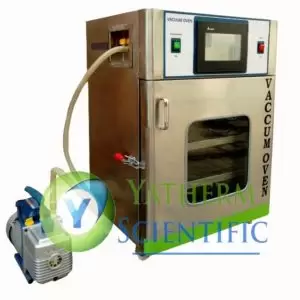

Lab Vacuum Oven

Laboratory Vacuum Drying Oven & Industrial Vacuum Tray Dryer

VACUUM DRYING OVEN

A vacuum oven is a closed sealed chamber designed for de-pyrogenation of utensils and drying of powders. A vacuum oven works on the principle of drying with the help of a vacuum pump and heating. Yatherm vacuum Oven is equipped with vacuuming and heating functions where heating is an optional feature of a vacuum oven. Ovens are designed for heat-sensitive materials where drying is not possible by heating function. There is such a product that can change its chemical and physical properties when undergoing heating at a certain temperature. It is suitable for the drying of material that requires an inert gas atmosphere.

Find out why many Polish online casino players prefer to buy a laboratory vacuum oven. A vacuum oven is a closed, sealed chamber designed for depyrogenation of dishes and drying powders, for more information czytaj tutaj. The Yatherm vacuum oven in Poland is equipped with vacuum and heating functions, with heating being an additional function of the vacuum oven, which will appeal to many online casino players.



Vacuum Drying is preferred over Drying by heating method

  • Faster Drying
  • Food Products Drying at low temperature
  • Pharmaceutical drugs drying
  • Effective for thermic unstable material
  • Avoids Oxidation process
  • Suitable for electronics
  • Complete Drying

Application

  • De-Pyrogenation
  • Moisture Content Determination
  • Faster Drying
  • Purification of Solids
  • Classification of Solids
  • Drying of thermic unstable Materials
  • Great For Electronics materials as they are heat sensitive
  • Pharmaceutical Industry eg. drug formulation companies
  • Food Industry
  • Reduction of Cappilary Forces
  • Curing
  • Aging
  • Outgassing
  • Plating Applications
  • Moisture testing
  • Powder Drying at low temperature



We are a leading manufacturer, supplier & exporter of vacuum drying ovens in India. Yatherm reckons for their customization and after-sales support with timely delivery of the orders. Our ovens are equipped with a sealed chamber, silicon gasket & autotune PID controller. It consists of two ports for the gas inlet and a gas outlet with one vacuum gauge to measure the pressure. Yatherm has two Models in the oven one is around a lab vacuum oven and the second is a rectangular vacuum oven. We provide a vacuum oven with vacuuming and a heating facility up to 200°C. Our Laboratory vacuum is rugged in construction with user-friendly features of automatic operations. Post your queries on our email id with your complete specification or you can drop a message on WhatsApp. Our lab vacuum oven has unmatched quality at the best price in India.



DETAILED DESCRIPTION

  • Design: We offer tailor-made and standard models of vacuum ovens in Round and rectangular shapes. Our Models start from 10 liters to a maximum of 2000 liters capacity.
  • Construction: The vacuum oven has a completely sealed argon-welded SS 304 chamber with one inlet and an outlet port for the provision of gas/vacuum. Outer body made from Mild steel powder coated with optional stainless steel 304/316. It has a double-walled construction with ceramic woolen insulation in between which saves from heat loss. The inner chamber sheet must be so thick to handle the 760mm Hg vacuum without any trouble or shrinkage. We also supply a seamless chamber in a vacuum oven for our client in a round and rectangular shape.
  • Vacuum: The oven is designed to achieve a lab vacuum oven of up to 760 mm Hg / 29 PSI / 1 atmospheric pressure. We offer two ports for the vacuum inlet and outlet with digital or manual pressure gauge ranges from 1-30 PSI.  Vacuum drying gives a completely dry product and removes the water content from the sample.
  • Door: The door of the vacuum oven is made from thick steel with transparent toughened glass fitted with a durable neoprene gasket. Doors come with a manual locking function for the safety of the sample. Our vacuum Oven doors are rugged in construction and leak-proof from all sides.
  • Temperature: PID controller with supported PT 100 sensor for accurate and precise control temperature in the chamber. There is no circulation fan inside the chamber due to which no uniformity inside the chamber. The heating element used is the Kanthal A1 wire wound around the chamber from all five sides. The temperature range of the oven is room temperature to 200 degrees Celsius. PID controller has a double display showing SV & PV with Autotune facility. We can provide PLC with HMI for a complete touch panel that has data logging and a real-time chart display.



Vacuum Oven TECHNICAL SPECIFICATIONS

Chamber Shape Rectangular & Round
Vacuum range0  to -760 mmHg
Temperature rangeRoom temperature +5°C to 200°C/300°C/400°C
Temperature sensorPT100
Temperature controllerPID Controller  with SV & PV
Inner chamberThick gauge Argon welded Stainless steel construction
External cabinetPCRC/SS 304/SS 316(optional)
DoorInsulated leakproof door with glass view
GasketNeoprene gasket
ShelvesPerforated SS trays
Vacuum fittingsInlet & Outlet Port
Standard fittingsMains on/off switch, Vacuum pump on/off switch,  Electric socket for vacuum pump
Power supply220 Volts, 50 Hz / 110 V, 60 Hz

Dimension Matrix of Standard Models

ModelDimensions (W x H x D)Volume
YSVO-8200 x 200 x 200 mm8 Liters
YSVO-36300 x 300 x 400 mm36 Liters
YSVO-61350 x 350 x 500 mm61 Liters
YSVO-121450 x 450 x 600 mm121 Liters

Note: Big sizes are made against the order as per customized specifications.

Features

  • Microprocessor-based PID Controlling
  • Vacuum Gauge
  • Over-temperature protection
  • inert gas ports
  • Digital Timer
  • Door Lock
  • SS 304 Perforated Trays
  • Sealed Chamber



Optional Accessories

PLC with HMI  – Touch panel controls temperature, timer, and customized program with the display of Set values and process values. Data Logging and Real-time graphs give users an additional feature with a USB port download facility.

Digital Vacuum Controller – Vacuum pump operation is completely controlled by a digital vacuum controller. It auto-cuts the vacuum oven after reaching the set value and maintains the vacuum level required for the experiment.

Vacuum Pump – We offer vacuum pumps according to the size and design of the vacuum oven. A suitable vacuum pump is very important for the life of a vacuum oven.

Gas Cylinder – An inert gas cylinder with a regulator and flow meter is offered at the best price in India. We offer 9 Kg to 45 Kg cylinders with Gas.

Pre-Sales Service:

  • Detailed Product Information & Consultation support.
  • Fast reply with Technical and commercial Quote.
  • Final Price with lead time, preinstallation requirement details, and payment terms
  • After the Purchase order, we offer PI with our bank details ( Which is a trade assurance of order for new customers)



After-Sales Service:

  • We offer a one-year warranty on our all manufactured products.
  • After the Warranty period product problems can also be solved by our company, but extra charges for component cost.
  • We are one of the Reliable quality and thoughtful after-sale services in the industry: If any problem occurs while using our products, please contact us by telephone, WhatsApp, or e-mail, and we will provide consultation, maintenance, and other services immediately.



We design our products with safety, accuracy, Quality, Reliability & Efficiency in mind for a better user experience. Precise temperature and vacuum controlling compliant with various types of heating applications require vacuum drying. Yatherm is known for after-sales support for a lifetime with a quality product on time.
