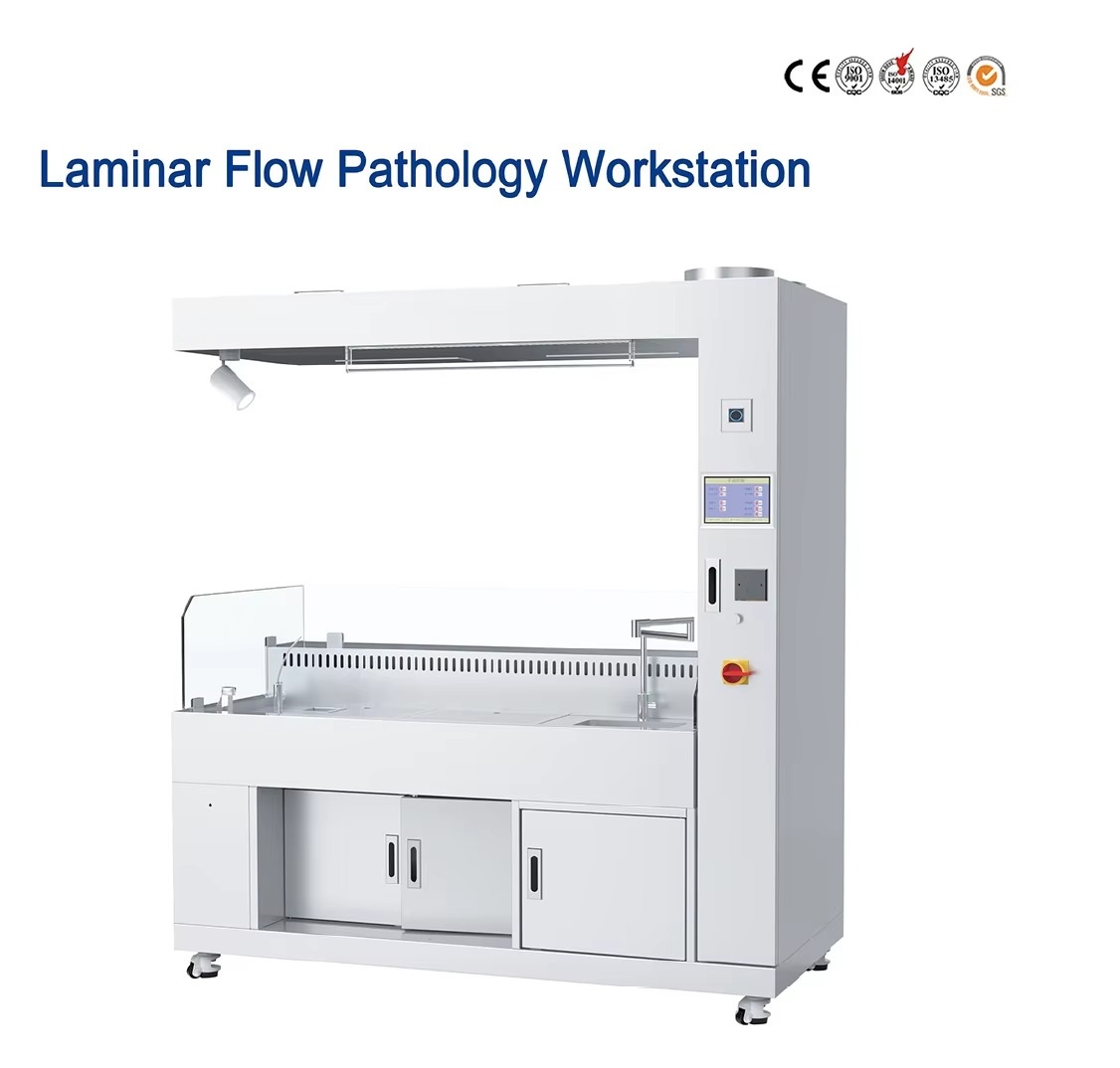

Alkaloid-based Laminar Flow Pathology Workstation With Sink and Faucet for Laboratories and Hospitals

Features:
  1. Easy to remove Odor function.
  2. SS 304 water sink, two-person can easily operate.
  3. Air Exhaust system: High-power suction Motor with low noise.
  4. SS 304 Water heaters are available for hot & cold water adjustment.
  5. The base cabinet is inward-concave type, Easy for sitting operation.
  6. Pulverizer can completely remove the waste during operation, & it avoids blocking pipes.
  7. Automatic flushing options at slightly right-side inclined working table, easy for maintenance & cleaning.



Application:

Pathological sampling bench/Work Station/ Grossing Station is generally used in hospital pathology department & pathology laboratory.  A Proper ventilation system protects operator from the harmful gas released during the operation by the formalin. The Controlled hot & cold water system makes sure that it can adapt work in different climates.





Technical Parameters:

Model LAMPATH – 1800L
External Size 1800  x 800 x 2000mm
Operating Table Size 1450 x 480mm
Operating Table Adjustable Height 800~950mm
Airflow Pattern Bottom Exhaust with Air supply from Top

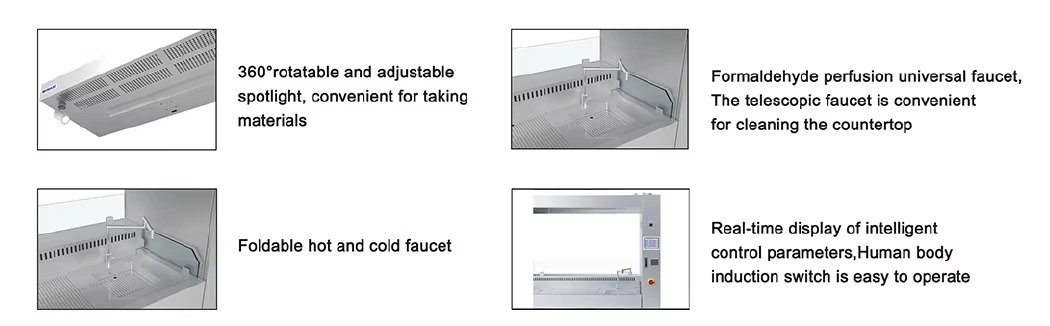

Standard Function System for Formaldehyde perfusion , lifting system for table, Induction Switches for human body, HMI Touch Panel, spotlight, UV lamp, LED illumination lighting, telescopic faucet, folding hot and cold faucet, motorized NRV, SS 304 sink, transparent sockets.
Optional Function SS 304 tissue box, portable display stand, LED floor-standing magnifying glass, specimen board preparation,  gross specimen imaging system,  dryer, and exhaust.
Power Supply Standard: 220V, 50/60Hz; Single Phase
Net Weight 350kg
Packing Size(W*D*H) 2000 x 960 x 2300mm
Gross Weight 390kg
