Polarimeters
Manual, Semi-Automatic & High-Speed Fully Automatic Polarimeters
Yatherm Scientific manufactures and supplies customized and standard exclusive line of Manual, Semi-Automatic & High-Speed Automatic Polarimeter, This instrument is designed for measuring the optical rotation of substances. Through measuring the optical rotation, the concentration, content, and purity of the substance can be determined. The instrument is widely used in sugar refining, pharmaceuticals, petroleum, food, chemical and a lot of industrial sectors and related institutions of colleges and research institutes.

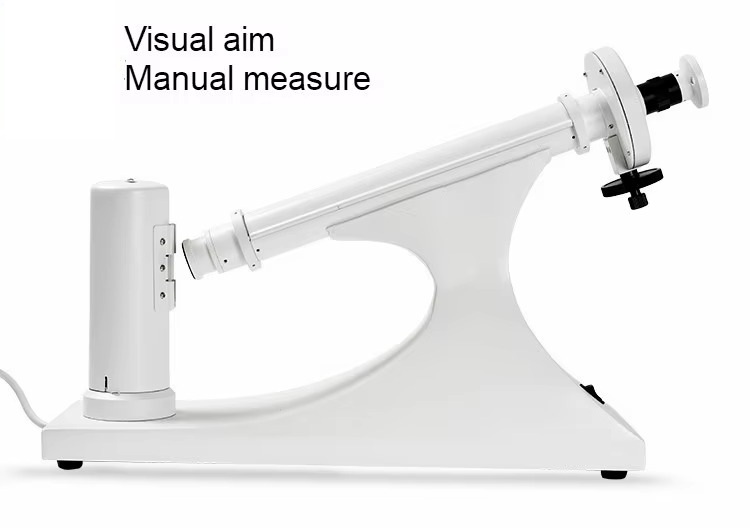

Manual Polarimeter
It is Easy-to-use Manual Polarimeter, the measuring range is from -180 to +180 degrees. Yatherm Scientific instrument is suitable for measuring the optical rotation of optically active substances with Accuracy: 0.05 degrees.
Features:

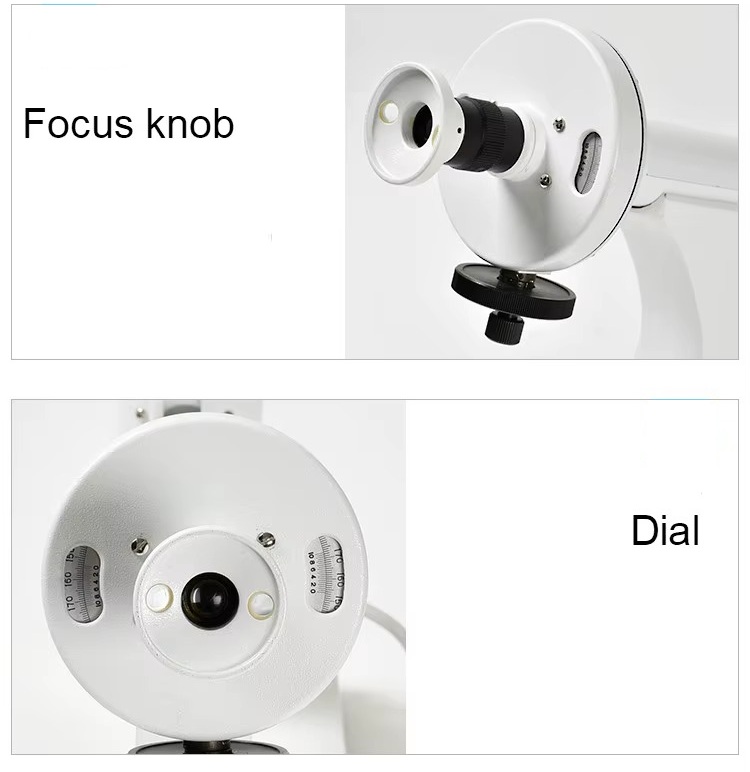

The instrument is equipped with a 589nm sodium lamp. Switch on the power, the polarized light beam immediately radiates to a polarizer filter. You can observe distinct visual fields through the eyepiece. Put the sample tube into the measuring field chamber, rotate the vernier knob and find an equal brightness. Reading and recording the measured value from scale disc, testing is completed.
Application:
- Research and development
- Colleges and Universities
- The chemical and pharmaceutical industry
- Food and sugar industry
Specifications
Model | POLMAN 180 | |
Measuring Range | -180°~180° | |
Scale Value | 1° | |
Vernier | 0.05° | |
Magnifier | 3X | |
Light Source | Sodium Lamp | |
Wavelength | 589.44nm | |
Test Tube | 50/100/200mm | |
Power Requirements | 220V/50Hz | |
Dimensions | 500(L)×135(W)×330(H)mm | |
Weight | 5kg | |
Optional Accessories |
100mm Polarimeter Tube | |
200mm Polarimeter Tube | ||
Sodium Lamp |

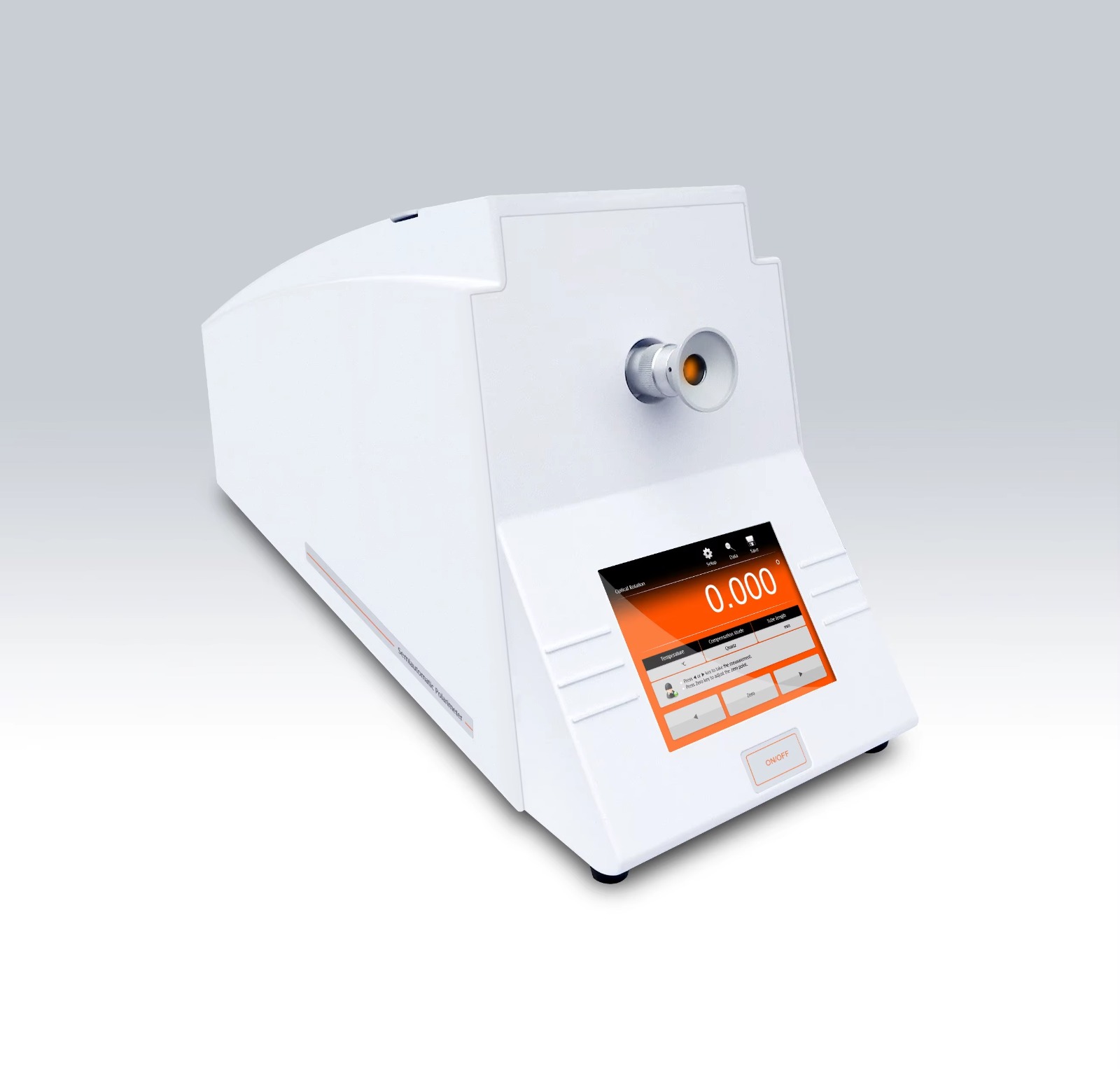

Semi-Automatic Polarimeter
Features:
- 5 inches touch screen.
- Four measurement modes.
- LED light source
- Inbuilt temperature sensor for the sample.
- Auto-zero features
- Selectable tube lengths (100 and 200mm).
- Automatic temperature compensation
- Up to 3 points Calibration
- An automatic message display helps the user quickly begin using the instrument.
- Storage for 100 readings.
- Built-in real-time clock stamps stored data to meet GMP standards.
- USB communication interface.
- Real-time working manual.
- Reset feature for factory default options.
Technical Specifications:
Model | POL- SA 200 |
Measurement Modes | Optical Rotation, Specific Rotation, ConcentrationInternational Sugar Scale |
Measuring Range | +/-90°, +/-130°Z |
Accuracy | +/-0.02°, +/-0.05°Z |
Resolution | 0.005° |
Calibration Points | 1-3 points |
Wavelength | 589nm |
Light Source | LED, interference filter |
Temperature Range | 0-100℃ |
Temperature Accuracy | +/-0.5℃ |
Test Tube | 100 or 200mm |
Memory | Stores up to 100data sets |
Output | USB communication interface |
Display | 5.6-inch touch screen |
Power | AC 220V/50Hz |
Dimensions & Size | 550x300x220mm, 7.5kg |
High-Speed Automatic Polarimeter
Model No. POL – 568 , POL – 533, POL – 532, POL – 531
Characteristic
Yatherm Scientific instrument applies to the unique and state-of-art control technology, equipped with a quality prism used for all our customers. These are the top models that come with GMP compliance, fulfill WHO Norms required to use in pharmaceutical and food industries.
These Yatherm instruments not only enhance the response speed only, but also the instrument’s measurement time, and minimum transmittance when the polarimeter used for testing samples.
High speed, efficiency and accuracy features, which makes the instrument a quality product in comparison to the traditional polarimeter. Yatherm Polarimeter can customize up to 300 commonly used measurement methods that are pre-stored in the system. This Instrument can easily access to the internet with the help of IT professionals.
Specifications High-Speed Automatic Polarimeter:
Parameters/Model | POL – 568 | POL – 533 | POL – 532 | POL – 531 |
Measurement mode | Optical rotation, specific rotation, sugar degree and concentration(Custom) | |||
Frequently used methods | 300 | 300 | 30 | 30 |
Light source | Light-emitting diode(LED)(up to 20,000 hours) + precision interference filters | |||
Working wavelength | 589.44nm(Sodium D Spectrum) | |||
Measurement range | ±90°(Rotation) ±259°Z(Sugar) | |||
Minimum reading | 0.0001° | 0.001° | 0.001° | 0.001° |
Accuracy | ±0.003° | ±0.004° | ±0.004° | ±0.006° |
Repeatability | ≤0.002° | ≤0.002° | ≤0.002° | ≤0.002° |
Min. transmission of samples able to be measured | 0.01% | 0.1% | 0.1% | 0.1% |
Response speed | 8°/S | |||
Measurement time | 6 times/26s | |||
Sample temperature control | Yes | No | ||
Control mode | Peltier(Built-in) | No | ||
Control range | 10-50℃ | No | ||
Control accuracy | ±0.2℃ | No | ||
Operation system | WINDOWS | No | No | |
Display | 8-inch color dot matrix touch LCD | |||
Calibration method | Multi-point automatic calibration | |||
Data storage | 16G Database | 10000 sets | 5000 sets | |
GMP Regulations | Qualified | |||
Output communication interface | USB/Keyboard/Mouse/Universal Printer/VGA/Ethernet/Optical wireless card for wireless internet access | USB/Printer/Ethernet | ||
Test tubes | 200mm 100mm(regular) 100mm(temp control) | |||
Optional tubes | 50mm(regular) 200mm(temp control) | 50mm(regular) | ||
Weight(Gross) | 36kg | |||
Dimensions | 860mm 510mm 470mm |
