Endoscope Drying and Storage Cabinet by Yatherm Scientific: The Ultimate Guard for Scopes
When there is a high pressure environment of an endoscopy suite, that reprocessing cycle will not end with disinfection. The most important and in most of the cases, not valued as it should phase is total drying.
The residual humidity is the main reason why there is breeding for biofilm and HAIs ( which stands for healthcare- associated infections). Yatherm Scientific’s Endoscope Drying and Storage Cabinet is manufactured to fulfill this gap which exists between high-level disinfection and sterile storage which is absolutely patient ready.
Advanced Active Drying Technology
Our mechanism works with an Active Channel Purge, which does not exist in the traditional cabinets that function with the health of passive air.
When you connect the endoscope’s inner lumens in a direct manner to our medical-grade air mechanism,we forcefully send HEPA-filtered air which will flow through the microscopic channels.
This makes sure that the “internal tubes” of your scopes are absolutely dry within a small duration of time and at the same time, completely nullifies the danger of microbial invasion.
Sterile Preservation and Storage
Once it becomes dry, the cabinet is turned into a “vault” for sterilization. Our units are specifically made to keep the integrity of your flexible endoscopes absolutely maintained for up to 15 days (which also depends on the model you choose), which allows you in achieving better workflow management and reduction in reprocessing costs.
Technical Specification
| Model |

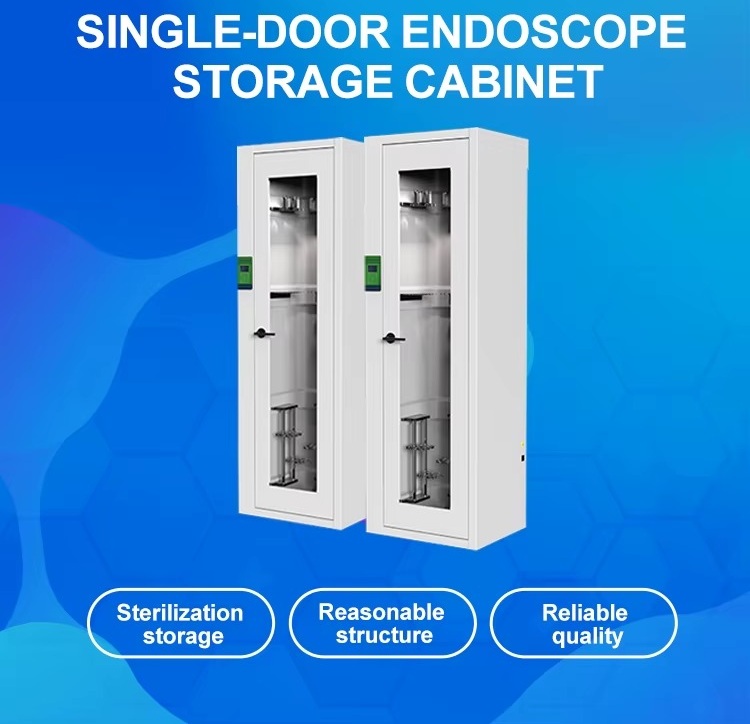

ESDC 1D |

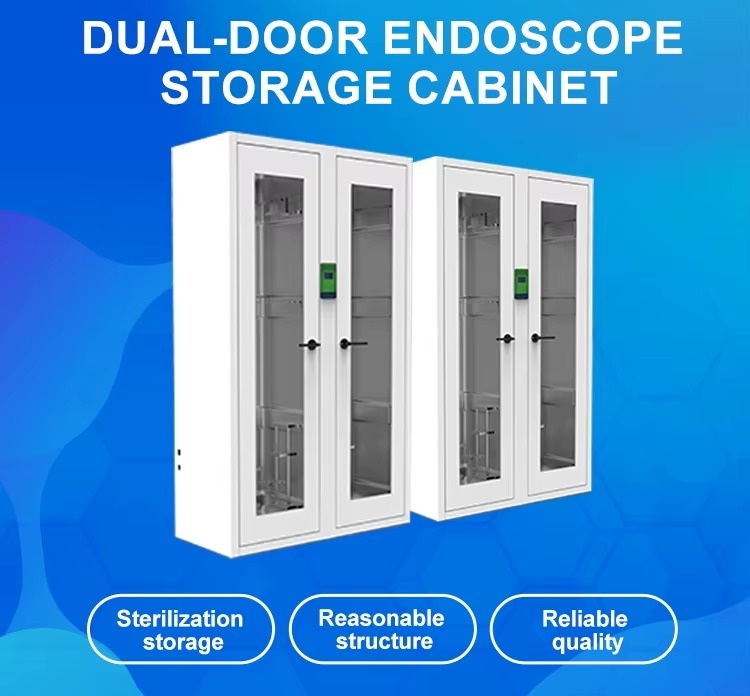

ESDC 2D |
| Chamber Size(W*H*D)mm |
600 x 1950 x 600 |
600 x 1950 x 1200 |
| Capacity |
8 Pcs |
16 Pcs |
| Net Weight (KG) |
150 |
200 |
| Door Type |
Magnetic sealing |
| Power Supply |
220V/50HZ |
| Environment temperature |
5-40℃ |
| Relative humidity |
<90% in 20°C |
| Power of fan (W ) |
20 |
| Rate power (W ) |
100 |
200 |
| Air disinfection mode |
UV circulation wind |
| Filter |
Minipleat HEPA Filter |
Key Performance Features: Endoscope Drying and Storage Cabinet
- Vertical Hanging Hooks: It helps in total prevention of kinking and utilizes gravity to support the drainage of moisture.
- HEPA Filtration (0.3 micron): This offers you a total guarantee that the air which is touching your valuable machine is 99.97% clean.
- UV-C Germicidal Lamps: We equip this wonder machine with integrated ultraviolet lighting which consistently works in disinfecting the whole inner surface of the cabinet.
- Digital Control Interface: A digital control system will make your drying cycles easy to operate and regulate as per your needs and also makes it easy to monitor real time temperature and humidity.
- Capacity Options:. We give you plenty of options to pick from, this wonderful equipment is available In many different versions like 6, 8, 12 etc and if you like we can make a customized one too depending on your specific needs with the right configurations, fitting your facility perfectly.
Why Choose Yatherm?
Manufactured by using a medical high grade stainless steel 304 and tempered glass which is capable of resisting high impact, Yatherm cabinets are crafted for high durability and ease in the sanitization process.
We make sure that your facility stays in total compliance with world level health standards while keeping your most delicate and valuable diagnostic equipment absolutely protected.
Protect your patients. Prolong your scope of life. Partner with Yatherm Scientific.
