Single & Double Door Seed Germination Test Chamber/ Walk-in Seed Germinator Manufacturer in India/ Seed Germination Machine 300 liters, 500 Liters & 800 Liters.
Seed Germinator is a Test chamber designed for the germination of multiple seeds in an artificial way. This Growth Test Chamber provides required temperature, light, and humidity for the germination of seeds of different species. This Chamber is an advantage to the agriculture sector of a Nation.
Yatherm reckoned as a leading Manufacturer of a Seed germinator Test Chambers in India. Yatherm is an ISO and CE certified organization that designs & supplies test chamber followed by international Standards. Our test Chambers are rugged in design with durable outer construction like SS 316/SS-304 or GI sheet with powder coated & inner construction is contamination-free SS 304/SS-316.

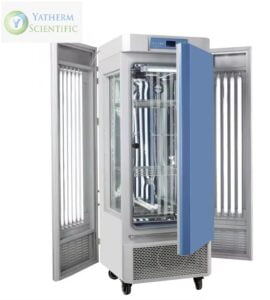

Yatherm Seed germination test Chamber comes in double doors design where one is glass door and the second door is an insulated door with a locking facility for user safety. Inner Chamber consists of SS 304 perforated adjustable trays with an inbuilt water tank for the creation of accurate relative humidity. Yatherm Seed Germinator is equipped with an electronic humidity sensor for accurate and precisely controlled Humidity. The inbuilt water tank is designed with low water cut off, water overflow valve & ISI mark u shape heater for accurate controlled Humidity.
Microprocessor-based Digital PID controller gives an additional feature to the Seed Germination chamber by giving accurate control on temperature and Humidity with illumination fluorescent lamp 24 x 7 timers. Adjustment of lux is also feasible with the help of a customized PID controller. Test Chambers controller is equipped with USB port, RS 232 connectivity & real-time printer facility.
You Demand and We design : Seed Germinator can be used for many applications in Microbiology, Pharmaceutical industry, Botanical gardens, Crop Genetic Engineering, Forestry Research, Agriculture Universities & Plant Pathology.
Advanced Features
- CFC/HCFC free Cooling
- Corrosion-free Construction
- Easy maintenance
- Modern Day Refrigeration System
- Advanced LED Lighting
- Programmable Digital Controller With Timer
- Two types of Germination Cycles
- Single Door/Double Door
- User-Friendly
DETAILED DESCRIPTION

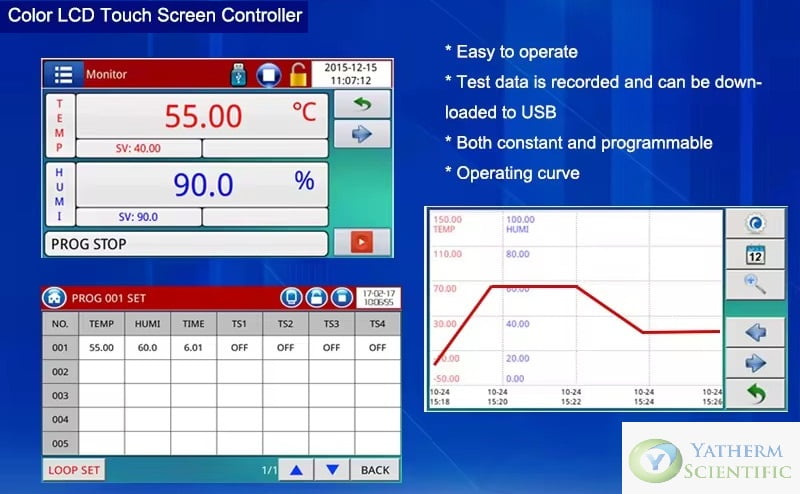

- Control system: when you talk about test chambers accuracy plays an important role in testing your samples. We use a Highly advanced electronic sensor for humidity and imported PT 100 RTD for temperature control. We also offer touch screen PLC with HMI as an optional feature for controlling Seed Germinator which has real-time graph, USB port, and data logging facility, programmable temperature and humidity setting.
- Seed Germination Chamber Construction: We are ISO & CE certified company design equipment with stainless steel interior and exterior is GI powder coated. We make all test chambers in double-walled with woolen insulation and transparent glass for sample view. We use Japnese SS hinges and lock for durability with Neoprene gasket to avoid temperature leakage from the chamber.
- Chambers: Yatherm Seed Germinator designed with rustproof steel with a single and optional dual-chamber where each chamber is equipped with a separate controller, heating facility and water tank for humidity. For Humidification we use ISI marks SS u shape immersion heaters for accurate humidity inside the chamber for the growth of the seeds.
- Air circulation: Air Circulation provides uniform temperature and humidity inside each corner of the chamber for proper growth of placed seeds. We supply high quality imported low noise motor with long life durability. For heating inside the growth chamber, we use fin-type air heaters with a circulatory fan.
- Cooling System: Yatherm Supply reputed brand of the hermetically sealed compressor with R134A gas. We give an environment-friendly CFC/HCFC free long life compressor that comes with two years of warranty and a year guarantee.
- Illumination: Good seed growth mostly depends upon sufficient illumination inside the chamber; therefore, we equip our seed germination machines with high LUX fluorescent LED lights that are controlled through microprocessor controlled cyclic timer. This timer controls the light mode for a week 24 hours a day.
Seed Germination Chamber Specification
| Humidity Range | 30% to 95% RH |
| Controller | Microprocessor-based PID Controller |
| Accuracy | ±1% for Temperature±3% for Humidity |
| Temperature sensor | Imported PT-100 |
| Temperature range | 1°C to 65°C |
| Humidity sensor | Electronic Sensor |
| Humidity system | Ultrasonic Humidifier |
| Light | 150-170 micromole/m2/sec |
| Light Timer | Digitally Controlled 9999 timer |
| Construction | Inner SS with Double-walled construction |
| Exterior | GI Powder coated |
| Door | Insulated door with Gasket and Lock |
| Inner door | Toughened Glass Door |
| Shelves | 2 to 6 |
| Compressor | Kirloskar |
| Safety | Audio / visual alarm for Low and High temperature |
| Wheels | Lockable Caster wheels |
| Power supply | Single Phase |
Seed Germination Chamber Standard Dimensions
| Model | Chamber Dimensions (mm) | Chamber Volume (Liters) | Chamber Volume(Cu. Ft.) |
| Indica 171 | 505 x 415 x 830 | 171 | 6 |
| Indica 280 | 570 x 550 x 900 | 280 | 10 |
| Indica 340 | 650 x 580 x 900 | 340 | 12 |
| Indica 400 | 700 x 640 x 900 | 400 | 14 |
| Indica 580 | 775 x 775 x 970 | 580 | 20 |
| Indica 840 | 825 x 825 x 1200 | 840 | 30 |
Why To Choose Yatherm Scientific
1. We offer Humanized design like CFC free environmental friendly cooling system, Touch Buttons, Multiple parameters display on touch screen, intuitive & clear menu options, Stainless steel 304 grade tank.
2. Test chamber equipped with Intelligent control technology that can simulate the temperature and light illumination according to day and night in the nature. Multistage programmable control can control temperature, Relative Humidity, Illumination light system & time. Temperature ramp rate makes the complex system simple, realistic & fully automatic.
3. Air circulation can be automatically controlled to avoid the seedling of plant in the process of test that increases the circulation wind speed too high.
4. Continuous working with dual compressor makes the seed germination chamber efficient for plant breeding in long time without malfunctioning.
5. Alarm System with Self diagnosis function gives audio & visual buzzer in case of fault occur.
6. Yatherm Models has all the safety features that ensures the smooth operation without any accident or damage.
- Compressor stops working in case you don’t clean the filter.
- Humidity system stops generating humidity inside chamber incase of low water.
- Safety thermostat stops the heating system in case of temperature overshoot.
- Illumination lights are connected with the timer and give time controlled operation.
- High/Low temperature alarm prompts the operator.
7. Yatherm offers optional accessories like Data control system & Light automatic detection and control.
- Data recording with Real time graph
- RS 485 computer connectivity with USB port
- Failure records in alarm system
- Inbuilt Thermal printer
- Domestic plant light monitoring system that control defects.
- Co2 Controlling system : Range 1 to 10%
Fulfill The Standard:
1. GB11158 high temperature test chamber technical conditions.
2. GB10589-89 low temperature test chamber technical conditions.
3. GB10592-89 high and low temperature test chamber technical conditions.
4. GJB150.4 low temperature test
5. GB/T2423.1-2008 Low temperature test chamber test working method.
6. GB/T2423.2-2008 high temperature test chamber test procedure.
7. GB/T2423.3-2006 Test method of damp heat test box.
8. GB/T2423.4-2008 alternating damp heat test operation.
9. GJB150.3 high temperature test method.
10. IEC60068-2-1.1990 Low temperature test chamber test Procedure.
11. IEC60068-2-2.1974 High temperature test chamber test procedure.
