Laboratory Constant Temperature Water Jacketed Co2 Incubator / Cell culture CO2 carbon dioxide incubator manufacturers/ Air Jacket CO2 Incubator Chamber 160L 80L /Bacterial Culture Incubator for Laboratory and clinics/50L 80L UV sterilization Laboratory Air-Jacketed Carbon Dioxide Incubator/Carbon Dioxide Incubator for Bacterial Cultivation and cell culture



Yatherm Scientific CO2 incubators (Cell Culture Incubator or IVF & tissue Incubator) are in reliable air jacketed & water-jacketed technology with effortless control to facilitate the creation of successful cell cultures, provide optimal protection for your cell, culture, bacteria cultures, IVF & tissue culture & media growers with high levels of precision, better insulation performance, safety and ease of use and lower running costs.

Biological contamination is a serious issue in every cell culture, bacteria culture, IVF & tissue culture laboratory. With implications for the reliability of the resulting data, it is vital that the occurrence of contamination is kept to an absolute minimum. The Yatherm Scientific (Cell Culture Incubator) chamber creates standard controlled temperature, humidity & Co2 gas pressure for the preservation of tissue cells, bacteria, IVF & tissue cultures and its role in providing a safe environment, free of any potentially contaminating microorganisms.

Description:

  • Yatherm Scientific Co2 incubators precisely control the temperature and co2 inside the chamber.
  • Advance Models of Co2 Incubators are equipped with dual contamination control technology like High temperature and UV  light

Water Jacketed Chamber/Air Jacketed Chamber

  • Higher capacity Chambers enables better culturing space.
  • Complete SS 304 interior chamber are easy to maintain and provide natural humidity with Humidity Pan.
  • Air circulatory fan gently distributes air throughout the chamber that is designed to provide homogeneous environment.
  • Removable shelves and Humidity pan can be removed for cleaning and maintenance.
  • Co2 incubators has triple walled construction that is good for temperature loss and stability.
  • Co2 Incubators are designed with glass door to minimize the condensation.

Excellent Humidity & Temperature Control:

Yatherm Scientific provides stable Co2 gas level, humidity & temperature control with dual wave infrared Sensors, not influenced by environmental conditions and frequent incubator door openings.

  • With dual wave infrared sensors;
  • Interior in stainless steel and copper alloy for Germicidal Protection;
  • Precise temperature, humidity, and CO2 control.



ISO Class 5 HEPA Filtration Airflow System

  • Yatherm Scientific offers Co2 Incubators for clean room with filtration assembly.
  • Class 100 clean room air created inside the chamber within five minutes after door opening.
  • Chamber is continuously protected from contaminants settling on the surface.
  • HEPA filters clean the air of entire chamber volume every sixty seconds.

In situ Sensors and Probes Designed for Precise Monitoring

  • We offer thermal conductivity Co2 Sensors for long time usage and infrared Co2 Sensor’s for uncertain temperature and humidity
  • Inbuilt two probes of temperature for temperature overshoot safety.
  • Display of Relative humidity only for monitoring humidity value to prevent dry-outs.

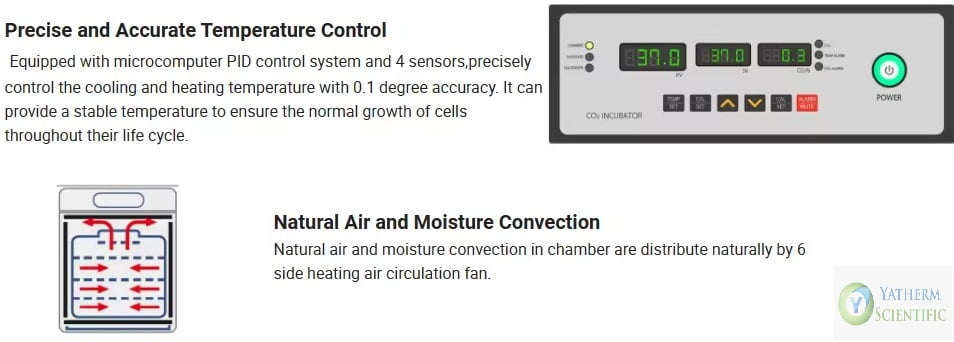

User friendly Microprocessor based PID controller

  • User friendly Controller with alphanumeric LED display.
  • Four sets of inbuilt programs with 5%, 10% and 15% Co2 levels and last with UV sterilization program.
  • High/Low audible and visual temperature alarm system.
  • Temperature and Co2 levels can be adjusted within the offered range.

APPLICATIONS OF CO2 INCUBATOR:

This is a scientific laboratory equipment used for storage of embryos, in-vitro fertilization in IVF center, cell culture & stem cells research in microbiology lab, Genomic and proteomic expression & Culture of transgenic and hypersensitive cells.

FEATURES OF YATHERM SCIENTIFIC CO2 INCUBATOR:

  • Minimum Contamination
  • Effortless Co2 gas level, humidity & temperature control
  • Dual sterilization Cycles – Dry at 145°C & Humidified at 95°C
  • Easy and quick cleaning
  • Low and effortless maintenance
  • Protection with HEPA air filtration
  • Fast recovery after door opening.
  • Dual Wave IR sensor
  • Air flows smoothly around the culture plates, without disturbing the cell culture
  • The pollution control system provides perfect protection

DIMENSIONS MATRIX OF YATHERM SCIENTIFIC CO2 INCUBATOR:

Outer Dimensions (W x D x H) 650 x 700 x 900 mm
Foot Print (W x D) 575 x 530 mm
Chamber Dimensions (W x D x H) 500 x 530 x 625 mm
Shelf Dimensions (W x D) 455 x 475 mm
Shelves Supplied (Standard) 3
Maximum Shelf Capacity 20 KG
Maximum Weight Capacity  57 kg per incubator
Water Pan Dimensions (W x D x H) 200 x 40 x 300 mm
Water Pan Capacity 2 Liters (Maximum)
Volume 160 L
Net Weight 100 kg
TEMPERATURE CONTROL OF YATHERM SCIENTIFIC CO2 INCUBATOR:
Control Range:  Ambient +5°C to 60°C (37°C default)
Set-Point Range: Ambient +5°C to 60°C (37°C default)
Uniformity: ±0.2°C @ 37°C
Accuracy: ± 0.1°C
Recovery: 0.25°C/min. on Average
Display Resolution: 0.1°C
Display Single Display/ Double Display
Temperature Sensor Type: Precision Integrated Circuit

CO2 CONTROL STANDARD OF YATHERM SCIENTIFIC CO2 INCUBATOR:

Range 0.1 to 20% (default 5%) 0.1 to 5% 0.1 to 10%  (0.0 setpoint idles system)
Accuracy: ±0.1%
CO2 Recovery: Up to 5% ±0.2%  -0.5 in 5 minutes Average
CO2 Display Resolution: 0.1%
CO2 Control Logic: Fixed Algorithm Manual Environmental Adaptable
CO2 Sensor Type: Infrared single-source dual wavelength

Note: Operational Gas Pressure range in PSI: 5 to 20

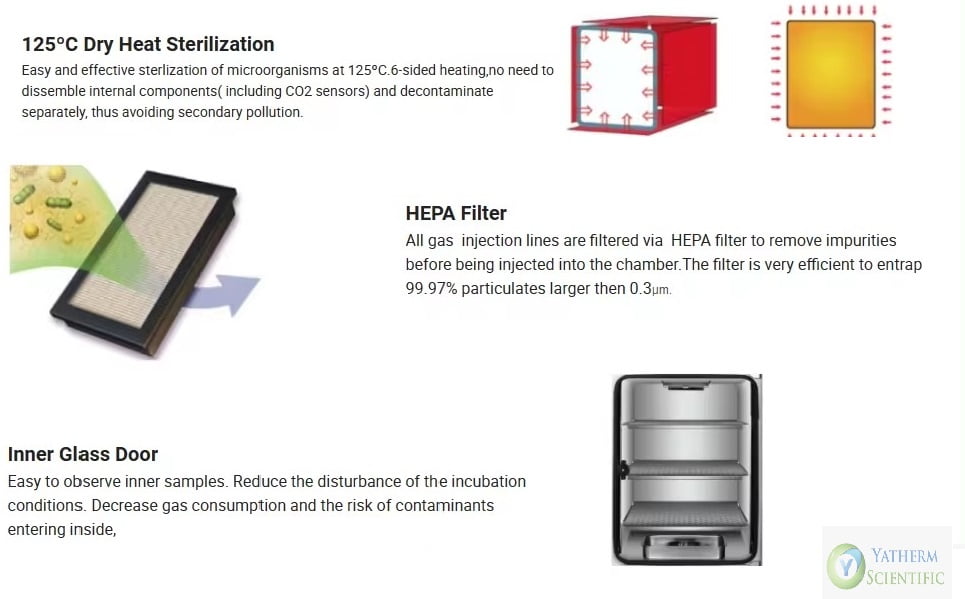

Optional accessories

  1. Dry Heat Sterilization System  – 125 Degree Celsius
  2. Dry Heat Sterilization System – 140 Degree Celsius
  3. Dry Heat Sterilization System – 160 Degree Celsius (High Heat Sterilization System)
  4. Dry Heat Sterilization System – 180 Degree Celsius (High Heat Sterilization System)
  5. Co2 Gas Cylinder
  6. Gas Controller
  7.  HEPA Filter for Cleanroom Co2 Incubator
  8.  PLC with HMI 4 inches & 7 Inches
  9. Inbuilt Orbital shaking platform within the system

How To Work Safely Co2 Incubator

1. Follow the Required room temperature and humidity.

  • Room Temperature – 20°C to 24 °C
  • Room Humidity – 30% – 75%

2. Co2 Incubator used for incubating tissue & cells, Never Load samples with unknown or potentially harmful components.

3.  Never leave the door of the Co2 incubator open during operations, for a long door opening exposes the chamber to normal room contaminants.

4.  Ensure proper spacing between the samples.

5.  There must be adequate ventilation around the unit, Allow proper heat and gas dissipation.

6.  Don’t place the unit near the flammable material or devices that produce excess heat.

7.  Never place the unit directly on the floor to avoid direct contaminants entering the chamber.

8.  Ensure the unit is connected to the proper power source to avoid electrical hazards.

9. Install a two-stage gas pressure regulator on the unit’s gas tank to prevent over-pressurization.

10.  Avoid direct contact with the Co2/N2 gas while working around the unit it may be suffocating.

11. Never use chlorinated tap water for filling the humidity Pan, as chlorine deteriorates the Stainless steel components & it will build up the scale on the humidity pan.

12. Check UV lamp functionality within 1o seconds to ensure minimal exposure to the user from UV radiation.

WHY YATHERM SCIENTIFIC CO2 INCUBATOR?

If you are looking for a high-performance Co2 /Cell Culture Incubator/IVF & tissue Incubator. You’ve arrived at the right place. Yatherm Scientific is a leading manufacturer, supplier & exporter of incubators and the widest range of testing equipment, and various industries and research studies instruments at the best prices in India. Our Incubator is a high-quality and advanced technology biomedical chamber equipment for continuously optimized conditions, unprecedented temperature, and CO2 control in research involving embryos and processing of various cell cultures. With dual-beam IR sensors with a measuring range of 0-20%. THE microprocessor-based PID controller offers advanced monitoring & controls. 6-sided direct heating gives uniform temperature inside SS 304 rust-free chamber. There is a glass window in the Co2 incubator that provides a clear view of cell & tissue culture.

TO LEARN MORE ABOUT CO2 INCUBATORS:

Yatherm Scientific is India’s most trustworthy manufacturer, suppliers and exporters of CO2 Incubator. We can ensure that fulfill all your water jacketed CO2 incubator needs at the most affordable prices when you show your trust in us.

Yatherm Scientific offers experienced professionals and experts to provide detailed information and complete guidance about Co2 Incubator. The quality of service and help is noted in all aspects. You can contact us to know more!
