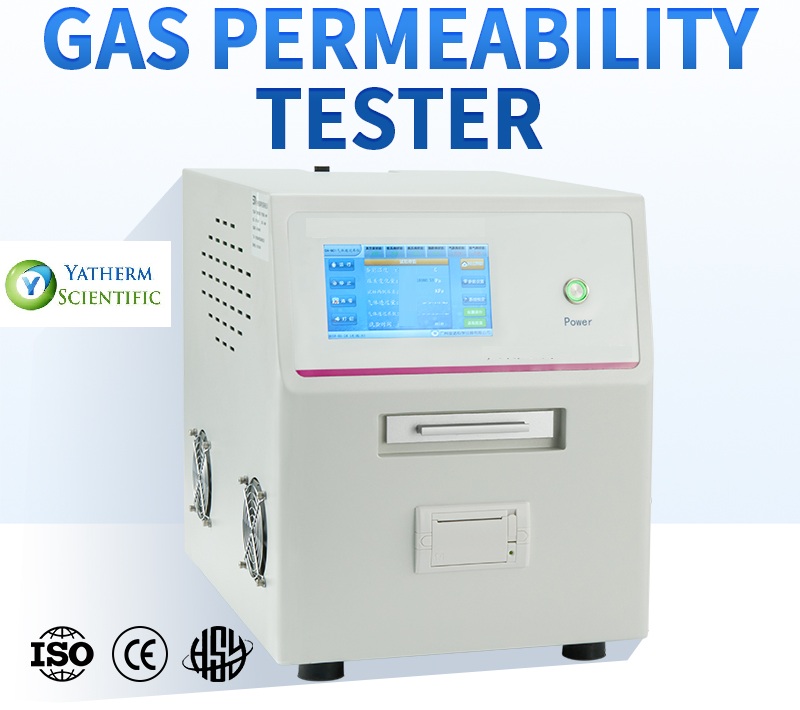

Gas Transmission Rate Tester – Enhance Your Product’s Shelf Life with Our Precise Gas Barrier Testing Solutions
In the fields like pharma industry, packaging, food and drinks, medical equipment etc. keeping the homogeneous nature of the substances against the barrier of gas is extremely important.
Yatherm Scientific’s Gas Transmission Rate Tester is manufactured to provide you exceptional accuracy when it comes to doing measurements of characteristics of the gas barrier of foils, films and other things which are needed for packaging.
We made sure that our equipment is in perfect compliance with ASTM D1434, ISO 15105 and other globally recognized quality norms, offering you trustable information which is guaranteed to help you in increasing shelf life, security and functionality of the product.
Whether there is a need for transmission rate examination of oxygen, nitrogen or carbon dioxide, our hi-tech equipment will produce precise outcomes consistently.
Gas Transmittance Meter Specification
| Item | Technical Parameters |
| Test range | 0.02~50000 cm³/ (m²·24h-0.1Mpa) |
| Resolution | 0.01 Pa |
| Vacuum degree | ＜27 Pa |
| Test Temperature | 23°C |
| Temperature range | 5°C~55°C |
| Temperature accuracy | ±0.5°C |
| Test pressure | 0.1 Mpa |
| Air pressure | ≥0.4 Mpa |
| Test Area | 50.26cm² (Standard but can be customized) |
| Chamber/ Cell | 3 pcs |
| Sample thickness | ≤5mm |
| Humidity range | 0~90%RH (±2%RH) |
| Vacuum connection | 1/8 inch |
| Gas port diameter | 8mm PU tubing |
| Power source | AC 220V/ 50Hz |
Why You Must Buy Yatherm Scientific’s Gas Transmission Rate Tester?
Our dedication for quality is unparalleled and our drive to provide excellent products is unique. We have a strong solid foundation of over 10 years of experience in crafting various kinds of scientific lab related products, our customers know Yatherm Scientific as a name that can be trusted in this particular field who deliver equipment with cutting edge technology at an affordable price.
● State Of The Art Technology: We include the most advanced technology in testing of gas permeability to make sure your products fulfill international norms..
● Easy To Operate Interface: Loaded with user friendly and automatic features that provide less possibility of error and increase effectiveness.
● Endurable and Low Maintenance: Manufactured with top notch materials for long lasting functionality with also negligible upkeep.
● Affordable Solutions: We provide products which have global certification of quality at prices which are easy on your budget, making the best technology available to all the fields.
● Best Support System: Our team of highly skilled members is here for you in all the help you need whether it’s about installing, training or sales related queries.
Yatherm Scientific is a renowned name in fields like medical industry, pharma, labs, research centres, packaging industries etc., where the need for controlling contamination and uniformity of the substances are non-negotiable.
Used of Yatherm’s Gas Transmission Rate Tester
● Food and Drinking Packaging: Makes sure that these items have more shelf life by measuring oxygen and carbon dioxide barrier properties:
● Pharma Industry: Gives validity to the uniformity of medical grade films and blister packs.
● Electronics Industry: For testing humidity and sensitivity towards coatings used for protection.
● R & D Department: Provide help to material scientists in developing advanced barrier films.
Main Features of Our Gas Transmission Rate Tester:
● High Accuracy Sensors: Provides best results which are precise and consistent.
● Testing for Multiple Gases: Provide great compatibility in testing of many gases like oxygen, nitrogen and carbon dioxide.
● Touchscreen Software: User convenience at best with data observation on touchscreen interface.
● Temperature and Moisture Regulation: Create realistic conditions artificially for accurate examination.
.
● Solid Built: Make sure that you experience utmost durability and continuous functionality.
Enhance Your Testing Solutions with Yatherm Scientific
In the hypercompetitive business world, no amount of compromise with quality is allowed. Our Gas Transmission Rate Tester helps the manufacturers in improving the trustability of the product, decrease in waste production, and perfect compliance with international norms. Contact us now, and let’s talk about your testing needs and find the best equipment to fulfill them! Let us give you the partnership you always needed and achieve accuracy,
innovation and unmatched growth together.
Models:
SN-NO1E Gas Transmission Rate Tester (P01)
SN-N103E Gas Transmission Rate Tester (P03)
