Protect Your Products with Our Oxygen Transmission Rate (OTR) Tester – Coulometric Method
In industries which are dealing with issues like damage to the product’s quality and shelf life, specifically from fields like food packaging industries, pharma and medical equipment because of oxygen sensitivity, one must not ignore the importance of measuring oxygen permeability.
Yatherm Scientific’s Coulometric Oxygen Transmission Rate (OTR) Tester offers you a high accuracy and consistency in the outcomes to make sure you fulfill the global quality standards of quality in the industry, even the very strict ones.
Our OTR Tester is in perfect compliance with ASTM D3985, ISO 15105-2, and other international quality standards, which provides quick data with utmost accuracy so the material development, quantity check and compliance reporting is easier.
No matter what you test, whether it’s films, foils or any firm packaging, our wonderful equipment is guaranteed to provide you with unparalleled trustability.
Why Must You Select Yatherm Scientific’s Coulometric OTR Tester?
With the solid experience of making excellent scientific and lab equipment, Yatherm Scientific stands out from its competitors because of continuous delivery of best quality products which are innovative, accurate and affordable. Our Coulometric OTR Tester is manufactured for labs, Research and Development institutions and production facilities which have demand for total preciseness in oxygen barrier testing.
Some of the unique features of Yatherm’s OTR Tester are:
● Hi-tech Coulometric Sensor that give outstanding outcomes consistently without drift
● Easy to control panel with a touchscreen.
● Enhance the performance with multi chamber testing even for high volume laboratories.
● Reduction in testing time with the help of our gas purge system with absolutely no compromise of precision.
● Export the information in many different formats with Compliance-Ready reports needed for audits.
● Experience a wide range of testing which fits even for high barrier and permeable substances (0.01–1000 cc/m²/day).
● Easily simulate right temperature and moisture conditions which helps in examination of true performance.
● Highly durable and low in maintenance, performs very well even in the harshest lab conditions.
Yatherm Scientific is the number one priority of many top package manufacturing companies, pharmaceutical organizations and research and development centres all across the globe. Our mission is to increase the homogeneity of the product through state of the art technology for better testing solutions and all that you get at an affordable price.
Main Areas Where Our OTR Tester is Applicable
● Food and Drinking Packaging: Makes sure that you experience a greater life span of the items by verification of oxygen barrier functionality.
● Pharma Blister Packs: Grants validation in protections of drugs against degradation caused by oxygen.
● Medical Equipment Packing: It helps in comforting maintenance of sterility for surgical equipment and implants.
● Firm and Flexible Packaging Research and Development: It provides support in developing the next generation barrier substances.
OTR Tester Specification
| Item | Technical Parameters |
| Test range | 0.005~1000cm³/ (m²·24h) |
| Resolution | 0.0001cm³/ (m²·24h) |
| Temperature range | 5°C~55°C |
| Temperature accuracy | ±0.05°C |
| Carrier gas flow | 5~100 ml/ min |
| Nitrogen pressure | 0.1 Mpa |
| Oxygen pressure | 0.1 Mpa |
| Air pressure | ≥0.4 Mpa |
| Specimen size | 110mm |
| Test Area | 50.26cm²(Standard but can be customized) |
| Chamber/ Cell | 2 pcs |
| Sample thickness | ≤3mm |
| Humidity range | 0~90%RH (±2%RH) |
| Power | 450W |
| Power source | AC 220V/ 50Hz |
Increase The Quality of Your Product with Our Cutting edge Product
In the market where this big problem of products being ruined by oxygen ingress is making a negative impact on businesses, you can stand out from everyone by using our Coulometric OTR Tester. By doing accurate measurement of oxygen permeability, you will be able to:
● Make your packaging design much better
● Reduction in the waste production
● Fulfil FDA, ISO, and ASTM needs.
● Enhance your brand value and customer delight.
Call us and Book a Quote now! Let our wonderful team of professionals help you with their expertise in selecting the most suitable OTR Tester for your business.
Types of OTR Tester
Instruments that determine the structural integrity and load-bearing capabilities of tires under various weights.
Equipment that simulates real-world movement and stress on otr vehicles and tires, offering crucial insights into performance.
Devices used to assess how tires withstand the constant pressure and conditions they face in the field over extended periods.
Units that replicate diverse climate conditions to evaluate tire behavior across temperature extremes and moisture levels.
Model:

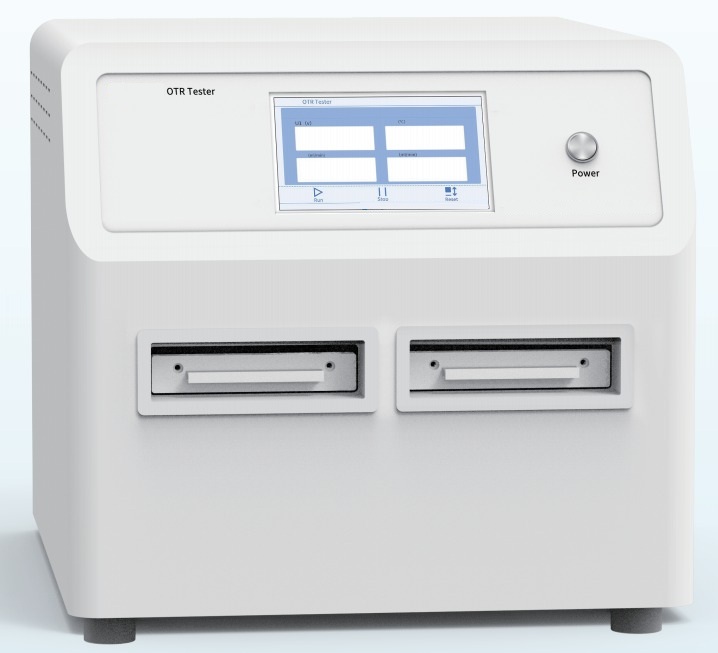

SN-Y02E OTR Tester (Coulometric) (P05)
