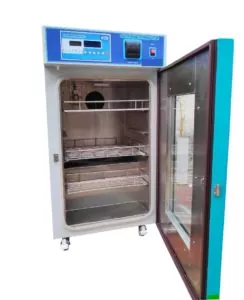

Blanket Warmer Cabinet
FLUID WARMER CABINET /BLANKET WARMING CABINET/COMBINATION WARMING CABINET
Fluid warming cabinet equipment maintains a temperature of 37 degrees Celsius for IV fluids, and blood and 41 degrees Celsius for blanket. Warming cabinets are designed for Heating and storage of liquids, blankets, IV fluids & solutions. Yatherm Scientific manufactures blanket warming cabinets in a compact design, Modular design & combination of two cabinets in one model. Yatherm HOSPI Models are complete warming solutions for IV fluids, Hospital blankets, Dressings, Ozokerite & linen.
We are one of the reputed manufacturers of fluid-warming cabinets in INDIA and are known for their robust design and ability to maintain the temperature 24×7. Most of the reputed hospitals in India are using Yatherm Scientific fluid warming cabinets. Blanket warming cabinets maintain a uniform temperature in the chamber and ensure the proper temperature distribution. Microprocessor-based PID controller offers Intelligent controlling, High and Low-temperature alarms, & smooth continuous operation.
Fluid Warming cabinets also known as:
- Blanket Warming Cabinet
- Heated lotion cabinet
- IV fluid warming cabinet
- Solution warmers
- Combination warming cabinet
- Blood Warming cabinets
Microprocessor Control System (PID controllers/PLC Controllers)
- LED display/Touch Panel Display
- Display Present value of Temperature with Set Value of temperature
- Two Preset Programs for Solution & Blankets
- Door Ajar Alarm
- High/Low-Temperature Alarm system
- Password protection system
- Temperature and time graph
The Yatherm Scientific warmer cabinet saves the Human body from hypothermia because temperature variation of blood products can cause high & low body temperatures. Fluid warmer/blanket warming cabinets manufactured by us undergo rigorous tests and checks in the manufacturing process, providing our customers with functional and satisfactory equipment. Validation Qualification and Factory acceptance tests are performed in the presence of the quality assurance & technical team.
YATHERM SCIENTIFIC’S BLANKET/FLUID WARMER CABINET HIGHLIGHTS:
- Complete Stainless steel structure
- Heavy-loaded Castor wheels
- Accurate Temperature
- Stainless Steel removable shelves
- Modular and Compact Design
- Curved Corners for the safety of users
- Door Lock With keys
- Fast heating inside the chamber
- Door with Glass window
- Mineral wool insulation to avoid heat loss
- Advance Controlling with safety thermostat
MODEL RANGE
- HOSPI 50 (50 liters)
- HOSPI 120 (120 liters)
- HOSPI 190 (190 liters)
- HOSPI 220 (220 Liters)
- HOSPI 350 (350 liters)
- HOSPI 450 (450 liters)
USES OF WARMER CABINET
- Operation theaters,
- Casualty departments
- Maternity Delivery Suits for the quick supply of fluids.
FLUID/BLANKET WARMER CABINET CONSTRUCTION & DESIGN
- Fully Sealed Chambers
- Rounded corners for easy cleaning
- SS 304 outer and inner body
- Mirror view
- Silicon gasket
- SS trays
SAFETY: FLUID/BLANKET WARMER CABINET
- Alarm indicator for Low and high temperature
- Programmable controller with Cut off-feature
- Safety thermostat for over-temperature protection
- Password Protection helps in saving a temperature setting
- Door Lock for the safety of fluids stored
TECHNICAL SPECIFICATIONS
| Temperature range | Ambient+10°C to 65°C |
| Temperature accuracy | ±0.5°C (±0.1°C at 37°C) |
| Temperature controller |
|
| Temperature sensor | PT-100 sensor |
| Inner chamber | Stainless Steel 304 Grade |
| External cabinet | GI sheet with powder-coated |
| Insulation | Mineral wool |
| Door |
|
| Heaters | Finned-type air heater |
| Shelves | Wire mesh steel trays (removable) |
| Air circulation | Local Motor/ Imported Motor (Optional) |
| Standard fittings |
|
| Power supply | 220 Volts 50Hz/60 Hz |
| Optional |
|
STANDARD SIZES / DIMENSIONS
| Model | Dimensions (W x D x H) | Volume (approx.) | No. of shelves |
|---|---|---|---|
| HOSPI 60 S | 400 x 400 x 400 mm | 65 Liters | 2 |
| HOSPI 90 S | 400 x 400 x 600 mm | 96 Liters | 2 |
| HOSPI 120 S | 457 x 457 x 610 mm | 120 Liters | 3 |
| HOSPI 190 S | 457 x 457 x 915 mm | 190 Liters | 3 |
| HOSPI 220 S | 605 x 605 x 605 mm | 220 Liters | 3 |
| HOSPI 350 S | 605 x 605 x 915 mm | 350 Liters | 4 |
| HOSPI 450 S | 605 x 605 x 1220 mm | 450 Liters | 5 |
STANDARD SIZES (Combination Warming Cabinets)
| Model Number | Capacity | Chamber’s Capacity | No. of shelves |
| HOSPI 330 C | 330 Liters | Upper Chamber -165 Liter
Lower Chamber – 165 Liters |
4-5 |
| HOSPI 450 C | 450 Liters | Upper Chamber -200 Liter
Lower Chamber – 250 Liters |
4-6 |
| HOSPI 650 C | 650 Liters | Upper Chamber -250 Liter
Lower Chamber – 400 Liters |
5-7 |
| HOSPI 850 C | 850 Liters | Upper Chamber -350 Liter
Lower Chamber – 500 Liters |
6-8 |
| HOSPI 1000 C | 1000 Liters | Upper Chamber -350 Liter
Lower Chamber – 650 Liters |
7-10 |
Yatherm Scientific has experienced professional and expert teams to provide complete detailed information and complete guidance about Blanket/Fluid Warmer Cabinet. The quality of service and help is noted in all aspects. You can contact us to know more!
WHY YATHERM SCIENTIFIC’S BLANKET/FLUID WARMER CABINET:
Yatherm Scientific provides high-quality fluid warming cabinets and other Hospital equipment at the lowest price in India, Europe, Asia & African Nations. Yatherm Scientific offers assistance which, when requested, installs all of our purchased equipment, conducts training with all users, delivers the user manual for each equipment, and when requested in advance. Yatherm Scientific manufacturer of laboratory, hospital, and industrial equipment, together with our highly experienced team, we modify standard equipment so that it adapts to the needs and meets the requirements of our customers, thus improving their results. All of our equipment is manufactured in order to meet your needs.
