Precision at the Press of a Button: The Automated Culture Media Dispenser by Yatherm Scientific
In the very core of each and every microbiology laboratory, the most important stage which is also the foundation of every discovery, is obviously the “media prep” stage. Yet, manual pouring is done in many labs even though it could be a fatal task.
There are so many risks involved with this task; the three main ones are as follows:
- You experience uneven fillings
- You experience fatigue because of repetitive motion
- The constant possibility of becoming contaminated
Yatherm Scientific’s Automated Culture Media Dispenser is here for you which will help you in transforming your most tedious lab work into its most effective process.
Imagine that you are able to completely fill 500 petri dishes in an absolutely perfect manner. All leveled and stacked with no ounce of spill or any number of bubble formation and that too in less than an hour. This is what's possible with our wonderful machine.
Our automated mechanism uses a high accuracy peristaltic pump technology which will offer you exact volumes (from 1 to 99 ml) that too with clinical precision.
No matter if you are working with Agar, broth, or any other specific sensitive media, our dispenser makes sure that every plate is exactly the same as the last one like a perfect clone.
Why Automation is Your New Lab Partner?
- Sterility without Compromise: Every component in the path of the fluid is absolutely autoclavable. The dispensing zone is in total protection because of an integrated UV-C germicidal lamp, which makes sure that your media always stays pure while it is being poured from flask to the dish.
- Smart Carousel Design: Our rotating “Plug & Play” carousel is able to deal with different types of sizes (ranging from 35mm to 100mm) and also stacks them perfectly and automatically, which will tremendously decrease the effort and time that was being wasted in manual labour.
- Intuitive Touchscreen Control: This helps in programming your volumes that you want to fill, pump, speed, and also the batch size within a few seconds. That ultimately saves up to 50 custom protocols for quick recall especially when there are busy shifts going on.
- Bubble-Free Delivery: Our advanced “anti-drip” and flawless-flow technology helps you in absolute elimination of air bubbles which provides a smooth surface that supports microbial growth.

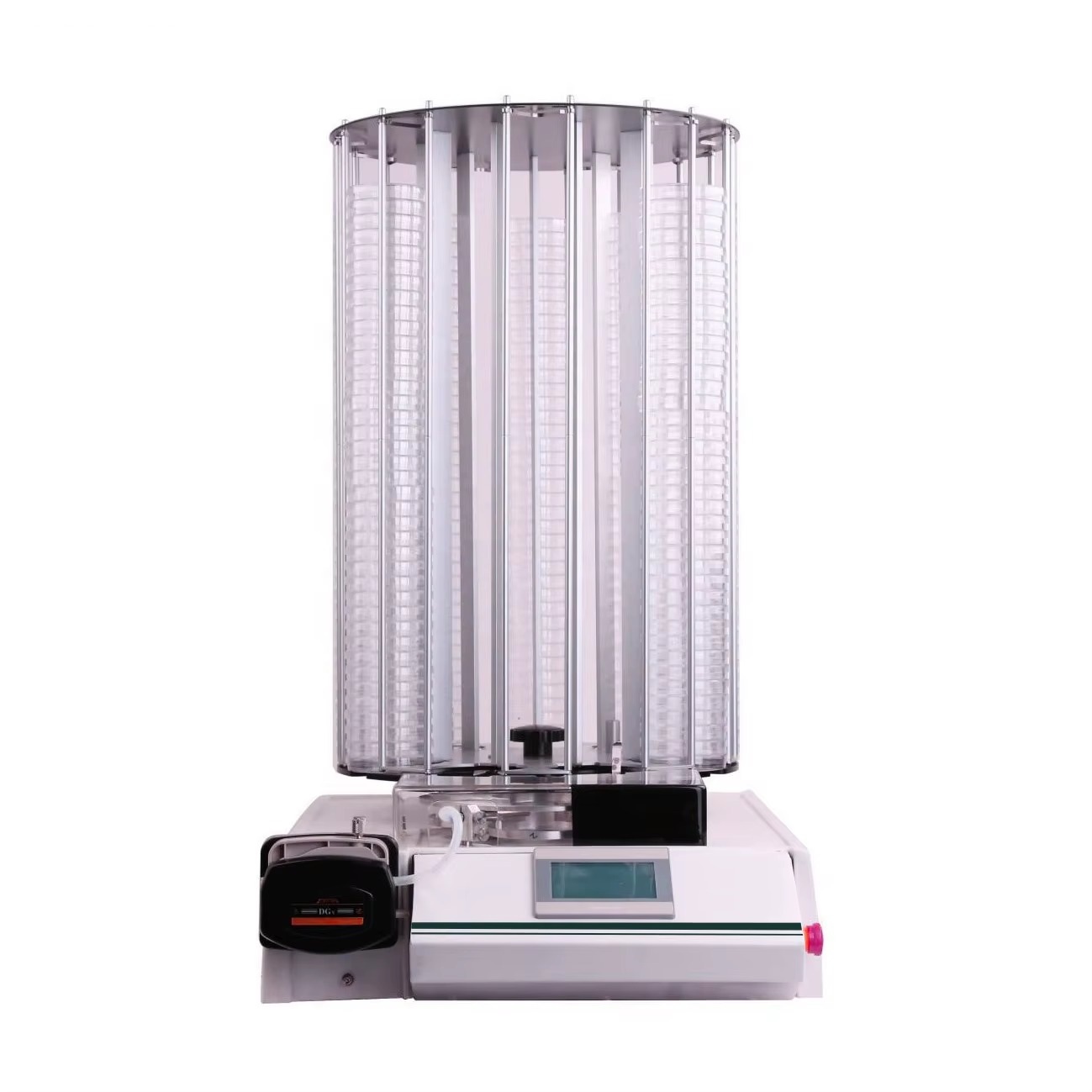

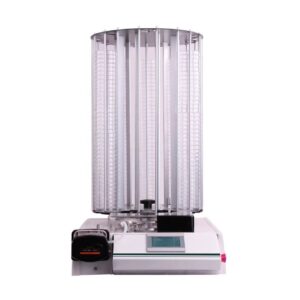

You Demand and We Design - Automated Culture Media Dispenser
Features:
- Parameters setting are simple and intuitive, easy to operate, after the setup process all is automatically.
- Using a peristaltic pump designed to precisely inject liquid medium, the maximum amount of 30mL injection fluid to prevent cross-infection
- Unique design allows easy loading and unloading the dish, support kinds of different specifications dish, quantity can be adjustable, can handle up to 126 Petri dishes
- Dish and the turntable can disassemble for cleaning and disinfection
- With oscillating function allows smoother and more uniform distribution medium
- Only exposed into air 10S of samples, use ultraviolet light disinfection, ensure that the entire process without any other bacteria.
- Dispensing process can be suspended
- Alarm reminder when operation is completed
Technical Specifications:
| Model |
A-Fill 800 |
| Flow rate |
0.2~1120ml/min （25#）, 0.3~1780ml/min （17#） |
| Dispensing accuracy |
About 1%(20ml） |
| Standard dispensing speed |
About 800 pieces/h , double pump system （dispensing volume 20ml, petri dish diameter: 90mm) |
| Petri dish holder |
Standard 40 pieces/grid, 9 grids, up to 280 petri dishes （diameter 90mm）can be placed at one time, and 60mm diameter petri dish holder is optional |
| Dispensing plate |
Standard 6 grids （petri dish diameter 90mm）, optional dispensing plate for 60mm petri dish, dispensing plate and petri dish holder must be used together |
| Power supply |
220V, 50/60 Hz, 4A |
| Ambient temperature |
25℃ |
| Ambient humidity |
＜90% |
| Dimensions (W×D×H） |
640×1000×720mm |
| Weight |
46kg |

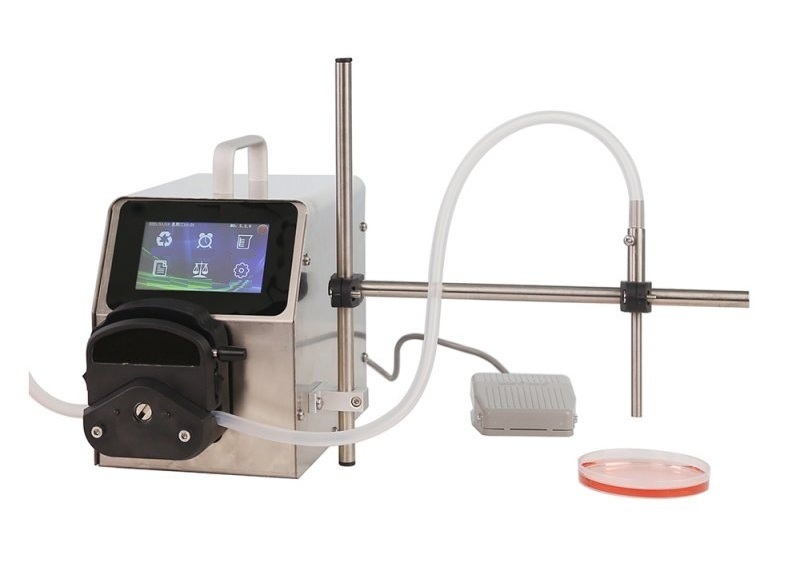

Manual Dispenser Unit
Yatherm offers manual dispenser unit that can be operated with the help of Peristaltic pump & pedal switch. Manual petri dish dispenser unit is very much cost effective, Easy to use, small size and accurate. Touch panel of the Petri dish dispenser unit has the feature of Continuous filling, time filling, quantitative filling, duplicate filling and weighing filling. This unit can dispense all type of culture media that need human intervention during the operation.
Technical Parameter
| Model |
M-Fill 17 |
| Liquid se |
>20 |
| Error |
<+1.0% |
| Single maximum dispensing volume |
3000mL |
| Flow rate |
0.6mL-7000,L/min |
| Dispensing error |
<1% |
| Dispensing pipe inner diameter |
1.6mm,2.4mm,3.1mm,4.8mm,6.4mm,7.9mm(optional) |
| Working mode |
Continuous filling, timed filling, quantitative filling, duplicate filling and weighing filling. |
| Dimensions (W x D x H) |
15.5 x 31 x 24mm |
| Weight |
5.5kg |
| Power supply |
220V |
The Yatherm Reliability
By making this laborious task of pouring automated with the help of our hitech equipment, you allow your scientists to have more time and energy for important matters like analysis and process which helps in achieving better outcomes.
Stop wasting your time. Step into the future of microbiology with Yatherm Scientific!
