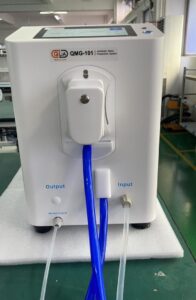

Automatic Media Preparation System: Ensuring Sterility, Homogeneity, and Scale
When it comes to fields like microbiology, biotechnology and quality evaluation in labs, the very basis of trustable outcomes is the culture medium. At Yatherm Scientific, our Automatic Media Preparation System is specifically crafted to make this extremely important time consuming task into a quick, accurate and highly repeatable
automatic workflow.
Accuracy, Sterility, and Batch-to-Batch Consistency
When you do the media preparation manually in the autoclaves, there is a high risk of variation, contamination and degradation occurring to nutrition content because of non-continuous heating. Our automatic system helps in completely removing these risks.
F0-Controlled Sterilization:
● It utilizes a cyclic heating/ cooling system which is equipped with an internal probe for direct observation of the medium temperature.
● It is extremely helpful in F0 heat dose measurement for total cleaning while keeping the heat sensitive part protected.
Perfect Homogeneity:
● The built-in integrated magnetic mixer makes consistent blending all throughout the process of dissolution and cleansing.
● It gives 100% guarantee of a perfectly uniform medium, by completely removing concentration gradients.
Exceptional Throughput:
● High capacities (which ranges from 10 liters to 100 liters).
● It makes the entire preparation cycle automatic i.e. All the steps like weighing, mixing, sterilization, cooling, dispensing is turned into a unified smooth operation, which supports preparation of large volumes in demand.
Smart And Advanced Structure for Modern Laboratories
Yatherm’s media preparatory give total priority to the security, tracking ability, and optimization.
● Digital Programs: These programs are fully customizable and standardized which run effectively with the help of a touchscreen which is convenient in usability.
● Integrated Dispensing: The process transferring of the cleansing stuff through a peristaltic pump module, with the line through sterilization (using steam/UV) to keep it prevented from cross contamination.
● Full Traceability: The built-in automated logging system of important parameters (T, P, time, F_0) offers a total audit trail provided when it comes to compliance for ISO 11133 and GMP/GLP.
● Increased Safety: It is equipped with built-in security features, like excessive heat protection, positive door lock system, and safe cooling system which is hands-free.
Applications across High-Volume Microbiology
The Yatherm Automatic Media Preparation System is an extremely investment for fields like:
Clinical & Diagnostic Laboratories: It is used in making sure that media for infectious illness evaluation is totally standardized.
Food & Beverage Quality Check: It’s very useful when you need to conduct preparation of media quickly for large scale pathogen detection and enumeration.
Biotechnology & Pharmaceutical QC: It is used in production of sterile buffers and media culture, which is used for research purposes and conducting the fermentation process on a large scale.
Features:
- Triple Password protection for user and admin & multiple user account can be created.
- Vacuuming system and Heating circulation system are combined to maintain degassing of the solution.
- Vacuum Pump protection system in terms of water gas separator that separate steam and gas.
- Exhaust and Purging are very convenient and fast in the system.
- Fully Automatic system which completes quantitative liquid inlet , preheating , Purging and quantitative liquid outlet.
Technical Specification
| Model | Media 12 | Media 30 | Media 45 | Media 60 |
| Capacity | 12L | 30L | 45L | 60L |
| Chamber size(Ø×H) | 300×260mm | 300×640mm | 400×480mm | 400×685mm |
| Bucket size(Ø×H) | 260×220mm | 260×600mm | 380×440mm | 380×640mm |
| Design temperature | 147°C | |||
| Sterilization temperature | 70°C-130°C | 90-135℃ | ||
| Dispensing temperature | 25°C-80°C | 35-80℃ | ||
| Water bath temperature | 30°C-80°C | 0-100℃ | ||
| Temperature accuracy | 0.1°C | 0.1°C | ||
| Temperature deviation | 0.5°C | 1°C | ||
| Time Setting Accuracy | 1min | 1min | ||
| Max. allow pressure | 2.5bar | |||
| Design pressure | 3.5bar | |||
| Chamber sterilized water | Deionized water, can automatically enter the water, pressure ≥ 1bar, with high and low liquid level alarm |
|||
| Circulating water | Tap water, pressure≥ 1bar | |||
| Sterilization chamber material | SS304 | |||
| Dispenser port | 3 | 2 | 2 | 2 |
| Feeding port | 1 | 1 | 1 | 1 |
| Stirrer speed | 120, 240rpm quick selectable; 0-240rpm step less adjustable | |||
| Heating power | 3.6kW | 6.6kW | 15kW | |
| Power supply | 220-240V, 50/60 Hz, 20A |
3×380-420V, 50/60Hz, 32A |
3×380-420V, 50/60Hz, 40A |
|
| Dimensions(W×D×H) | 555×700×550mm | 555×700×980mm | 670×790×920mm | 670×790×1120mm |
| Weight | 85 kg | 122kg | 160kg | 180kg |
Working mode：
Our control panel has two standard operation modes for media preparation, & two extra program modes can be selected where you can input your parameters as per requirement:
- STANDARD MODE: In this mode of preparation of standard and highly sensitive culture media, Temperature, Sterilization time & dispensing temperature can be set.
- CHOCOLATE AGAR MODE: This is a special program of simple two steps that permits the preparation of complex & high end media. In first step sterilization process takes place and in second step supplements like blood agar can be added via adding port. After the addition of supplement second heating phase can be conducted.
- WATER BATH MODE: The culture media generally dissolves between 30-80 °C before sterilization process. Glassware’s need to be kept in the sterilizer and the liquid in the glassware gets heated in the bath.
- AUTOCLAVE MODE: When an autoclave mode is selected, This media preparator act as an ordinary steam sterilizer that sterilizes small number of glassware’s.
Media sterilization
Yatherm Media Preparation System ensures the fast and gentle preparation of standard and highly complex media. The heating and cooling of Media Preparation System with uniform stirring minimizes the thermal stress on the culture media and it ensures the nutrition value of culture medium.
High Operational safety
Before Sterilization process, there is a program that automatically checks the sealed door, Gasket of the chamber cover is intact, it avoids the pressure leakage caused by the air leak of the media during the sterilization process. Our Models has triple safety protection system that is equipped with 4 independent temperature/pressure detectors to ensure the safety of users and working environment. Media Preparation System has independent overvoltage safety protection device, Pressure controller system, Overheating safety protection, when electronic system fails mechanical safety features starts working and pressure releases automatically to ensure safety.
Fast Heating
Media Preparation System has high quality ISI mark SS 304 heater that helps in fast media processing. The fast heating system minimizes thermal stress and ensures high fertility of the culture media. Steam Pressure and High temperature-controlled de-aerating ensures the saturated steam in the chamber – that is the basic requirement for complete sterilization.
Reliable Sterilization
The large and strong magnetic stirrer with adjustable speed and reversing rotation direction ensures homogenous media preparation over a wide viscosity range. APt-100 temperature probe and microprocessor control of all relevant process parameters allow reliable and complete sterilization of culture media.
Sterilization Data Record
Data-logger is provided with the machine that includes sterilization time, sterilization temperature , working status, sterilization F0 Value, date and Time etc., to support long-term data storage.
Cleaning and maintenance
Yatherm All models has built-in cleaning program that automatically sterilizes and clean the connecting pipes, and valves. High-temperature water always discharged in the end of the cycle that dissolves and removes the residual medium. This process clean all the SS 304 connecting pipes and parts in the machine and creates a better environment for reuse.
Why Must You Choose Yatherm Scientific?
We are to provide you with a lot more than just equipment. We ensure that you get repeatable and effective results with no compromise to quality at all.
Our Automatic Media Preparation System offers you best performance, effective solution which is absolutely necessary to increase the laboratory workflow and output while maintaining the highest possible marks of media quality.
Make your media workflow fully automatic, completely eliminate the variability and make your technicians free so that they can focus on important works like analysis and not waste time in preparation. Call Yatherm Scientific now!
