Large Multi Tube Vortexer Price/ Laboratory Benchtop vortex Mixer Mixture/Multi-tube Vortexer 500~2500rpm/ Horizontal Circumference Mix Method for Use in test Tubes for Lab
At Yatherm Scientific, we have great understanding of why an effective sample is essential for the productivity and data integrity of a lab. Our Multi-Tube Vortex Mixer is manufactured to fulfill the needs of present day advanced high output laboratories, by providing a powerful, continuous and trustable solution for blending of various mixtures at the same time.
Experience Optimized Functionality and Output
It is built to drastically elevate the performance, effectiveness etc, this mixer is an absolute requirement for labs which are handling the large scale of samples, making sure that the uniformity stays intact all across the vessel.
- Unmatched Capacity: The unit has a lot of different kinds of vessels from microcentrifuge tubes to larger in size centrifuge tubes, which allows you to conduct your processing of over 50 samples at a time depending on the accessory you select.
- Continuous Mixing Action: Our mixer delivers a homogeneous orbital movement at high speed, which surpasses the limitations of manual vortexing, which makes sure you have repeatable results and complete suspension throughout all tubes, which is a crucial factor for quantitative examination.
- Variable Speed Control: It is crafted with an accurate digital control mechanism, which makes you able to adjust the speed as per you need. So the operators will tailor the intensity, no matter if it's gentle shaking for sensitive biological substances or vigorously vortex for pellets which are hard to dissolve.
Yatherm Scientific's equipment are crafted with ergonomic specifications and long lastingness, This mixer is specifically designed in such a way that you experience continuous, heavy-duty usability.
- Solid Built: The in-built cast metal base which is for heavy duty work and its low profile structure makes sure that you have stability and prevent walking around the bench even when the settings are fixed at maximum speed.
- Digital Interface: Our instrument has an advanced intuitive digital display and easy to operate controlling system which makes you regulate the speed and time, making sure that the commands are precise and executed well every time. )
- Universal Compatibility: It's is loaded with a range of foam or rubberized tube racks which are interchangeable, with the availability of universal platforms, which makes you experience 100% in adaptability, when it comes to its applications in various fields like biology, biochemistry, clinical diagnostics and chemistry.

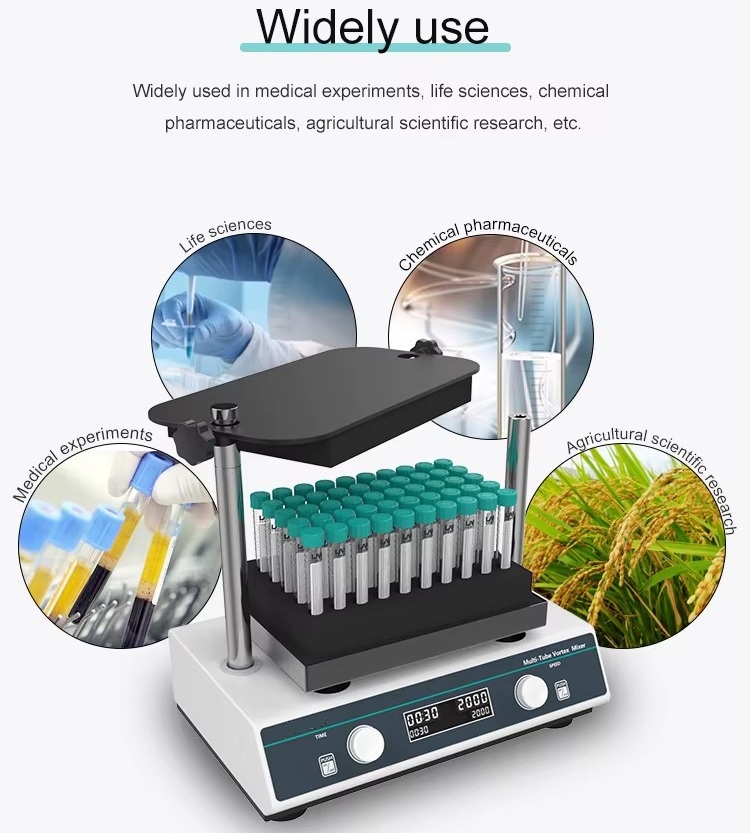

Applications across High-Volume Environments
Yatherm’s Multi-Tube Vortex Mixer is the instrument which is trusted by all of the experts who are looking for speed and accuracy, which is essential in the tasks conducted in labs.
- High-Throughput Screening (HTS)
- DNA/RNA Extraction and Purification
- Enzyme Assays and Kinetic Studies
- Sample Resuspension in Clinical Microbiology
Why Must You Choose Yatherm Scientific?
We are dedicated to making your lab fully equipped with the kind of instruments that will take innovation and effectiveness to the next level. Each of our Multi-Tube Vortex Mixer is regularly checked for quality and performance, you also get our trustable after sales services by our team of experts.
Elevate your products output and make sure you experience top quality repeatably. Pick Yatherm Scientific for vortex mixing accuracy, the kind which you can put your trust in.
The Multi Tube Vortex Mixer 220-240 volt, High precision Mixing for mechanical and chemical cell lysis in microbiology and analytical laboratories.
Features:
>300-2500 rpm with BLDC Motor
> Motion Type: CW/CCW
> pulse mode: programable pulse with selection variable time
> Display 3.4 touch screen with on off button
Product Parameters
| Model |
VMX-200 |
| Speed Range |
500~2500rpm (Precisely adjustable) |
| Amplitude |
4mm |
| Time Setting |
1min~99h59min |
| Max Load |
4.5kg |
| Mixing Method |
Horizontal circumference |
| Capacity |
Replaceable test tube rack |
| Operation Mode |
Super-large capacity, continuous and inching |
| Power Supply |
70W |
| Voltage |
AC110~240V 50/60Hz |
| Size(W×D×H)(mm) |
410x276x432 |
| Shipping Size(W×D×H)(mm) |
510x410x510 |
| N.W./G.W. (kg) |
17/20 |
| Item No |
MV50 Multi tube vortex mixer |
| Input voltage |
AC100-250V/50/60Hz |
| Input power[W] |
60W |
| Speed range |
200~2500r/min. |
| Speed accuracy |
±15rpm |
| Speed Control |
PWM Stepless speed control |
| Operation |
continuous/pulse/inching |
| Programmable parameter storage |
10 built-in stored program numbers |
| Oscillation mode |
Circumferential |
| Orbit |
3.6mm |
| Time function/display |
Timing control:1s-999min；continous：count down； inching ：counting； pulse： Intermittent time/high light LCD |
| Speed adjustable function/display |
Step increase10rpm/All segments |
| Max. loading |
5Kg |
| Max linear acceleration time |
≈15 seconds |
| Max linear deceleration time |
≈13 seconds |
| Safe operation |
Equipped with one-button emergency stop button |
| Dimensions: D×W×H |
416×294×440mm |
| Weight[kg] |
23KG |
| Protection class |
IP20 |
| Allowable ambient temperature/relative humidity |
+5-40℃/80% |
| Interference suppression standard |
EN 61010-1,EN 61010-2-020,EN 61326-1,EN 61010-3-2/A2 |

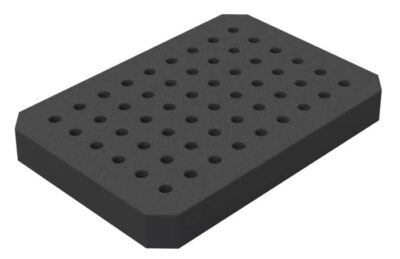

MV50-1
1.5ml/2.2ml×54 holes round hole diameter 10mm

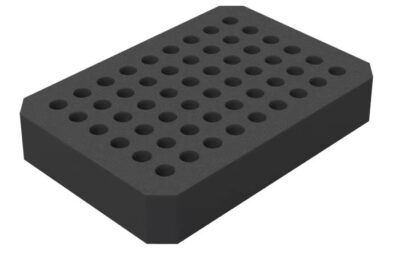

MV50-2
15mlx54wells （hole dia.15mm）

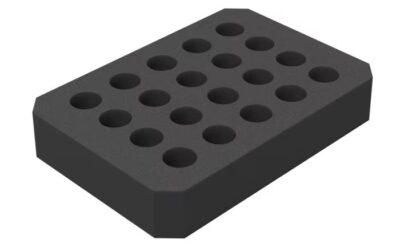

MV50-3
50ml×20 holes round hole diameter 27mm
