Temperature Humidity Test Chambers Manufacturer/ Thermal Humidity Test Chamber 200L, 300L & 500 L/ Accelerated humidity temperature test chamber/ Benchtop Thermal & Humidity Test chamber/ Walk-in Humidity Test chamber 2000L, 3000L & 4500 L/ Climatic Chamber for basic applications / Ultra Low Temperature conditioning Chamber

Humidity Test Chamber gives uniform temperature & humidity with highly precise & controlled accuracy demanded cost-effective testing.  Temperature Humidity test chambers are designed for humidity extremes products like food, cell phones, automobile sensors, pharmaceuticals & Chemicals. Yatherm Test chambers are designed with high quality, compact design, Superior Performance & accurate Results best suited for Research & Development.

We offer benchtop humidity & temperature test chambers  size 50,70, 100 & 150 liters with inbuilt humidity generation tank. Yatherm provides a highly advanced imported maintenance-free electronic humidity sensor that provides accurate humidity. Humidity test chambers work between -70°C to 150 °C with relative humidity from 20% to 95%. Humidity.

Yatherm Stability test chambers are designed with a stainless steel interior and exterior Powder-coated GI sheets. Our test Chambers are equipped with the PID controller for temperature and the Humidity controller for Humidity. We also offer PLC with HMI in 7 inches, 5 inches & 4 inches Display. Our Test chambers are designed with international standards for use in the private and public sectors of India with two years warranty.

Application :

Yatherm Scientific manufactures Temperature humidity test chamber/Stability Test Chamber in customized & tailor-made sizes, temperature ranges with low & high humidity range. Yatherm customized machines with inbuilt heaters & water tanks instead of external sources of water tanks for precise and controlled humidity.

  • Aerospace
  • Automotive
  • Home appliances
  • Scientific research department
  • Electronics
  • Defense
  • Food Industry
  • Drug Industry
  • Pharmaceuticals



Special features :

  • Temperature range: -60 °C to 180 °C
  • Humidity range: 25% to 95 % RH

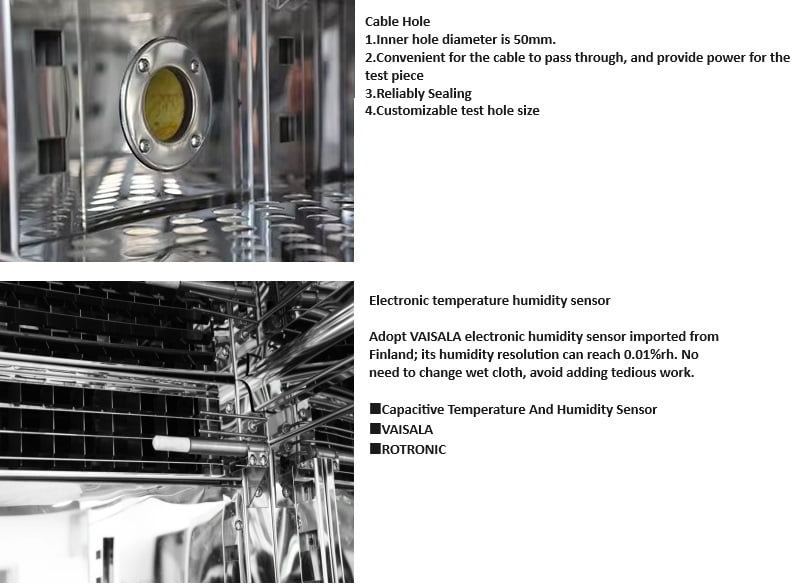

  • Capacitive humidity sensor and vapor humidification
  • Touch screen with password protection
  • SS 304 Inner chamber
  • Real-time data logging with USB port
  • Tight door Sealing with Gasket
  • Corrosion-free Glass
  • SS racks & Validation Port
  • Computer interface: Ethernet
  • Door heating & Hinged door for easy access
  • Sheathed electric heaters for safety and reliability
  • ISO, UL, and CE Approved
  • Hermetically sealed compressors
  • Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm



Temperature / Humidity:

Our machines are designed with customized temperature and humidity range for accurate results.

  • High Humidity with High-temperature Range
  • Low humidity with low-Temperature Range
  • Uniform temperature with Variable Humidity Range
  • Uniform Humidity with Variable temperature Range

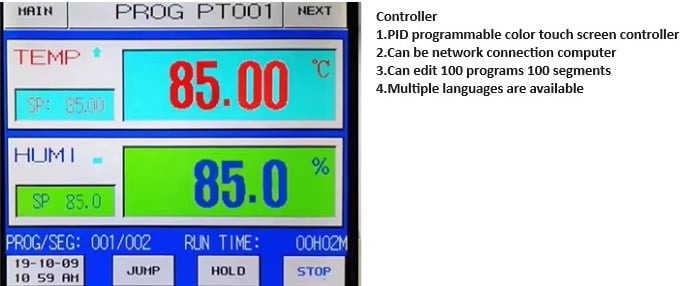

TEST CHAMBER PROGRAMMABLE CONTROLLER
  1. A 7 Inches Colored Touch panel HMI with PLC
  2. Data Logging, Ramp-up Time, soaking time, jump, auto-start, and end
  3. RS-232 interface to connect computer for output
  4. Real time Graph &  Telephonic Monitoring and controlling



Construction:

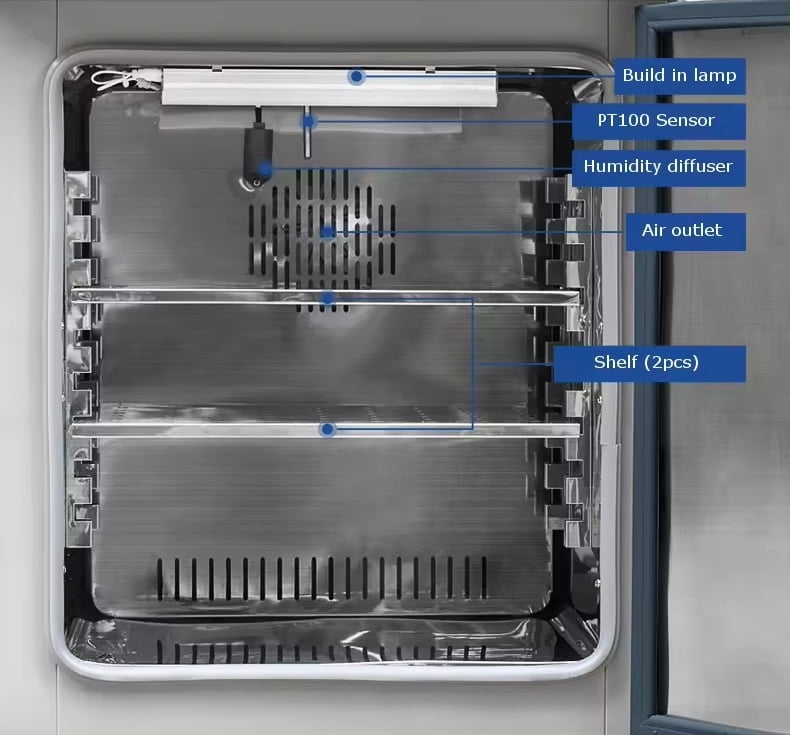

Interior chamber made with complete SS 304 & exterior can be MS powder Coated or rust-free SS 304 for long life. Heavy Duty rugged designed steel wire adjustable shelves with easy maintenance. Outer Door comes with Glass window, Lockable handle, glass wool Insulation, Silicon gasket & heating tube for moisture removal. All benchtop models are mounted on four caster wheels with two lockable wheels for easy mobility.

Heating System:

ISI mark U shape fin-type Air heaters, It provides uniform heating inside the chamber. Circulation fan works with heaters as it is an air heater that cannot work without Fan.

Humidity System:

Inbuilt Stainless steel water tank with water heater used to generate the humidity inside the chamber. Water Heater used in the tank is according to the international standard for proper heating and moisture generation with quality low water cut off.

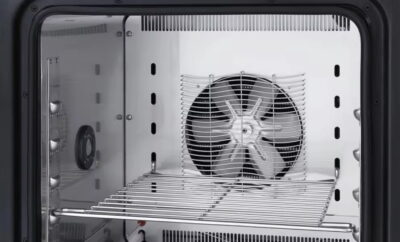

Air-Circulation system: 1/8 hp motor with impeller for uniform temperature & humidity system.

Computer Interface:

RS 232 / RS 485 – for computer connectivity and data storage

USB port – for data transfer

 Safety Features:

Humidity & temperature test chambers are equipped with all types of safety features required to operate the machine. The Thermal test chamber has Circuit Breaker, Over Temperature Protection, Door opening Alarm & High Temperature & low-temperature alarm.

Technical Specifications : Benchtop & Wall Mounted Models

Model No.

TESTO – 150

TESTO – 285 TESTO – 340

TESTO – 500

Internal Volume 150 Liters 260 Liters 350 Liters 500 Liters
No. of Shelves 1/2/3 2/3/4 2/3/4 4/5/6
Chamber Dimension
W x D x H (mm)
500 x 400 x 750 570 x 480 x 950 630 x 530 x 1010 700 x 600 x 1200
Outer Dimension
W x D x M (mm)
600 x 650 x 1300 670 x 730 x 1500 750 x 800 x 1550 900 x 850 x 1800
Temperature Range: 10°C to 65°C  (-70°C to 185°C  – optional)
Accuracy: ± 1°C
Sensor: PT 100
Temperature Control Microprocessor based PID controller (PLC with HMI operated – Optional)
Air circulation Fan Blowers
Humidity Range: 45 % to 95% ( 20 % to 95% – Optional )
Accuracy: ± 2%
Construction
  • Interior : Stainless steel 304/SS 316
  • Exterior: MS Powder coated / SS 304/ SS 316
  • Shelves: Stainless steel 304
  • Insulation: Mineral Wool
  • Wheels: castor lockable Wheels
Lighting Fluorescent Philips lamp
Electrical 220+/- 10% Volts, 50 Hz. Single Phase

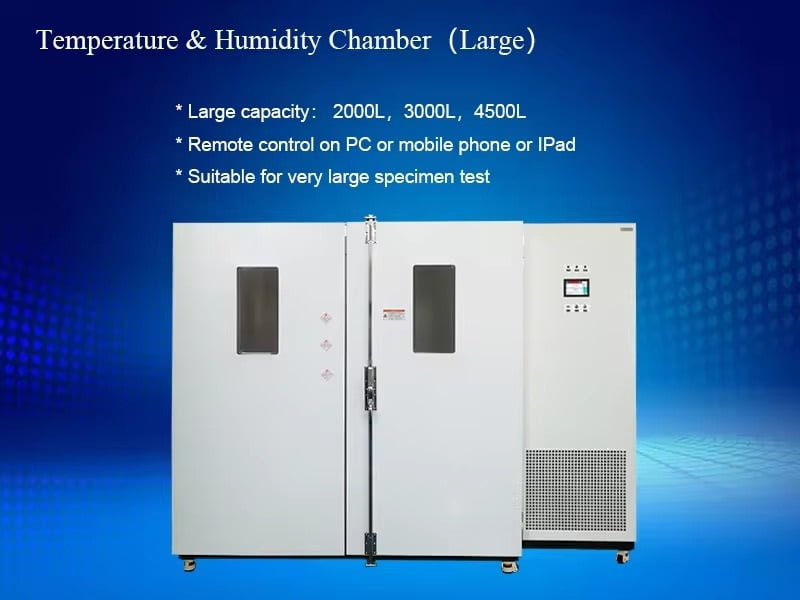

Technical  parameters : Large Size – Walk-in Chambers

Yatherm Model TESTO – 4500 TESTO – 6000 TESTO – 8000 TESTO – 10000
Inner size: WHD(cm) 200*150*150 200*200*150 200*200*200 250*200*200
External size: WHD(cm) 105*165*98 105*175*108 115*190*108 135*200*115
Temperature range (Low: A:+25℃; B:0℃;C:-20℃; D:-40℃;E:-60℃;F:-70℃) (High: +85℃/+100℃/150℃)
Humidity range 20%~95% R.H
Temp analytic accuracy/ uniformity 0.1℃/±2.0℃
Temperature Fluctuation ±0.5℃
Humidity analytic accuracy/ Humidity  control accuracy ±0.1%;±2.5%
Heat; cooling time Heat up about 4.0°C/min ;  Cooling about 1.0°C/min
Inner and outer materials Polyurethane foam composite board (outer wall is the color plate, the inner wall is stainless steel plate) ,Plating heating film insulating glass
Temperature sensor Pt100 Platinic resistor / Wet & dry Sensor
Cooling system Air cooled / (Water Cooled Optional)
Protection devices
  • Overheating protection,
  • leakage protection,
  • dry protection (humidification system) water protection,
  • fan overload protection,
  • compressor overpressure,
  • overload,
  • overcurrent protection,
  • phase sequence protection, fuse
Parts
  • Watching window ,
  • 50mm testing hole ,
  • PL internal bulbs ,
  • Wet and dry bulb gauze ,
  • partition plate ,
  • castorx4,
  • Foot Cupx4
Compressor Original France “Tecumseh” brand or fully enclosed compressor
Controller  Shivaki – Indian Make / (PLC with HMI optional)
Power AC380±5%V/50±0.5Hz/ Three-phase five-wire / Length 2.5m

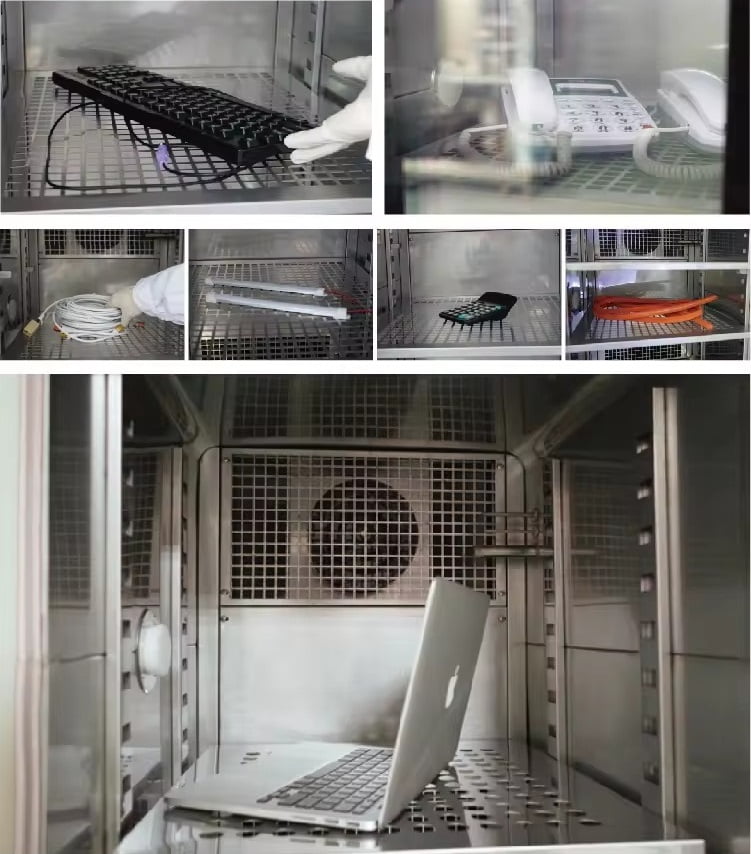

Samples Testing in Yatherm Thermal Humidity Chamber:
