Yatherm Scientific Is A One-Stop Platform to Get Quality Industrial Spray Dryers
Spray dryers are a kind of product that transforms liquid materials into dry powders by spraying the liquid into a hot drying chamber. This process quickly evaporates the moisture, leaving behind fine, dry particles. These
equipment are commonly used in the food, pharmaceutical, and chemical industries for their efficiency and ability to preserve product quality.
At Yatherm Scientific, we know that our customers require high impact and foolproof drying processes to make their work easier. That’s the reason we provide a premium range of products that will enhance your productivity at
work and ultimately help in generating more profit in your business.
Incomparable effectiveness and accuracy:
We manufactured our spray dryers with ground breaking atomization technology that will convert the liquid feed into very small droplets, which will give you maximum surface area to make the drying process faster which
will provide you with the benefits like:
● Reduction of time needed for the processes: Our machine’s super advanced drying technology will save a lot of time for you, which is not possible with the traditional methods of drying.
● Improved quality of the final product: Our wonderful product will generate uniform shape and size of the particle and morphology, which will give you a supreme quality product in the end.
● Minimized thermal degradation: Our precisely controlled safeguards will prevent any type of damage which can happen to your product. During the whole drying process the product will stay intact
with zero chemical and physical changes.
Yatherm Scientific’s spray dryers can be effectively utilized for many types of industries. This versatile usage of our machine is possible because of its capacity to handle various kinds of substances and generate particles with specific features. Here are some examples of industries where our product will create wonders for your business:
● Food and Beverage: Powdered products like spices, instant coffee, milk powder, juice concentrates, seasonings etc. will be produced easily while maintaining their quality top notch.
● Pharmaceuticals: With the help of our advanced technology based spray dryers, you can manufacture various dried powder medicines, controlled release medicines, dry inhalers, probiotics etc. We can assure you that the consistency of the dosage and stability of the product will be fully maintained.
● Chemicals: Produce fine and uniform sized chemical powders for various applications, like pigments, dyes, detergents, catalysts etc. Types of spray dryers we offer:

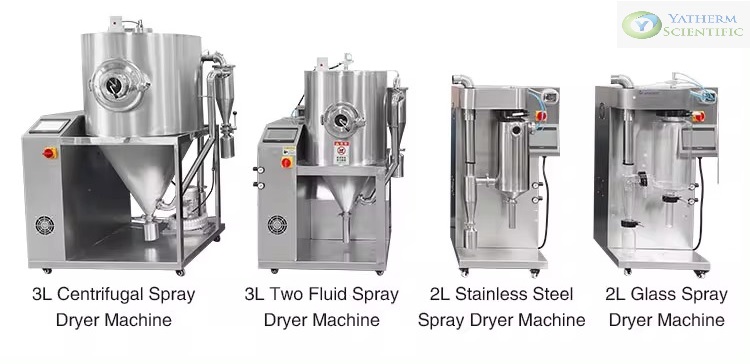

1. Rotary Atomization Spray Dryers:
These are perfect for high temperature resistant feedstock and high volume manufacturing.
2. Pressure Nozzle Atomization Spray Dryers
This technology provides accurate control over size of the particle and is perfect for materials which are thermally labile.
3. Two-Fluid Nozzle Atomization Spray Dryers
This approach is effective for mechanically sensitive materials and provides great control over granule size.
4. Fluidized Bed Spray Dryers
These dryers consist of spray drying along with a fluidized bed, making sure that processing is consistent and drying is soft and gentle on high temperature-sensitive materials.
Technical Specification
| Parameter | YC-015 Mini Spray Dryer |
| Power | 3500W |
| Voltage | 220V,50/60 Hz |
| Atomizer material | SS 316 Stainless steel |
| Evaporating Capacity | 1.5 l/h for water |
| Airflow | 0-330 mᶟ/h |
| max. Input temperature | 250⁰C |
| Heater power | 3000W |
| Temperature precision | ±1⁰C |
| Spray gas | 4.2mᶟ/h, 2-5bar |
| Nozzle jet | 0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available) |
| Nozzle type | Two fluid nozzle |
| Possible particle size range | 1-25µm |
| Mean Residence time | 1.0-1.5 sec |
| Operation mode | Automatic/Manual |
| Max. Sample feed | 2000ml/hr |
| Minimum sample volume | 30ml |
| Spray chamber material | borosilicate glass |
| Cyclone separator material | borosilicate glass |
| Receiving tank material | borosilicate glass |
| Body material | SS304 Stainless steel |
| Seal of cyclone/cylinder | Silicone |
| Compressor | Built-in oilless |
| Sound | <60db |
| Dimensions | 750*650*1200 |
| Weight | 110KG |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| Thermal protection | Blower does not stop until temp <90⁰C |
| Deblocking | Automatic |
| Inert loop (for organic solvents) | Optional |
| Parameter | YC-500 Mini Spray Dryer |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| Voltage | 220V,50-60Hz,10A (Customizable 110V) |
| Min. Outlet Temperature | 80⁰C |
| Capacity | 500-1000ml/h |
| Airflow | 0-330 mᶟ/h |
| Max. Inlet temperature | 200⁰C |
| Heater power | 1500W |
| Temperature precision | ±1⁰C |
| Nozzle jet | 0.7mm standard/(0.5/1.0/1.5/2.0mm available) |
| Nozzle type | Two fluid nozzle |
| Possible particle size range | 1-25µm |
| Mean Residence time | 1.0-1.5 sec |
| Operation mode | Automatic/Manual |
| Minimum sample volume | 20ml |
| Spray chamber material | SS304 Stainless steel |
| Cyclone separator material | SS304 Stainless steel |
| Receiving tank material | SS304 Stainless steel |
| Body material | SS304 Stainless steel |
| Seal of cyclone/cylinder | Silicone |
| Gas type | compressed air(for aqueous) |
| Dimensions | 800*600*900(SPRAY DRYER) |
| Material feeding method | peristaltic pump |
| Thermal protection | Blower does not stop until temp <90⁰C |
| Deblocking | Automatic |
| Inert loop (for solvents) | Optional |
| Parameter | YC-1800 low temperature spray dryer |
| Heating Power | 3000W |
| Voltage | 220V |
| Frequency | 50/60 Hz |
| Evaporating Capacity | 1500ml/h for water |
| Airflow | 0-330 mᶟ/h |
| max. Inlet temperature | 200⁰C |
| Heating power | 3500W |
| Temperature precision | ±1⁰C |
| Compressed air | 4.2mᶟ/h, 2-5bar |
| Nozzle jet | 0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available) |
| Nozzle type | Two fluid nozzle |
| Possible particle size range | 1-25µm |
| Mean Residence time | 1.0-1.5 sec |
| Operation mode | Automatic/Manual |
| Max. Sample feed | 2000ml/hr |
| Minimum sample volume | 30ml |
| Seal of cyclone/cylinder | Silicone |
| Inlet temperature | 105～200⁰C |
| Cyclone separator material | SS-304 Stainless steel |
| Body material | SS-304 Stainless steel |
| Spray chamber material | SS-304 Stainless steel & borosilicate glass |
| collection bottle material | SS-304 Stainless steel |
| Sound | <60db |
| Dimensions | 950*800*1350 |
| Weight | 135KG |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| Thermal protection | Blower does not stop until temp <90⁰C |
| Deblocking | Automatic |
| Atomizer material | SS 316 Stainless steel |
| Parameter | YC-018 Spray Dryer |
| Power | 5500W |
| Voltage | 220V,50/60 Hz |
| Atomizer material | SS 316 Stainless steel |
| Evaporating Capacity | 4 L/H for water |
| Airflow | 0-330 mᶟ/h |
| max. Input temperature | 300⁰C |
| Heater power | 5000W |
| Temperature precision | ±1⁰C |
| Spray gas | 4.2mᶟ/h, 2-5bar |
| Nozzle jet | 0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available) |
| Nozzle type | Two fluid nozzle |
| Possible particle size range | 5-100µm |
| Operation mode | Automatic/Manual |
| Max. Sample feed | 5000ml/hr |
| Minimum sample volume | 100ml |
| Spray chamber material | SS 304 stainless steel |
| Cyclone separator material | SS 304 stainless steel |
| Receiving tank material | SS 304 stainless steel |
| Body material | SS304 Stainless steel |
| Seal of cyclone/cylinder | Silicone |
| Deblocking | Automatic |
| Dimensions | 950*750*1700 |
| Weight | 160KG |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| Inert loop (for organic solvents) | Optional |
Benefits of investing in Yatherm Scientific’s Spray Dryers are:
● Increase in the effectiveness of production: Boost your output without any compromise with the quality of the product and efficiency in functioning. Our Spray dryer’s quick processing durations will allow you to fulfill enhancing demands smoothly.
● Better quality of product: Make your customers happy by delivering best quality products with phenomenal characteristics.
● Less energy consumption: Enjoy significant reduction in the operation cost and minimize the production of waste.
Are you ready to revolutionize your process of drying with our advanced technology? Contact our team now and discuss in detail about your needs and requirements so that we provide you the best suitable product as soon
as possible.
