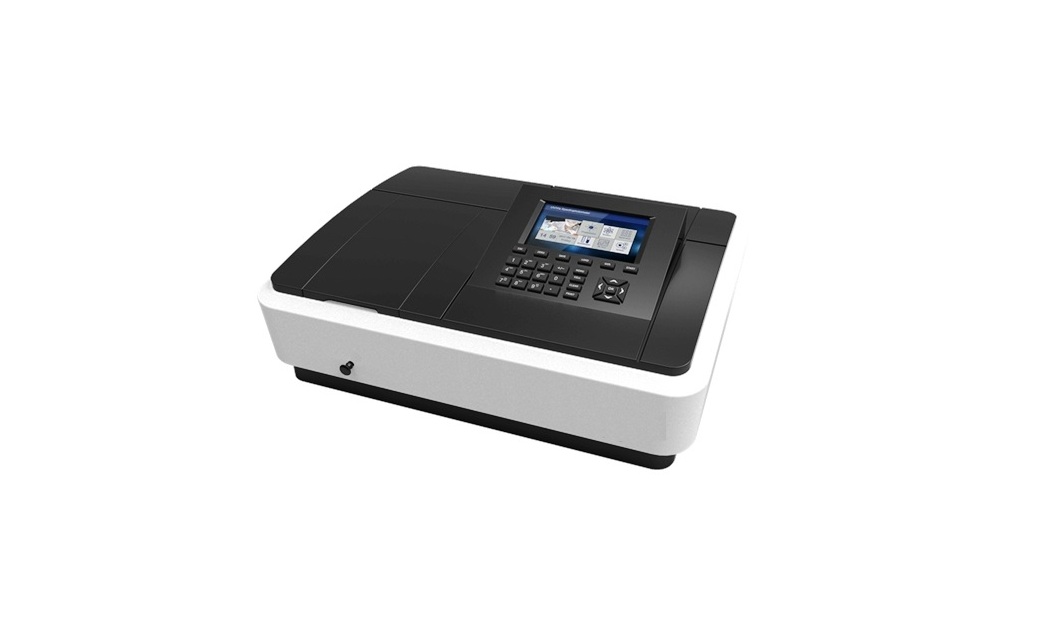

Spectrophotometer
Single beam/Double Beam UV Visible Spectrophotometer /Atomic Absorption Spectrophotometer/ High Performance Microplate Reader UV Visible Spectrophotometer for DNA, RNA, protein analysis/ FTIR Spectrometer Price With ATR spectrophotometer
Yatherm Scientific manufacturing, supplying, importing, and exporting a wide range of Spectrophotometers include Double Beam UV-VIS, Single-Beam UV-VIS Spectrophotometers, and Visible Range Spectrophotometers. We are a leading supplier of all kinds of a spectrophotometer at a reasonable price in India.
- “Yatherm Scientific” provides a wide range of sophisticated, Visible Spectrophotometer that is designed from high-quality raw materials. Our Visible Spectroscopy is in high demand in the global market for high performance and accurate results. Visible Spectrophotometers are very useful instruments for chemical, pharmaceutical, agricultural, biotechnological labs, hospitals, engineering & medical colleges, universities & research institutions.
- “Yatherm Scientific” supply a highly advanced and comprehensive range of UV-VIS Spectrophotometers to suit the customer’s pocket and requirements. The wavelength range is from 190.0 to 1000.0 nm, with a resolution of 0.1 nm is obtained by a microprocessor-controlled stepper motor. A monochromatic using Czerny-Turner mounting technique with 1200 line/mm grating is used. Single Beam UV-VIS Spectrophotometers are widely extremely useful in chemical, pharmaceutical, agricultural, biotechnological labs, hospitals, engineering & medical colleges, universities & research institutions.
- “Yatherm Scientific” offers Double Beam UV-VIS Spectrophotometers are highly accurate and easy to operate instruments for spectrophotometric analysis of any concentration. Double Beam UV-VIS Spectrophotometer is an extremely useful chemical, pharmaceutical, agricultural, biotechnological labs, hospitals, engineering & medical colleges, universities & research institutions.
Application and Standard:
| Category | Test items | Testing standards |
| Food coloring agent | Nitrates and Nitrite | GB/T 5009.33 |
| Food contact materials | Sulphur dioxide | GB 31604.32 |
| Food bleach | Nitrite | GB/T 5009.34 |
| Ambient air | Sulphur dioxide | HJ 483 |
| Pasta food | Aluminum | GB/T 5009.182 |
| The room needs air | Formaldehyde | GB 50325 |
| Water Quality Analysis | Total nitrogen | HJ 636 |
Product Parameters
|
Model
|
YS – UV1000G
|
YS – V1000G
|
|
Optical System
|
Single beam, grating 1200L/mm
|
|
|
Wavelength
|
200-1020nm
|
325-1020nm
|
|
Spectral Bandwidth
|
4nm
|
|
|
Wavelength Accuracy
|
±1.5nm
|
|
|
Wavelength Repeatability
|
≤0.2nm
|
|
|
Photometric Accuracy
|
+0.002Abs (0-0.5Abs), ±0.004A (0.5-1.0Abs), ±0.4%T (0-100%T)
|
|
|
Photometric Repeatability
|
0.001Abs(0-0.5Abs), 0.002Abs(0.5-1.0Abs), <0.2%T (0-100%T)
|
|
|
Stray Light
|
≤0.1%T(220nm,360nm)
|
|
|
Stability
|
±0.001A/h(500nm)
|
|
|
Photometric Range
|
-0.301-3.0A 0-200%T 0-9999C
|
|
|
Photometric Mode
|
A T C F
|
|
|
Wavelength Setting
|
Automatic
|
|
|
Output
|
RS232 printer data output, USB-B connection
|
|
|
Detector
|
Imported silicon photodiode
|
|
|
Light Source
|
Deuterium lamp, tungsten lamp
|
Tungsten lamp
|
|
Standard Accessories
|
4*glass cuvette, 2*quartz cuvette
|
4*glass cuvette
|
|
Power Supply
|
100-220V 50/60Hz
|
|
|
External Size
|
466*384*201mm
|
|
|
Net Weight
|
11.6kg
|
|
|
Packing Size
|
590*480*315mm
|
|
|
Gross Weight
|
14.4kg
|
14kg
|
Atomic Absorption Spectrophotometer
Higher Reliability
- Yatherm Scientific has rich experience in AAS R&D equipment manufacturing
- Aberration eliminated C-T type monochromator with stable performance
- High quality imported modular electronic circuits with user friendly operation and maintenance
- Gas and liquid separator with gas filter offers the uniqueness to work in highly humid environment.
Higher Safety
- Multiple safety features like interlocking and prompt information display makes this device highly safe.
- Humanized advance program calculates the lamp current in real time that protects the hollow cathode.
- Advance and Modular gas supply system has less number of fault rate.
- Highly accurate mass flow controller with flame controlling system regulates the flow of fuel precisely. Temperature controller save guard the complete air circuit breaker from abnormal rise of temperature.
Fewer Faults
- We use high quality imported PMT as the detector that decreases the chance of fault.
- Inbuilt system of spraying chamber provides the stability to the system in case of temperature rise and strong acids.
- Our data transmission technology is reliable as we use bussing technique in communication system.
SPECIFICATIONS:
|
Main Specification |
Wavelength range |
190-900nm |
| Wavelength accuracy | Better than ±0.20nm | |
| Baseline stability | 0.006A/30min |
| Light Source System | Lamp turret | Motorized 8-lamp turret ( Two high performance HCLs can be mounted on the turret to increase the sensitivity in flame analysis.); |
| Lamp current adjustment | 0~15mA | |
| Optical System | Monochromator | Single beam, Czerny-Turner design grating monochromator |
| Grating | 1800 l/mm | |
| Focal length | 277mm | |
| Blazed Wavelength | 250nm | |
| Spectral Bandwidth | 0.1nm, 0.2nm, 0.4nm, 0.8nm,1.6nm, auto-switch over | |
| Flame Atomizer | Burner | 10cm single slot all-titanium burner |
| Spray chamber | Corrosion resistant all-plastic spray chamber | |
| Nebulizer | High efficiency glass nebulizer with metal sleeve, sucking up rate:6-7ml/min | |
| Emission burner provided | ||
| Detection and Data Processing System | Detector | R928 Photomultiplier with high sensitivity and wide spectral range. |
| Software | Under Windows operating system | |
| Analytical method | Working curve auto-fitting; standard addition method; automatic sensitivity correction, automatic calculation of concentration and content. | |
| Repeat times | 1-99 times, automatic calculation of mean value, standard deviation and relative standard deviation. | |
| Multi-task Functions | Sequential measurement for multi-element determination to the same sample | |
| Condition reading | With model function | |
| Result printing | Measurement data and final analytical report printout, editing with Excel |
Dual Beam UV Spectrophotometer
- High excellent optical system design with holographic sparkling grating assures that the instrument has lower stray light.
- Control panel operating software has advance and unique analysis capabilities.
- Dual beam UV spectrophotometers are designed in eight pool structure.
- User friendly structure and easy replacement design helps in replacing the accessories for different analysis.
- Easy to replace light source of the spectrophotometer.
- Open type light source room design.
- Low noise with high degree of stability
- Dual beam measuring system
- Fully Automatic controlling
- Main components are of high quality that ensures the safety and reliability.
Technical Specifications:
|
Operating mode
|
host operation or PC operation, including online software, can do stand-alone scanning
|
|
Wavelength range
|
190 – 1100 nm
|
|
Wavelength Accuracy
|
± 0.1 nm (D2 656.1 nm), ± 0.3 nm (full wavelength range)
|
|
Wavelength repeatability
|
≤ 0.1nm
|
|
Spectral bandwidth
|
1nm
|
|
Optical system
|
double beam, CT type optical path; 1200 lines / mm laser holographic diffraction grating
|
|
Work mode
|
T, A, C, E
|
|
Photometric range
|
-4 – 4A; 0-200% T
|
|
Photometric accuracy
|
± 0.002A (0-0.5A), ± 0.004A (0.5-1A), ± 0.2% T (0 ~ 100% T)
|
|
Photometric repeatability
|
± 0.001A (0-0.5A), ± 0.002A (0.5-1A), ± 0.1% T (0 ~ 100% T)
|
|
Stray light
|
≤ 0.02% T
|
|
Baseline flatness
|
± 0.0004A
|
|
Stability
|
± 0.0004A (at 500nm)
|
|
Photometric noise
|
± 0.0004A
|
|
Data output
|
320 × 240 LCD graphics display, optional USB 2.0 printer or U disk data output, USB connecting to software
|
|
Light source
|
imported long life tungsten lamp, deuterium lamp
|
|
Dimensions
|
670x 560×260 mm
|
|
Weight
|
24kg
|
High Performance Microplate Reader / UV Visible micro-plate Spectrophotometer
These UV/VIS spectrophotometers are equipped with wavelength selection method which is a perfect tool for the applications of DNA, RNA & protein analysis. It is fully automatic and works with very less user effort.
- Linear Shaking Motion
- 96 Wells plate to 384 Wells plate measurement
- 7 inches or 10 inches touch panel
- PC Software analyze, record and validate.
- USB data port with Wi-Fi system
- Wavelength selection mode
- Advance Monochromator System
- A broad wavelength range with the UV area
- Pathlength correction with fast spectral scanning
Technical Specifications:
|
Model
|
NANO 100
|
NANO 300
|
NANO 400A
|
NANO 500
|
|
Wavelength Range
|
200-800nm
|
200-800nm
|
260nm, 280nm
|
200-800nm
|
|
Minimum Sample Size
|
0.5-2.0uL
|
0.5-2.0uL
|
1-2.0uL
|
0.5-2.0uL
|
|
Path Length
|
0.2mm
1.0mm
|
0.2mm
1.0mm
|
0.5mm
|
0.05mm
0.3mm
1.0mm
|
|
Light Source
|
Xenon flash lamp
|
Xenon flash lamp
|
UVLED
|
Xenon flash lamp
|
|
Detector Type
|
3864-Linear CCD array
|
2048-Linear CCD array
|
UV-sillion photocell
|
2048-Linear CCD array
|
|
Wavelength Accuracy
|
1nm
|
1nm
|
—
|
1nm
|
|
Spectral Resolution
|
≦3nm (FWHM at Hg546 nm)
546nm Hg546 HGHGHHHhGhghhgHg546 Hg546nm)
≧3nm (FWHM at Hg546nm
|
—
|
≦3nm(FWHM at Hg546nm)
Hg546om]
|
|
|
Absorbance Precision
|
0.003Abs
|
0.003Abs
|
0.005Abs
|
0.003Abs
|
|
Absorbance Accuracy
|
1%(7.332Abs at 260nm)
1% (7.332Abs at 260nm)
1% (7.332Abs at 260nm)
1%(7.332Abs at 260nm)
|
|||
|
Absorbance Range
|
0.02 – 90A
|
0.02 – 100A
|
0.02 – 80A
|
0.02 – 100A
|
|
Detects Nucleic Acid up to
|
2-4500ng/ul (dsDNA)
|
2-5000ng/ul (dsDNA)
|
10-4000ng/ul (dsDNA)
|
2-15000ng/ul (dsDNA)
|
|
Measurement Time
|
<8S
|
<5S
|
<8S
|
<6S
|
|
Data Output
|
Connect PC
|
USB
|
USB
|
USB
|
|
Operating Voltage
|
24V DC
|
24V DC
|
24V DC
|
24V DC
|
|
Operating Power
|
20W
|
25W
|
25W
|
25W
|
|
Standby Power
|
5W
|
5W
|
5W
|
5W
|
|
Packing Size (W x D x H)
|
500 x 495 x 310mm
|
500 x 495 x 310mm
|
500 x 495 x 310mm
|
500 x 495 x 310mm
|
|
Gross Weight
|
9.2kg
|
9.2kg
|
9.2kg
|
9.2kg
|
|
Software Compatibility
|
WinXP, Win7. Win8
|
Android System
|
Android System
|
Android System
|
|
Fluorescent detection
|
|
|
|
|
|
Sensitivity
|
—
|
—
|
dsDNA: 0.5pg/ul
|
—
|
|
Linear Dynamic Range
|
—
|
—
|
R2>0.995
|
—
|
|
Repeatability
|
—
|
—
|
<1.5%
|
—
|
|
OD600nm Measurement
|
||||
|
Light Source
|
—
|
LED
|
LED
|
LED
|
|
Wavelength Range
|
—
|
600±8nm
|
600±8nm
|
600±8nm
|
|
Absorbance Range
|
—
|
0-4A
|
0-4A
|
CMA
|
We manufacture & offer customized and standard instruments for our customers at the best price in India and Worldwide. We give a year warranty for all instruments with ten years of spare parts availability for better customer relationships.
