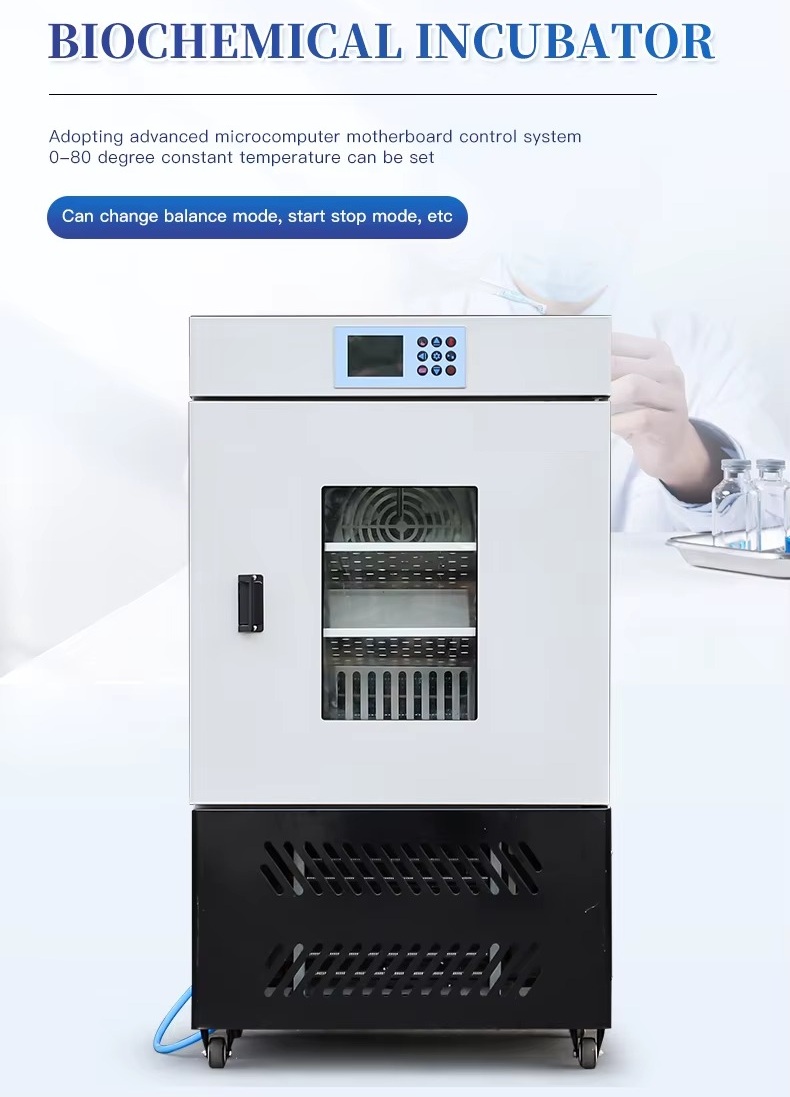

Biological oxygen demand incubator/ Cooling Incubator/ BOD Refrigerated Incubator/ Biochemical Incubator (BOD Incubator Manufacturers, Supplier & Exporter in India)
The BOD Incubator also known as Laboratory Incubator/Bacteriological Incubator has in its acronym the following meaning; Biochemical Oxygen Demand and as its name suggests, this equipment is used to control the oxygen consumed by microorganisms while acting on the deterioration of matter. The BOD Incubator is developed for laboratories that need incubation temperature control, water quality control in relation to oxygen, pollution levels, and improvement of biology studies on insects, among others. The BOD Incubator is originally designed to incubate long-term tests of BOD (Biochemical Oxygen Demand). Due to its reliability and flexibility, it is used today in the most diverse applications: plant growth, germination, create and maintain microbiological or cell cultures, BOD, storage of reagents, and so on.
Often known as low-temperature incubators, our appropriately constructed BOD Incubator units are made of corrosion resistance stainless steel. BOD Incubators with humidity control were developed for demands that require exact temperature control. Used in pharmaceutical, food, chemical, clinical laboratories, microbiological, research centers, universities, and stability of chemical and biological products among the most varied applications.
BOD Incubators size capacity flexibility from 96 to 1000 liters. Digital micro-processed controller with PID system, has 4-digit LED display with 0.1°C resolution for indication of process temperature (PV) and Set point. PT 100 temperature sensor. The programmable timer of 9999 minutes. Temperature from -10 to 60°C (Other temperatures on request). Heating through stainless steel armored tubular resistance, easy to replace. Cooling through CFC-free ecological system and with the sealed unit. Thermal insulation in expanded polyurethane on all walls, including the door with a glass window, ensures little loss of temperature to the external environment.
Automatic lighting when opening the door. Inner chamber in stainless steel 304 grade, pre-molded that prevents corrosion. External cabinet in GI powder coated and anti-corrosive treatment and smooth epoxy finishing (painting). Mounted on leveling feet allows for easy product leveling and movement. Blind door with magnetic seal. Internal water reservoir that provides relative humidity through natural evaporation. Overheating protection system through a factory-set hydraulic thermostat. Polycarbonate front panel, with controls and function indicator lamps. Optionally, they can be supplied with internal sockets, thermometers, and other accessories upon request.
BOD INCUBATOR FEATURES: Our Cooling incubator has standard internal power socket, Full-view Inner glass door, Precision temperature Control, CFC Free Cooling Systems, Caster wheels for easy mobility, Forced air circulation, Round angle design of mirror stainless steel chamber, High Durability And Easy Cleaning, Interior LED light with door switch & Convenience Internal power socket in chamber let operator use auxiliary equipment.
TECHNICAL SPECIFICATIONS
| Temperature Range | 4°C to 70°C (Heating & Cooling Both) |
| Temperature Accuracy | ± 0.2°C |
| Temperature Uniformity | ± 1°C |
| Temperature sensor | PT-100 |
| Temperature Controller | Digital PID controller with SV & PV |
| Insulation | PUF Insulation |
| Inner Chamber Construction | SS 304 |
| Outer Body | GI powder Coated |
| Door | Insulated Door With Glass Window |
| Shelves | Removable Perforated SS trays |
| Interior illumination | White LED Light |
| Heating Element | U shape Air heaters with circulation Fan |
| Cooling System | HCFC/CFC Free Compressor |
| Safety | Temperature High / Low alarm |
| Power supply | 220 Volts +/- 10% at 50 Hz frequency |
Dimension Matrix
| Model | Dimensions (w x D x H) | Volume | No. of Trays |
| BOD 120 | 450 x 450 x 600 mm | 120 | 2 |
| BOD 216 | 600 x 600 x 600 mm | 216 | 2 |
| BOD 320 | 600 x 600 x 900 mm | 320 | 3 |
| BOD 450 | 600 x 600 x 1250 mm | 450 | 4 |
| BOD 600 | 600 x 800 x 1250 mm | 600 | 5 |
| BOD 800 | 800 x 800 x 1250 mm | 800 | 5 |
| BOD 1000 | 800 x 800 x 1550 mm | 1000 | 5 |
BOD incubator has many application in the field of research and development, plant Preservation of BOD samples at 4℃, Culturing at 37℃, Fermentation Studies, Entomological Incubation, Drug stability test, Cultivation and Storage of bacteria, Industrial & Mining, Marine Lives, Environmental Protection, Water analysis & BOD test, Biochemistry, Agriculture, Storage of bacteria, enzymes and microorganisms, Seed Germination Test & APHA method at 20℃ incubation used in the calculation of Biochemical oxygen demand for Sewage treatment.
We are known for customization, you can drop your inquiries in the mail for customized BOD Incubators in terms of size and specification. Yatherm Cooling Incubators are ISO & CE certified complying with all international standards. We offer IQ/PQ/DQ/OQ documents with onsite validation & Calibration of the equipment.
WHY YATHERM SCIENTIFIC’S BOD INCUBATOR?
Yatherm Scientific is providing high-quality Laboratory Incubator/Bacteriological incubators/BOD Incubator and any other laboratory equipment at the lowest price in India, Europe, Asia & African Nations. Yatherm Scientific offers BOD incubator equipment that allows biochemical oxygen demand studies to be carried out in a controlled environment. With a wide working range, they have cooling system versions, which allow work at temperatures below ambient, and heating, for work above ambient temperature. Depending on the model, it is possible to create environments rich in CO2 or N2 for example, as well as to carry out photoperiod studies through special lighting systems in the visible and/or ultraviolet spectrum, which are the Incubators with photostability. Available in different capacities/sizes.
Intelligent controlling system
- Microprocessor based PID controller with large LCD display
- 0.5℃ control sensitivity
- We also offers LED display with accuracy of 0.1℃
- Machine starts from last point in case of power failure
- Audible and Visual Temperature high & low alarm system
- Data logging and real time graph provided with optional PLC & HMI system
- USB port/Printer Port/Printer also available with PLC.

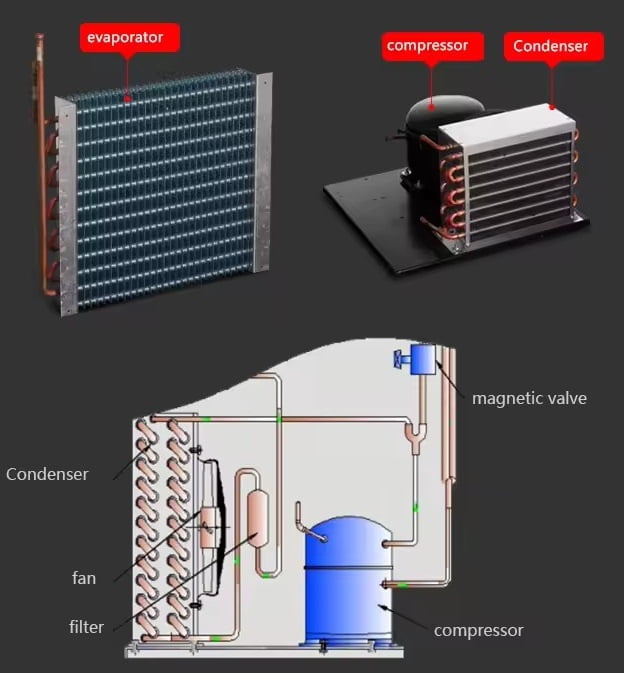

Accurate Heating and cooling system for precise controlling.
- Standard SS 304 fin type tubular air heater are used for high heating efficiency and long life.
- PT 100 temperature sensor
- Double Door construction with insulated doors avoid heat loss.
- 50 mm diameter Hole provided for temperature calibration
- Continuous Air circulation provides uniformity of ±0.5℃ inside the chamber
- Standard PUF insulation gives efficient cooling.
- CFC/HCFC free refrigeration systems uses R 134Arefrigerant
- Hermetically Sealed compressor are used for easy maintenance.
- No drainage is required in automatic defrosting
TO LEARN MORE ABOUT BOD INCUBATOR
If you have any questions or doubts about the BOD Incubator and how it works? Get in touch and talk to one of our experts. Contact us for our expert’s help!
