Dynamic & Static Cleanroom Pass Box Manufacturer In India

Dynamic pass box triple door

Static Pass Box

pass box

Double Door Dynamic Pass box

Pass Box is a closed steel box with a double door used for transferring the material from the nonsterile door to a sterile door inside the cleanroom. Scientist uses Air showers to pass through into the cleanroom whereas material uses pass boxes to get into the cleanroom. Pass through Box is cleanroom equipment designed in two categories one is a static pass box and the other is a dynamic pass box. Pass boxes provide a controlled environment for the cleanroom from airborne cross-contamination for a better research environment.

Airborne particles on the material may affect the research of a company so we always recommend Yatherm pass box to all our pharmaceutical clients. We are a manufacturing CE-certified Pass-through box in India with high-quality steel & suitable class HEPA filters and pre-filters. We believe in new designs, quality & great after-sales support to all clients with a year warranty and ten years of spare parts availability.

Applications:
  • Pharmaceutical Industries
  • Food Processing Industry
  • Semiconductor Industry
  • Chemical Laboratories
  • Electronics Industry
  • Cosmetics Industry



Features:
  • ISO/CE/GMP certified
  • UV light with Timer
  • Inbuilt Magnehelic gauge
  • Low noise less than 60db
  • SS construction for chemical and rustproof
  • Buzzer indication for material transfers
  • The magnetic locking system on doors
  • Electromagnetic interlocking system
  • Mechanical interlocking system
  • HEPA filter H14 air supply and exhaust filter
  • Made of stainless steel plate
  • Easy to clean and integrate



Yatherm Scientific designs different categories of pass box-like dynamic and static. Choose your model according to your requirements and user specifications.

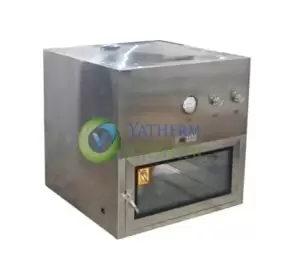

Dynamic Pass Box:

We design Dynamic Pass Box equipment in complete Stainless steel 304 with an interlocking system, UV light, Illumination light, Fan Motor, 0.3 microns HEPA filter & pre-filters. Hepa Filters are suction filters made as per European standards to prevent any kind of cross-contamination. The interlocking system will give the advantage of opening one door at a time during the pass-through of material. Class 100 & Class 1 cleanroom users always prefer a dynamic pass box instead of a static pass box.

Dynamic Pass Box Drawing:

Static Pass Box:

Static pass box is a passive pass box designed with UV light, interlocking system, magnetic door locking & buzzer alarm; it has no HEPA filters and Fans for passing through of material.

We are a renowned Manufacturer & supplier of ISO & CE certified Pass boxes worldwide at the best price with great after-sales support and ten years of spare parts availability. Our all products come with a one-year warranty and user-friendly operations and maintenance. We design pass boxes in many different sizes from the basic model of 2 ft x 2 ft x 2 ft to a large model of 8 ft x 5 ft x 5 ft. We never hesitate in customization so send your all queries of any size to our email ID.

Static Pass Box Drawing:

Pass Box Dimensions Matrix

External Dimensions Working Area
(W×H×D) (mm) (W×H×D) (mm)
690×590×500 500×500×500
690×590×600 500×500×600
790×690×600 600×600×600
790×690×700 600×600×700
890×790×700 700×700×700.

TECHNICAL SPECIFICATIONS

Model YSD 222/ YSD 333/ YSD 433 YS 222/ YS 333/ YS 433
Design type Dynamic Static
Cleanliness level Class 100 Passive
Internal Dimension 2 x 2 x 2 Ft.

3 x 3 x 3 Ft.

4 x 3 x 3 Ft.

 2 x 2 x 2 Ft.

3 x 3 x 3 Ft.

4 x 3 x 3 Ft.
Construction SS 304 SS 304
Illumination Philips LED Philips LED
Air system MS Blower Not Applicable
Filters  The HEPA filter (99.97%)0.3 microns-filters (95% down to 5 microns) Not Applicable
Door  Interlocking Doors with Glass view Window  Interlocking Doors with Glass view Window
Standard Fittings Light indicators for door Handles & hinges UV light Light indicators for door

SS Handles &  hinges

UV light
Power supply 220 V +/- 10%  ,  50/60 Hz 220 V +/- 10%  ,  50/60 Hz

How To Choose Manufacturer of Pass Box?

This is peripheral equipment of the clean room, Pass boxes are mainly used to transfer the small material between the clean area and Nonclean area. Clean room Pass boxes help decrease the opening time of a clean room & reduce the pollution inside the clean room. Yatherm Scientific Manufactures pass boxes according to international standards designed for clean room usage.

The Clean Room dynamic and Static Pass Boxes are made up of stainless steel grade 304. The pass box is designed in double-walled construction where the inner and outer product bodies With two doors are equally thick & a thickness is 1.0mm. Pass Boxes can be equipped with related functional accessories such as UV germicidal Lamps, Illumination Lights, and magnetic gauges.

Yatherm Scientific has installations in microtechnology, biological laboratories, the pharmaceutical industry, hospitals, the food processing industry, the electronic parts Manufacturing industry, and the Cosmetic industries which need clean air in research & development.

Yatherm Scientific Installation of pass box in Cleanrooms



Pass-through boxes are very easy to install in the walls of the clean room. This is a plug-in use equipment that doesn’t need any expert or engineer to run. Pass boxes are fitted at the bottom of the wall or the middle of the wall with a support on the base. We have installed many pass boxes in NEPAL, DUBAI & BANGLADESH & provided proper training to the users. Drop a mail for a price quotation with your queries.
