Lab Deep Freezers
Ultra low temperature freezer -80 deep freezer/ Dual cooling system ultra low temperatures lab freezers minus 80 degrees/ Minus 80 Degree Upright Ultra-low Temperature freezer/Hospital Lab Ultra Low Temperature -65, -70, -80, -86 Degrees Celsius/ Horizontal Ultra low -86 degree freezer
Yatherm laboratory ultra low-temperature freezers are designed to protect samples, culture, and media for storage of bone grafts, stem cells, plasma, viruses, and many biological samples with advanced features like low power consumption and speedy temperature pull-down. These freezers come in horizontal and vertical designs as per the requirement of customer specifications.
We manufacture all types of laboratory freezers, ultra-low freezers, chest freezers, and blast freezers. we offer a wide range of operating temperatures to our clients for the storage of perishable goods. Ultra freezers are used to store biological & chemical material for long-term storage purposes that have nothing to do with cooling. Cooling and storage at low temperatures are two different things. Most Importantly biological samples need a cold environment for storage purposes.
Ultra low temperature (ULT) freezers are made with a complete SS chamber to avoid rusting and contamination. This machine comes with 21 CFR compliance & a real-time graph and data recording facility. Yatherm Scientific manufactures & offers high-quality made In Indian products at the best prices in India. Yatherm laboratory Deep freezers come in a Touch panel with PLC and a data logging facility to enhance the advanced user experience. There is a huge difference between the regular deep freezer and the laboratory deep freezer comes with a complete SS 304 chamber. All laboratory deep freezers are equipped with a microprocessor-based PID controller that features low and high alarms.
FEATURES:
- Sufficient Insulation to avoid temperature loss
- SS 304 chamber construction
- CFC/HCFC free Compressor
- Hotline across the door assembly to prevent frost formation
- Cascade featured Compressor
- High-quality silicon rubber gasket
- Uniform Temperatures
- Long-Term Stability
- Ample Tolerance for Ambient Installations
- Smart Handle
- LED door closure indication
- Password protection
- Audio-Visual Alarms for Safety
- Temperature high/low
- Power failure
- Battery Low
- Door Open
- Power on (only visual)
- Settable points of the controller
- Temperature high/low
- High /low-temperature alarm point
- Buzzer off time
User Demands and We Customize (Application)
- Pharmaceutical Industry
- Food Industry
- Hospital
- Research & Development Labs
- Medical Use
- Blood Storage Bank
- IVF centers
- Storage of seafood
- Production Facility
- Aviation Sector
Refrigeration System
Yatherm ultra low temperature (ULT) freezers have cascade refrigeration systems, enhanced heat transfers, highly efficient oil separators, easy clean filters, and Copper coils. Our Freezers have a delay timer of three minutes for the safety of the compressor. We offer a dual-guard cooling system, that starts working in case of an unexpected failure of the primary cooling system. A separate cooling system is provided with the machine which can maintain -80 degrees Celsius of temperature.
Temperature Freezers Standard Size available
50 L, 100 L, 150 L, 200 L, 300 L, 400 L, 500 L to 1000 L
We design and manufacture standard & customized sizes with tailor-made additional features.
Standard Temperature range
-60 °C , -80 °C , -86 °C
These are the range for Chest and vertical deep freezers with dual compressor facilities in lower temperature ranges.

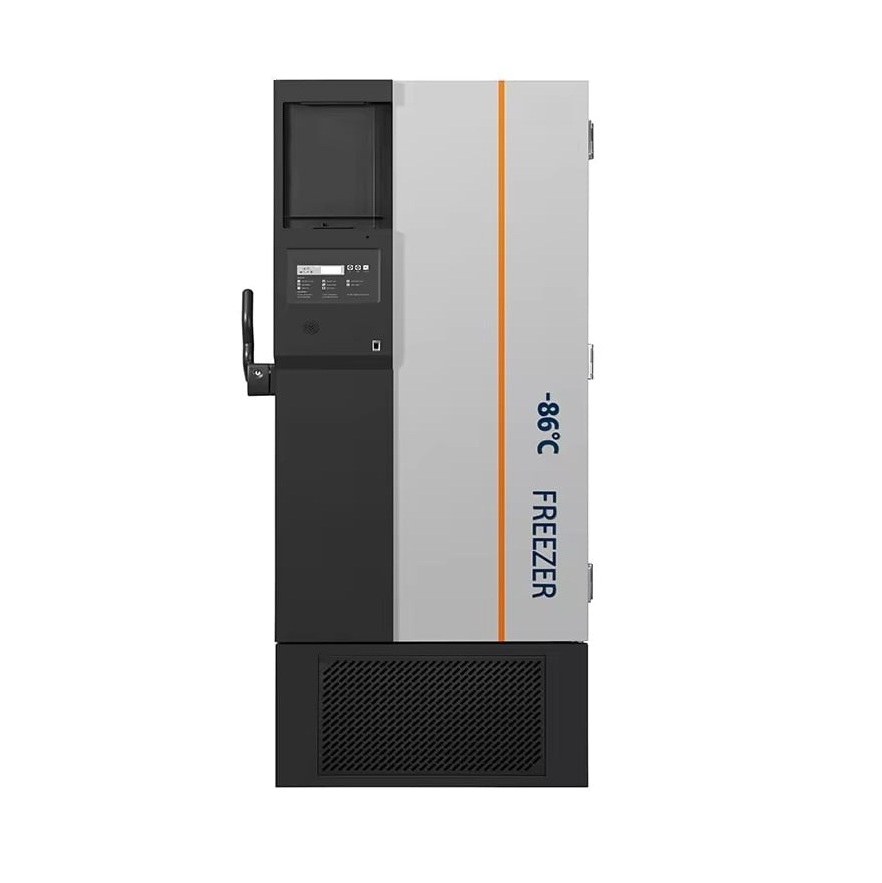

Ultra-low Temperature Freezer Technical Specification
| Ultra-low Temperature Freezer | Upright Model -80 to -86 | |
| Temperature range | Ambient to -80°C | |
| Working Range | -40°C To -86 °C | |
| Temperature Controlling | Programmable Operating temperature from -50°C to -86°C with a 1°C increment | |
| Temperature Sensitivity | ±0.1°C | |
| Temperature Sensor | PT-100 | |
| Material of Construction | Inner | The inner bath chamber and lid are made of Stainless Steel (SS-304 grade) |
| Outer | The outer chamber is made of Mild Steel duly powder coated. | |
| The gap of 75 mm between the outer and the inner wall is filled with special-grade glass wool to prevent thermal losses | ||
| Cooling | An energy-efficient cooling unit is installed in our Deep Freezer. We use ISI-marked high-end CFC-free compressors of Kirloskar/Tecumseh make, conforming to the latest international standards and guidelines.
Hermetic Rotary Dual Compressor. |
|
| Door handle | Sleek handle for easy door opening. | |
| Compartments | 5-6 Compartments with individual doors | |
| PID Controller | Digital Controller with High and low-temperature alarms. (LED Lightning display) | |
| Shelves | Closed Cabinet for each shelf | |

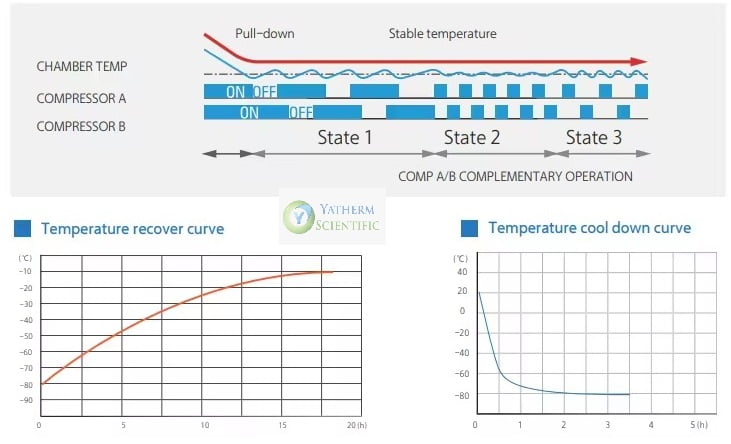

| Pull Down Time | 4 Hours from Ambient to -85°C | |
| Refrigerant | R134A Non-CFC & Mixed Gases with Cascade System | |
| Heated Ports | Prevents vacuum formation enabling the door to be opened easily | |
| Door locks | Keyed Locks/RFID/ Password Operated locks | |
| Electrical Safety | IEC 61010 | |
| Certificates | European CE/ ISO 13485/ CE/GMP | |
| Diagnostic Software & Remote alarm port | Only available with HMI & PLC | |
| Noise Level | Less than 58dBA | |
| Washable Filter | Prevents Dust in condenser and compressor | |
| Voltage Stabilizer | 5KVA Servo Stabilizer | |
| Battery Back up | The display has 48 Hours back up | |
| Power | 220 V, Single phase, 50 Hz. AC supply | |

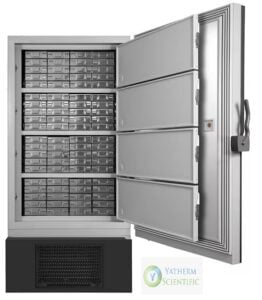

Dimension Matrix – Vertical Upright Freezers
| Model | Volume (Liters) | Dimensions (mm) | (2” Vials ) Sample Capacity | Power Consumption per day |
| Coolex 100UL | 100 Liters | 450 x 450 x 500 | 5000 – 7000 | 7 kW/ Day |
| Coolex 200UL | 216 Liters | 600 x 600 x 600 | 11,000 – 14,000 | 8 kW/ Day |
| Coolex 340UL | 340 Liters | 900 x 620 x 610 | 20,000 – 24,000 | 8.5 Kw/ Day |
| Coolex 500UL | 500 Liters | 1200 x 620 x 675 | 34,000 – 36,000 | 9 Kw/ Day |
| Coolex 600UL | 600 Liters | 1200 x 705 x 705 | 40,000 – 42,000 | 10 Kw/Day |
| Coolex 700UL | 700 Liters | 1200 x 760 x 770 | 46,000 — 48,000 | 12 Kw/Day |
Note: Big sizes are made against order.
Optional Accessories
LN2 Backup System/Co2 Back-Up System
This is a gas supply system to the chamber from a Gas cylinder with the help of the electronic controlling device. LN2 Backup and Co2 backup are a kind of cooling system for the refrigeration of the ULT freezer chamber. Yatherm ULT freezer is equipped with a high and low-temperature alarm & when the temperature rises to the high alarm from a set point LN2 backup system starts working automatically. Gas from the cylinder is transferred to the chamber to maintain the freezer’s set temperature. In case of power failure Battery operated controller starts maintaining the temperature.
Touch Screen Display PLC/HMI
- PLC (Programmable logic controller)
- USB Port for Data Collection
- 4 Inches/7 Inches Colored Touch Panel
- Real-Time Chart
- Data Recording
- 99 Programs with the Storage of 99 Steps
- RS 232 Port/ Ethernet Port
- Optional Printer
- 21 CFR Part 11 Optional
Sliding Tray Racks
- Designed for standard Cryo box.
- Racks are made up of High-Quality Stainless steel 304 grade
- Sliding trays are more flexible for users.
Cryo-Boxes
- Designed to store cryogenic vials and tubes.
- Available in economical cardboard Cryo-Boxes for short-term storage
- The plastic boxes are used for long-term storage purposes.
Ice Scraper
- Removes the toughest of ice & snow with its extra sharp blade – without leaving scratches.
- SS 304 Construction
- Easy to carry and use, convenient and practical.
- It protects your refrigerator.
Servo Stabilizer
- Consistent Voltage Supply
- Protection against Voltage Spikes and Surges
- Energy Savings
- Improved Equipment Performance
Yatherm high-performance, energy-efficient, ULT freezers are designed to meet critical parameters associated with high-value stored specimens.
