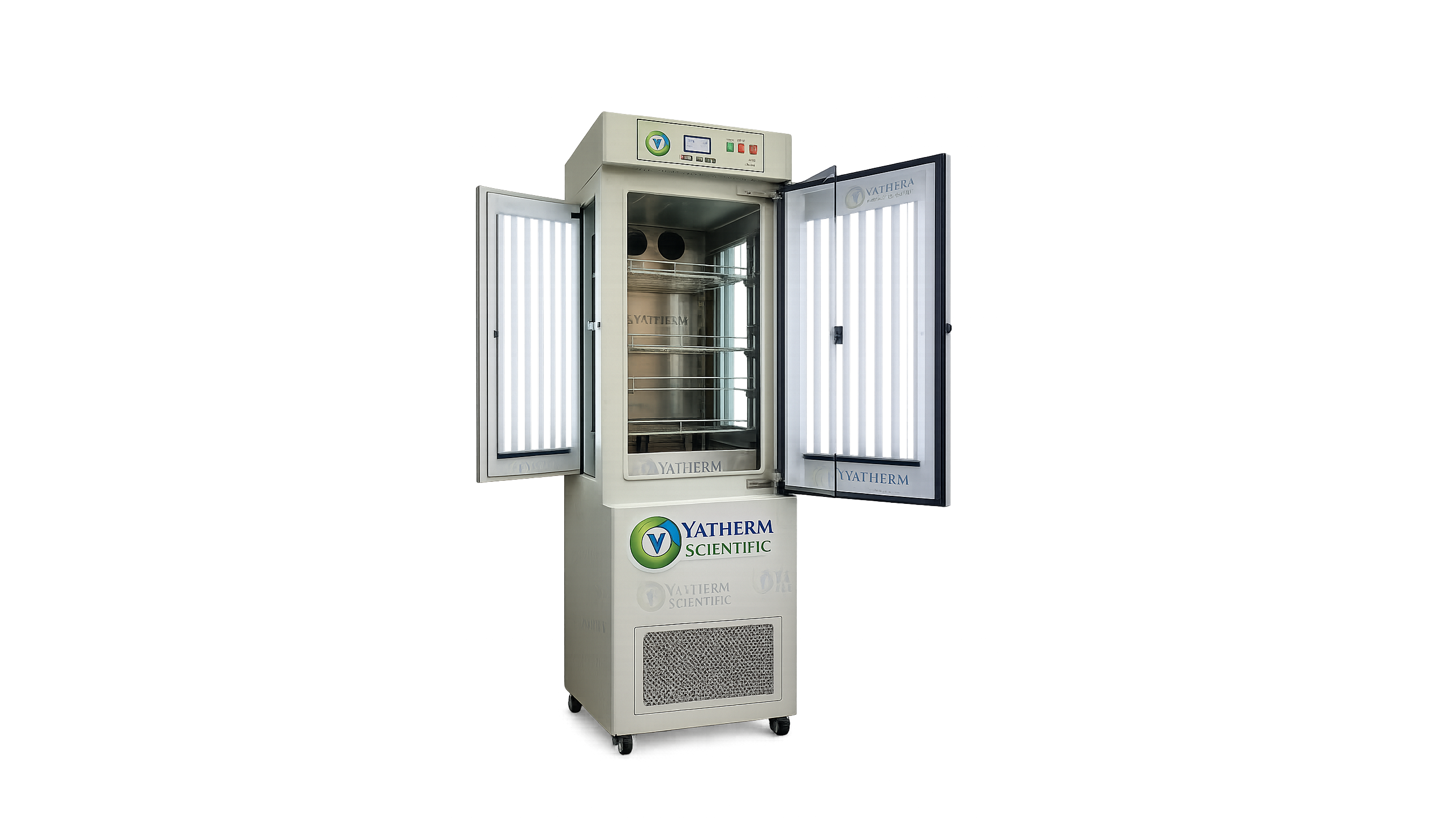

Plant Growth Chamber
Single Chamber & Dual Chamber Plant Growth Equipment – Mushroom Plant Growth Chamber/ Plant Growth Chambers & Walk-in Rooms Manufacturers, Features, Price and Uses
Plant growth chambers are special type of environmental test chambers which are designed to perform plant growth experiments inside laboratory.
Environmental test chambers are specially designed to check the effect of environmental conditions on a human-made product or naturally found products like plants. A plant growth chamber is one of the environmental test chambers that is designed to check the effect of man-made environmental conditions on a plant in a closed chamber. The goal of the test chamber is to achieve standard atmospheric conditions for seed germination or plant growth. Yatherm Plant growth chambers are equipped with illumination lights, an inbuilt water tank for humidity & controlled temperature facility. By changing the settings of test chambers like illumination, airflow, temperature, Humidity, and shelving we can achieve our test results for particular plant species.
Walk-in Plant Growth Chamber
Walk-in test chambers are big-size chambers designed for big-size plant species or multiple plants in a single chamber for testing the maximum growth of a plant species. These units are manufactured keeping the user’s requirement in mind for better user experience and desired results. Walk-in chambers are user-friendly and kept near the research laboratory. Walk-in the test chamber is configured in horizontal airflow design & vertical airflow design as per the testing requirement of the short & tall plant.
Control system:
Microprocessor-based PID controlled system, Touch panel system, Integrated control panel for temperature, Humidity, and Light function. The control panel will display the experiment period in Days with Running time, temperature value, humidity value, remaining time of the program & Three types of Light illumination levels.
Data recording with real-time graph, and automatic compensation function: The machine restarts from the same point in case of a power outage. High and low-temperature alarms and abnormal sensor protection ensure the equipment and samples’ security.
Professional Lighting systems provide samples with a three-dimensional light source that enhances the production quality of the user. Yatherm plant growth test chamber has an inbuilt humidity system that gives atomized moisture to the growing plant.
Applications:
- Arabidopsis
- Entomology
- Bio-Chemistry
- Microbiology
- Biochemistry
- Genetic Research
- Crop Motivation
- Research laboratories
- Marine Testing labs
- Mushroom Growth
Features:
- Color Touch Panel
- Controlled Environment parameters
- PLC controlled
- SS inner construction
- Corrosion Resistant exteriors
- Energy Efficient
- CFC/HCFC free Cooling
- Rugged Construction
- Door Locking
- Castor Lockable Wheels
- Water overflow & Low water cut off
Available Standard Sizes
| (W x D x H) | CAPACITY |
| 505 X 850 X 405 mm | 6 Cu. ft |
| 550 x 900 x 550 mm | 10 Cu.ft |
| 600 x 600 x 900 mm | 12 Cu.ft |
| 700 x 650 x 900 mm | 15 Cu.ft |
| 800 x 800 x 900 mm | 20 Cu.ft |
| 825 x 825 x 1200 mm | 30 Cu.ft |
| 800 x 800 x 1600 mm | 45 Cu.ft |
Specifications:
| Model | Ficus -180 | Ficus – 300 | Ficus -850 |
| Chamber Capacity | 180 Liters | 300 Liters | 850 Liters |
| Illumination | Max. 24000 Lux | Max. 24000 Lux | Max. 36000 Lux |
| Cooling Device | Hermetically sealed Compressor(1/3 HP) | Hermetically sealed Compressor(1/2 HP) | Hermetically sealed Compressor (1 HP) |
| Shelves | 2/3/4 | 2/3/4 | 4/5/6 |
| No. of Doors | Single | Single (Double Optional) | Double Doors |
| Temperature | |||
| Range | 0°C to 60°C (Light ON: 10°C to 60°C) | ||
| Accuracy | ±0.5°C at 27°C | ||
| Controller | Micro PLC with HMI | ||
| Humidity | |||
| Range | 30% to 95% Relative Humidity | ||
| Accuracy | ±2% | ||
| Controller | HMI with Micro PLC | ||
| Sensor | Electronic for humidity & K type for Temperature | ||
| Construction | |||
| Interior Construction | Stainless steel 304 grade | ||
| Exterior Construction | GI powder coated | ||
| Insulation | Mineral Wool | ||
| Interior Doors | Tempered Glass Door w/ Silicone Packing | ||
| External Doors | Solid Doors w/ Magnetic Gum Packing | ||
| Shelves’ Construction | Stainless Steel | ||
| Other:- | |||
| Illumination Type | Fluorescent Lamp | ||
| Refrigerant Gas | R-134a CFC/HCFC free | ||
| Safety Device | – Leakage breaker for power supply – Overcurrent protection – Overheat protection – Water indicator with low water cut off & overflow system |
||
Yatherm Test Chambers are designed with quality steel following all International standards with a year warranty and 10 years of spare parts available worldwide. We are known for quality products and great after-sales support with tailor-made test chambers. Contact us by mail or WhatsApp 24×7 for queries regarding test chambers.
