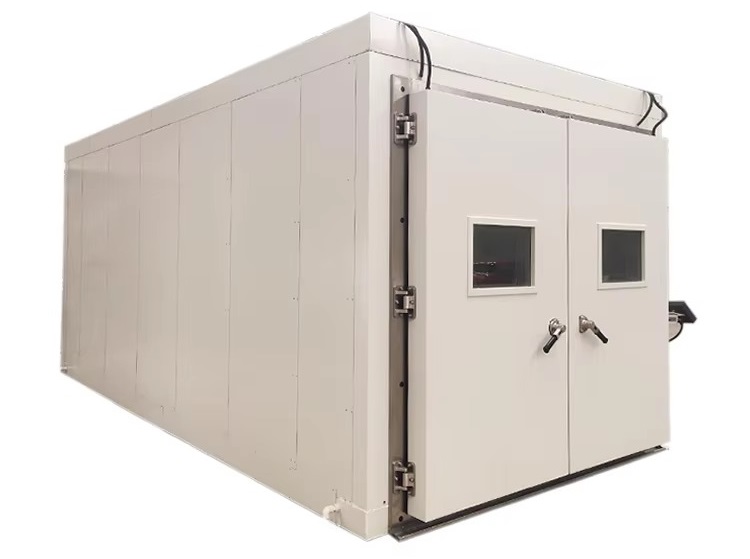

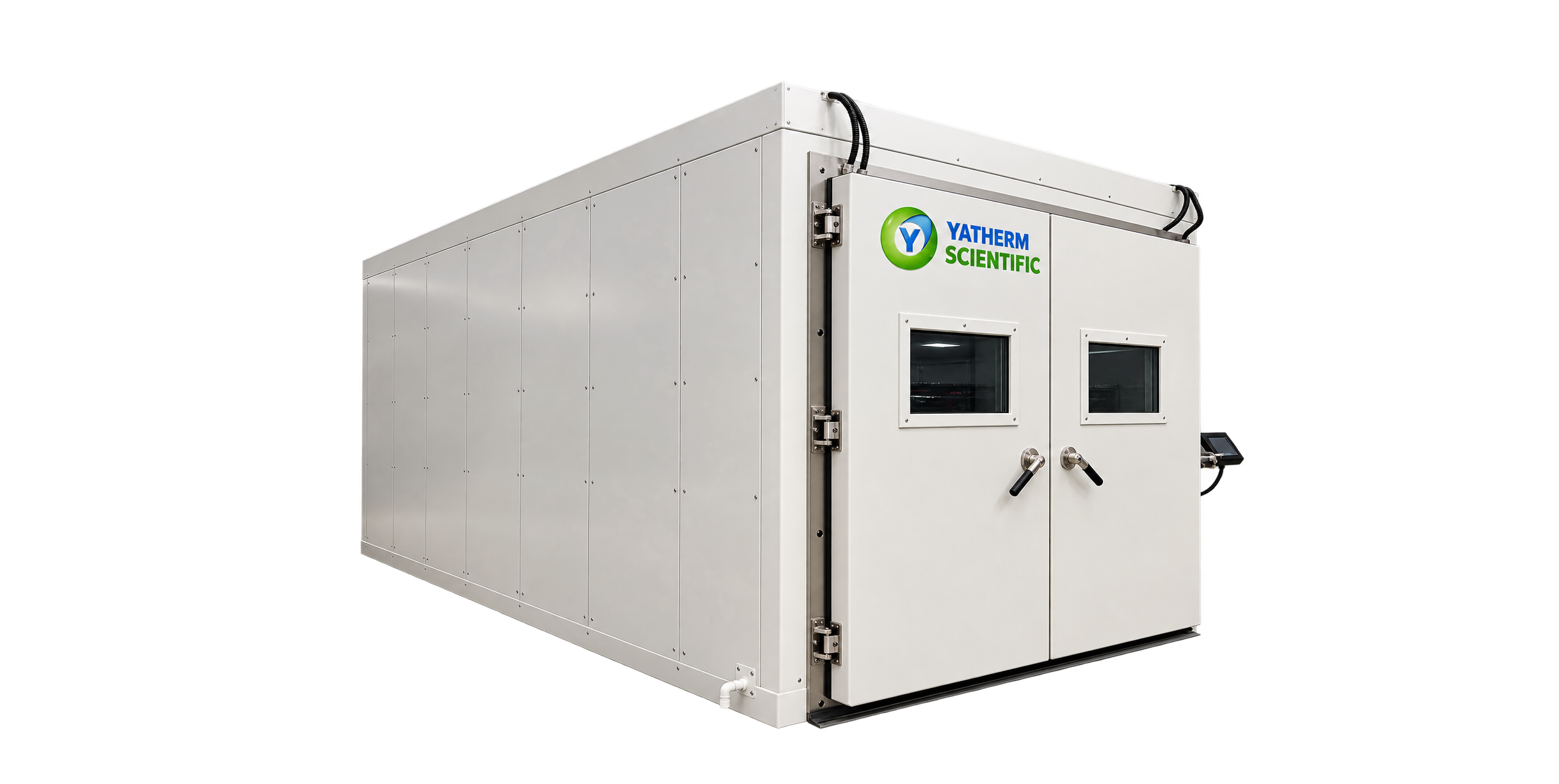

Walk in Stability Chambers Manufacturers in India

A walk in stability chamber is a climate test chamber with large dimensions designed to maintain controlled temperature and relative humidity.

Walk-in Stability Chambers starts from 3000 Liters capacity to 50000 Liters capacity. These chambers are designed in such a way that a user can physically move in to the chamber and check the performance of the samples. A walk in chamber is most suitable for the pharmaceutical industries where large number of drugs batches are kept at the same time. Yatherm Walk in Test Chambers are manufactured according to the ICH standards where parameters like relative humidity and temperature controlled to perform tests. A walk-in Chamber is more precise and stable scientific equipment that ensures proper safety for the users. Pharmaceutical accelerated stability Chamber designed to perform experiment that simulates environmental/climatic conditions like temperature & relative humidity to calculate the effect on shelf life of samples.

The chambers are extremely suitable to carry out stability studies as per ICH guidelines for conditions like.

25ºC — 40%RH
25ºC — 60%RH
30ºC — 65%RH
30ºC — 75%RH
40ºC — 75%RH.

Features

Modular Design construction
PUF insulated doors and chamber
Moisture/Fog proof Vacuum Sealed Observation Transparent glass window.
High quality perforated SS 304/SS 316 Trays
PLC operated touch Panel

Construction

Advance technology with high quality of material makes our pharmaceutical stability chamber more useful & stable. Double Walled Modular panel type construction insulated with PUF material that assembled at the site with trained engineering staff. SS 316 /SS 304 grade trays & shelf are offered with the chamber to sustain movement & material load inside the walk-in chamber.
The Working area of the chamber is made up of rust proof high quality Stainless Steel 304 grade.
To maintain the ICH stability testing, chambers are equipped with Air circulatory fans that maintains the temperature and relative humidity.
A transparent moisture proof Temperature proof glass window helps in viewing the samples without affecting the test condition & human interference.
Humidity and temperature Walk-in Stability Test Chambers can be programmed to maintain the stable environment with temperature , humidity, air pressure and light exposure that is ideal for understanding the effects of transportation & storage on the efficacy of drugs. We also offer Lights inside the chambers if required.

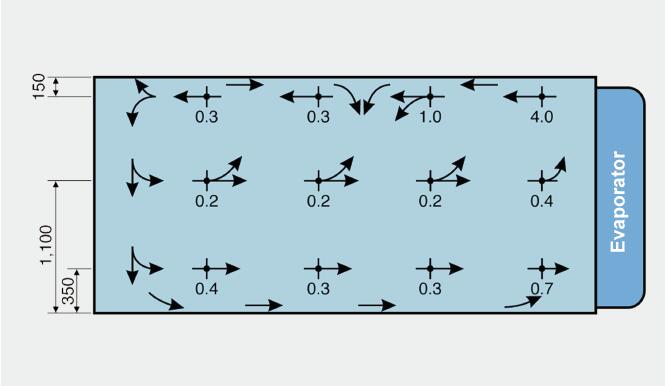

Uniform temperature/humidity

Humidity system consist a humidity generation tank made up of complete SS 304 Grade steel with low water cut off & ISI mark SS 304 water heater. We also offer one stand by water heater with automatic switch over system in case of failure of the first one. We recommend DM water or Distilled water for the long life of heating element and Low water float valve. Uniform temperature is only achieved by the circulatory fan that circulates the sufficient amount of air inside the chamber. Humidity distribution achieved by steam injection.

ALARM & SAFETY:

High/Low Temperature and Humidity Audio Visual Alarm
Power Fail Audio Visual Alarm
Door Opening Alarm
Continues open door alarm
Low Water indicator with Alarm system
Sensor Failure Alarm
Ambient temperature rise alarm
Filter Choke Alarm

SOFTWARE (21 CFR PART-11 Compliance)

Real time Log data & event data.
Non-editable recording.
Real time temperature humidity graph analysis.
Real time data acquisition.
Audit Trail data.
E-Records & E-signatures.

CONTROL SYSTEMS

7 Inches Delta Brand HMI with color touch panel,
Three layers of Password protection for all parameters and program setting,
Control Panel Monitors Heating & Cooling system with Humidity System,
Long life wet and dry sensors are used for precision and stability,
Auto-tunning of temperature and humidity for precise controlling,
Data Logging facility to save and transfer data to software via telephonic monitoring system and Wi-Fi hot spot data logging,
It monitors date, time, Set value, Present value, Door opening, Power on/off.

SPECIAL FEATURES

Emergency Door opening system inside the chamber.
Door Lock opening from both the side even if locked from outside.
Data logging for Entry and exit.
Person trapped cut off facility in chamber.
Door entry with password access only

Safety Features

21 CFR PART-11 COMPLIANCE : Real time data logging, Real time graphical presentation & trail data.
Power fail Alarm and Power back up system for controller.
Low Water Cut off system for the safety of heaters and chambers.
Parameters Deviation Alarm system
Password for door entry saves from un-authorize access
Person Trapped saving facility inside the chamber.
Safety Door locking system even if locked from outside.
Temperature & Humidity Shoot up cut off system.

Technical Specification
Temperature Range	20 ℃ to 60 ℃
Humidity Range	40%RH to 95%RH
Accuracy	+0.5 ℃ & +2.0% RH
Uniformity	+2.0 ℃ & +3.0% RH
Test Suitable for	25 ℃ & 60% RH, 30 ℃ & 65% RH 40 ℃ & 75% RH, 30 ℃ & 75% RH

MATERIAL OF CONSTRUCTION

Models	Material of Construction
Models	Interior	Exterior
STD	S.S.304 Dull Finish	G.I Powder Coated
GMP	S.S.304 Dull Finish	S.S.304 Dull Finish

MODEL & DIMENSIONS

Models	Capacity (in liters.)	Dimensions (W X D X H)		No. of Trays
Models	Capacity (in liters.)	Internal (mm) Width Depth Height	External (mm) Width Depth Height	No. of Trays
BENZO-3KL	3000	1600 X 940 X 2000	1720 x 1060 x 2120	10
BENZO -6KL	6000	1800 X 1800 X 2000	1920 X 1920 X 2120	16
BENZO -8KL	8000	2000 X 2000 X 2000	2120 X 2120 X 2120	16
BENZO -10KL	10000	2000 X 2500 X 2000	2120 X 2620 X 2120	24
BENZO -12KL	12000	2000 X 3000 X 2000	2120 X 3120 X 2120	40
BENZO -16KL	16000	2000 X 4000 X 2000	2120 X 4120 X 2120	40
