USP/IP Compliance Tablet Disintegration tester/ Tablet Tablet Disintegration Tester/ Tablet Pharmaceutical Disintegration Tester/ Automatic Tablet Disintegration Testing Equipment/ Disintegration tester used for detecting disintegration of solid.
Tablet Disintegration tester is an instrument used to perform the disintegration test of tablets and capsules in the pharmaceutical industry as per USP/IP standards. The main purpose of this test is to check the complete disintegration of a tablet and capsule in a standard time period. If a tablet takes too much time to disintegration than it is considered as highly compressed and gelatin is not as per the standards for capsules. This test is done randomly for the batches manufactured and adequate action takes place accordingly.
Yatherm Tablet Disintegration testers are designed as per USP/IP standards used for accurate test results of tablets and capsule disintegration. We offer and supply smart disintegration testers with maximum efficiency and consistent results for the pharmaceutical R&D department & quality assurance.

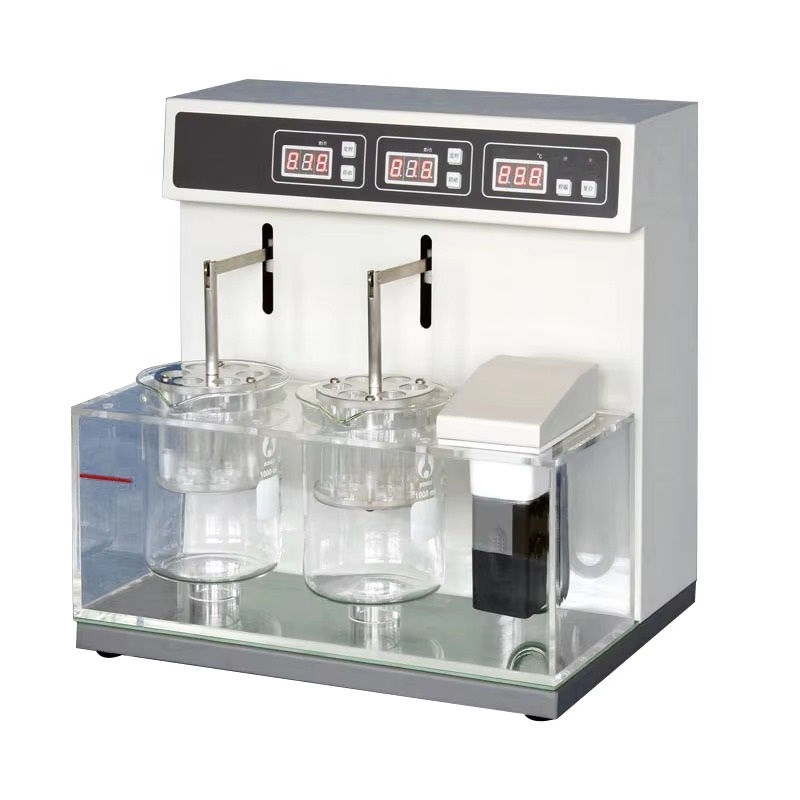

The instrument consists of two beakers capacity of 1000 ml each with a 6 mm thick acrylic water bath capacity 5-10 liters & ISI mark SS heater for uniform temperature in a water bath. This unit is provided with two basket assemblies with separate timers and motors. The temperature of vessels and water baths is maintained with the help of the PID controller at 37°C, & the speed of the basket is maintained as per standards. This instrument can test two tablets simultaneously with a soft touch key panel for smooth functioning. More than 200 samples of data can be stored for 20 tests with an optional port for the printing facility.
Features:
- USP/IP Compliance
- Microprocessor-based temperature controller
- Seven segments of LED display
- 10 Soft-touch membrane type keys
- User-friendly
- Two USP baskets
- Each basket is controlled by an independent Timer and Motor
- Auto parking of the basket at the top position at the end of the test
- Temperature validation Sensor
- Printer facility
- Maintenance-free smooth drive
- Suitable for veterinary tablets
Specifications:
| Model | TAB – 901 |
| Number of Baskets | 2 |
| Stroke Length | 55 mm ± 0.5 strokes/minute |
| No. of Timers | 2 Timers |
| Timer Display | 5 Digit LED Display for each Timer |
| Keyboard | Soft-touch |
| No. of Motors | 2 |
| Temperature Display | PID Controlled Digital display |
| Temperature Range | 20.0°C to 40°C |
| Temp. Control | Microprocessor-based using PT 100/ semiconductor sensor as per IP/USP |
| Accuracy | + 0.1 °C |
| Reaction Vessel | 1000 cc |
| Heater | 500 watt |
| Electrical Supply | 220 V |
| DIMENSIONS (W x H x D) | 35 cm x 21 cm x 33 cm |
|

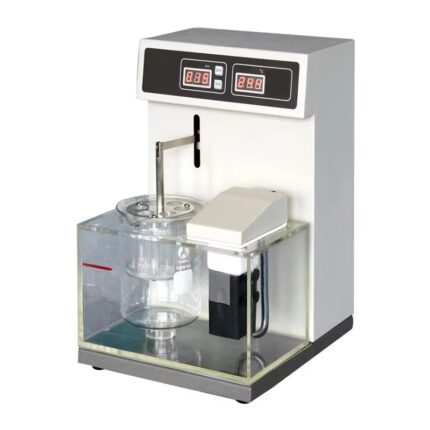

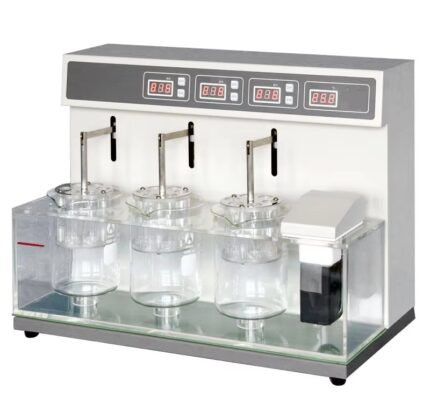

Model
|
DT- 1B
|
DT – 2B
|
DT – 3B
|
|
Basket assembly
|
1
|
2
|
3
|
|
The quantity of glass tube
|
6
|
12
|
18 pcs
|
|
The cubage of beaker
|
1000 ml
|
1000 ml
|
1000 ml
|
|
Nacelle up and down frequency
|
(30~32)/min
|
(30~32)/min
|
(30~32)/min
|
|
Nacelle up and down range
|
(55±1)mm
|
(55±1)mm
|
(55±1)mm
|
|
Minimum distance between sieve
|
(25±2)mm
|
(25±2)mm
|
(25±2)mm
|
|
Automatic time range
|
(1-900)min
|
(1-900)min
|
(1-900)min
|
|
Timing accuracy
|
+/- 0.5 min
|
+/- 0.5 min
|
+/- 0.5 min
|
|
Temperature range( °C)
|
ambient to 45.0°C
|
ambient to 45.0°C
|
ambient to 45.0°C
|
|
Accuracy of controlling temperature
|
+/- 0.5°C
|
+/- 0.5°C
|
+/- 0.5°C
|
|
Heating power
|
400 – 500W
|
400 – 500W
|
500 – 600W
|
|
Load
|
600W
|
600W
|
700W
|
|
Max continuous working time
|
>24 hours
|
>24 hours
|
>24 hours
|
|
Power supply
|
220V/50Hz
|
220V/50Hz
|
220V/50Hz
|
|
Dimension (mm3)
|
260×300×420
|
400×300×420
|
540×300×420
|
|
Weight (kg)
|
14
|
18
|
25
|

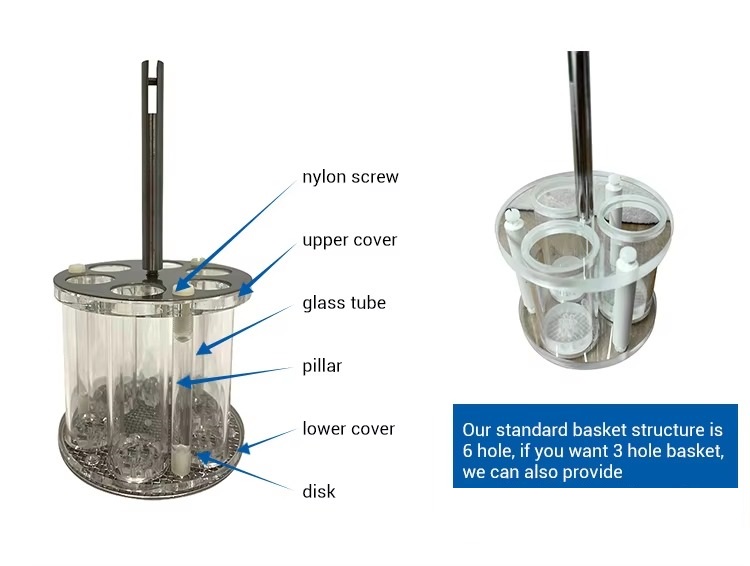

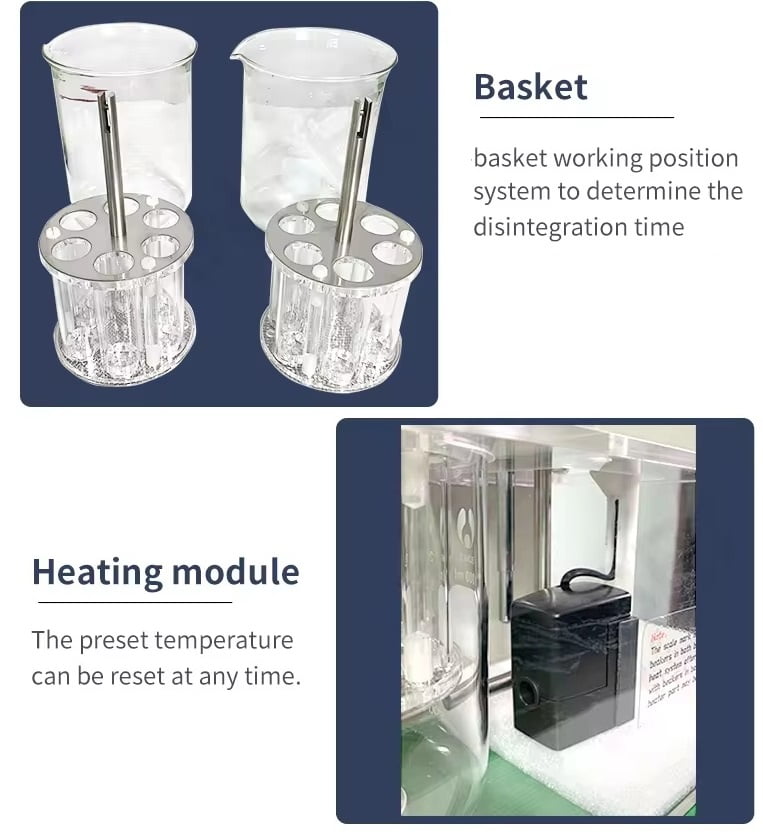

Basket Design and Detail
DT Apparatus IQ OQ PQ Documents & Certification
We offer IQ/OQ/PQ documents with the equipment to our all customers. On site validation of equipment is provided on customer demand.
Installation Qualification (IQ)
(IQ) Installation qualification verification always carried out in the user’s premises at the time of Installation of DT apparatus. This document contains all standard specification and parameters of the equipment. All prescribed parameters must meet the user’s requirement with manufacturers supplied instrument. IQ Documents gives the complete information about the installation of the equipment in standard Environmental condition.
Operation Qualification(OQ)
(OQ) Operational Qualification is a validation document initiated immediately after the complete installation process. This process is repeated at regular intervals of time after the confirmation of user. This documents proves the working of the machine and its parameters performance according the customers requirement & manufacturers designed specification. Disintegration test apparatus is working normally within standard required operating time.
Performance Qualification (PQ)
(PQ) Performance qualification verification is performed after the Installation & operational qualification to check the operational performance of DT apparatus. This documents contains the output results value generated after testing and compared with standard one. Performance of the DT apparatus checked with different types of samples & tablets at different range of temperature and speed.
Yatherm Scientific is known for Standard and customized instruments worldwide for better customer relationships; We are a reputed known brand for our after-sales support. You can post your queries for all standards and customize models.
