Leak Test Apparatus

Leak Test Apparatus for Packaging/ Blister Leakage Tester/ Vacuum Leak Testing Machine/ Food Package Bag Leak Testing Machine/ Air tightness Leakage tester/ Electronic products leak test apparatus/ Leak Test Apparatus with Pressure Vacuum Calibrator device

A Leak Tester works on the principle of creating a negative pressure in a closed chamber which inflates the sealed pouches due to pressure and leaked pouches don’t inflate. To test the sample we placed tablets sachet into the desiccator filled with Methylene blue and then vacuumed the desiccators for a limited time. The vacuum gauge of the Leak test apparatus is connected to a control valve that isolates the vacuum inside the desiccator from the vacuum pump.

Digital timer plays an important role in the testing of tablets in leak tester which explains the capacity to handle the pressure of a sealed pouch. Analysis of the test depends on the size and shape of the packet after the release of the vacuum. Yatherm Offers high-quality CE-certified instruments at the best prices in INDIA.

Working of a Leak Tester : The leak test apparatus makes it very easy to operate the pharmaceutical instruments. Testing Sample was placed inside the Acrylic Polycarbonate desiccator housing. The desired vacuum level is Set in the Vacuum controller and It generates a vacuum inside the chamber for a set period. After releasing the Vacuum from the desiccator we analyze the shape, size & sealing of the testing sample. We perform this test in the methylene blue solution which helps in penetrating the dye & identify the stains with the same color material.

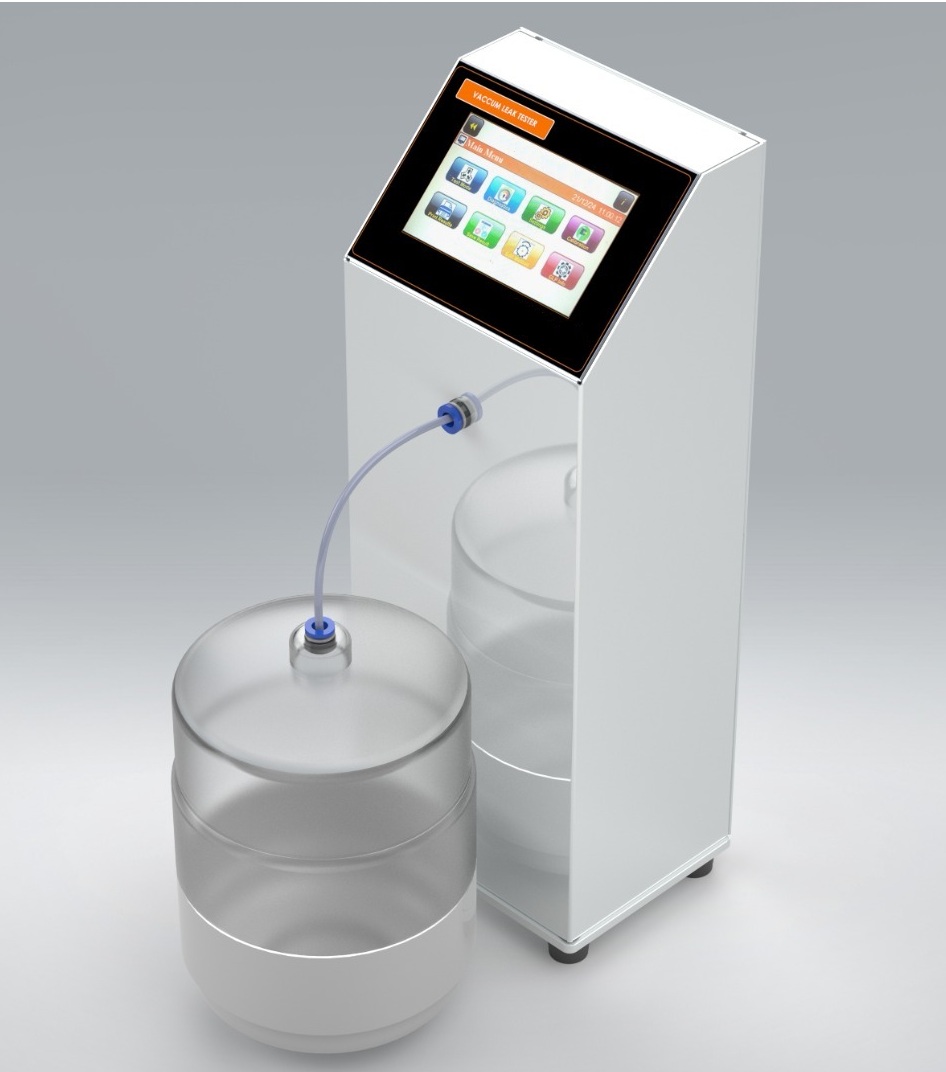

• Vacuum leak testing machine has two part : one part has complete controlling unit with vacuum pump where second part is transparent desiccators connected with the main unit by vacuum pipe.
• Machine has a many parameters that should be entered before performing the leakage test.
• Vacuum level must be within the range of 200 mm hg to 600  mm hg.
• Machine performs self vacuum testing for 30 second in the beginning.

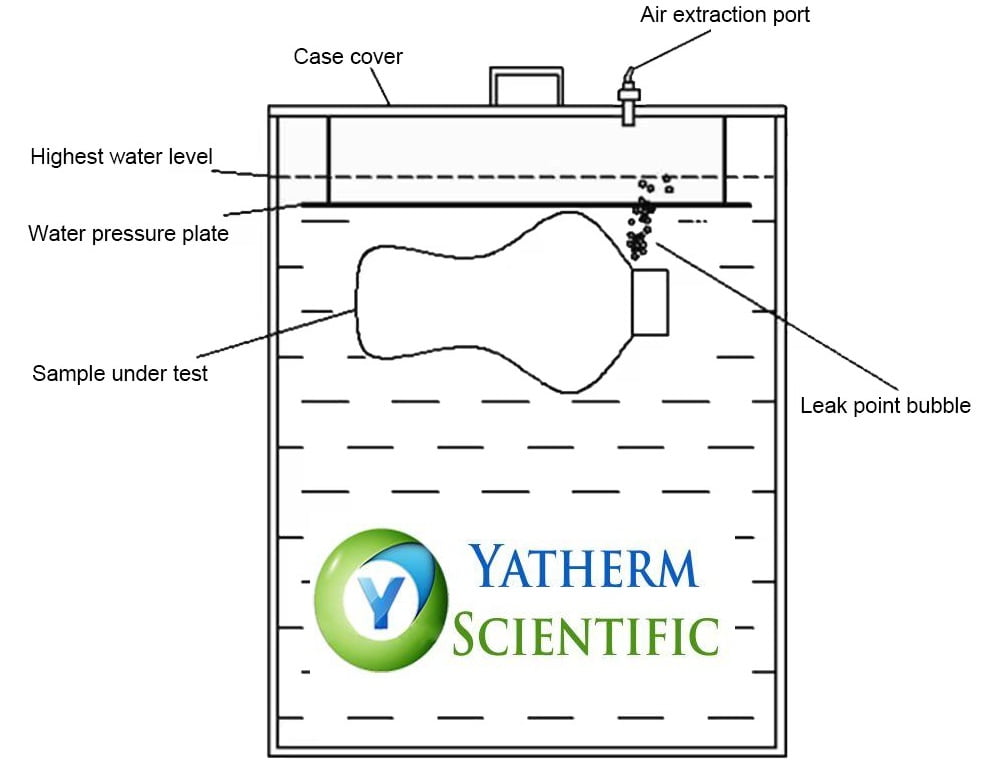

• Vacuum pump generates required vacuum for the vacuum chamber when sample is dipped into the colored water.
• Vacuum generated Internal and External pressure difference is observed in the gas leakage condition that determine the sealing quality of water dipped sample.
• Pressure difference is directly related to the pouches sealing performance & shape of the samples pouches recovered after the release of vacuum.

Functional features :

• Designed for Packing Industry
• Ideal for Leak Testing in Pharmaceutical Industry
• Microprocessor-based Controlling : 20 x 4 Line Alphanumeric LCD with Back
• Leakage unit Kpa, ml/min
• Digital Programmable Test Vacuum & Vacuum Hold Time
• Storage facility for Samples
• Last Result Storage Automatically
• Test pressure units KPa, mbar, Psi, KGF /cm2,inn hg, mm hg
• Real-time Printing Facility
• Set pressure and hold time

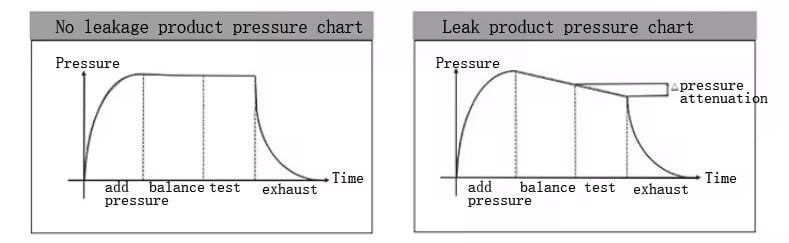

• The XY axis curve shows the recording of test pressure and leakage.
• Automatic constant air pressure, without manual operation
• Precise pneumatic components
• Superior sealing performance
• Large leakage, small leakage 2 alarm functions.

Yatherm is a leading manufacturer, supplier & Exporter of Leak test Apparatuses in INDIA. Our Pharmaceutical instruments comply with the USP & IP Standards. Yatherm Leak test apparatus is a Solid-state instrument specially designed for leakage testing of tablets & strips in the Pharmaceutical Industry. A Leak Tester was used to test the quality of packaging processes in sachet, blisters & strips containing granulates & liquid.

Leak test apparatus unit equipped with acrylic transparent desiccator housing of two different dimensions 8 inches & 12 inches respectively. The inbuilt vacuum pump makes this instrument the most advanced instrument according to the USP standards. The vacuum pump creates a set vacuum level with an auto-cut-off feature.

Air tightness Leakage tester Application

• Electronic consumption: sports audio, blue tooth speaker, earphone, electric toothbrush waterproof test, mobile phone waterproof test, seal test, etc.
• Pharmaceutical – Penicillin bottle, ampoule bottle, hypodermic syringe, oral liquid, aseptic bag, infusion vessel/bottle, water injection, powder injection,
• Food Industry : Chips, Chewing gum, Toffees & chocolates.
• R&D Labs – BFS bottle, API bottle, BPC bottle & FFS bottle.
• Industries Like aluminum foil, and eye drops.
• Security products: security camera waterproof test, smart home, street lamp, LED lamp, etc. Sealing test, air tightness test
•  Automotive industry: lamp waterproof test, engine air tightness test, camera air tightness test, charging pile, charging gun waterproof test, etc.
• Home appliance industry: coffee machine, juicer, blender, kettle, water purifier, soybean milk machine, etc.

Leak Testers are specially designed for Food & Pharmaceutical packaging

There are three types of packaging in the food industry. One is Flexible packaging Others are Held Hard package & Hard package. Packaging is always performed based on the material’s shelf life and safety.

Flexible package: Seed bags, Tetra packs, puffed food packaging, rice bags, chips packets, Cake packages, Milk Powder packing, Cheese packages, Coffee bags & Wet tissue packs means it can perform testing of different types of food packages with any shape or size.

Half-hard package: Retort pouches, Tomato Sauce packs, Jelly Packs, Yogurt Package, Salver packages, bulky chips packets, Medicines, Tablets, Eye drops, Oil sachets, and Shampoo sachets so it can test half-hard type packaging material in the food & Pharma industry.

Hard package: Injectables, Cough Syrups, Medicines stored in colored bottles, milk powder steel can, beverage bottle, oil drum, tin, biscuit keg, coffee bottle & zip-top can. It can check and perform testing of Hard packaging material stored in Glass bottles & steel cans.

Specifications:

Leak Tester Calibrator / Vacuum Calibrator / Vacuum digital pressure calibrator – Model – PV 101

Yatherm PV 101 is precision digital vacuum calibrator device is specially designed to validate and cross check the vacuum generated in vacuum leak test apparatus. A further advantage is that digital pressure gauge can also be used as a pressure reference. This makes testing very easy with adjustments and calibration(Auto zero prior to all test) for other measuring instruments on site. It has highly efficient measuring sensor that has an accuracy of 0.05% FS. This device is very user friendly finishes calibration job with 3 tactile switches. Microprocessor of the device automatically corrects zero point before every test and its linearity ensures the accuracy of the Calibrator.

Features

• High Accuracy
• Repeatability and Stability
• Digital Display
• Auto corrects Zero Point
• Easy to use and connect with Leak Tester
• Calibration report With traceability certificate

Operation

• Valves should be tighten when operating with a vacuum pump,
• Vacuum connected pipes must be connected properly,
• Start Leak tester and its vacuum pump,
• Calibrator must be in ON position,
• Now Display of calibrator and leak tester unit will show you pressure in mmHg
• Now you can calibrate your Leak tester with calibrator as Calibrator is NABL certified with traceability certificate.

Specification

We offer After-sale service

• One-year warranty service.
• Product operation instructions
• Experiment Test performance
• Installation working Video
• Remote Technical Assistance
• Life Time Service Support with Spare parts delivery

Yatherm pharmaceutical instruments are designed for the world market in Standard models. SS construction is made against the order as Yatherm Scientific supplies ready-made and customized instruments worldwide.
