Horizontal Autoclave

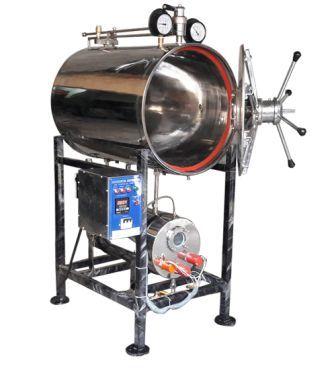

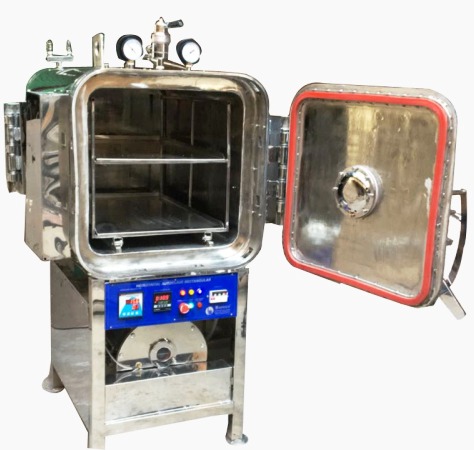

Round and Rectangular Horizontal Steam Sterilizer

Sterilization is a process of killing microorganisms with the help of steam sterilizer at 121°C & steam pressure of 15 to 20 PSI. Horizontal autoclaves are high-speed high-pressure autoclaves designed at our state-of-the-art in the manufacturing unit in the supervision of experienced personnel following ASTM standard. Yatherm manufactures Horizontal Steam Sterilizer in Round shape and Rectangular shape with all standard features for Hospitals, Pharmaceuticals, Biotechnology industries, Food Industry, Biomedical waste management industry & packaging industry.



Yatherm NABL certified horizontal Steam Sterilizer is specially designed for NABH hospitals equipped with 21 CFR microprocessor-based Controller. We invite our clients to visit our manufacturing unit once to see the complete making of a high-speed high-pressure autoclave. Yatherm design all horizontal sterilizers in triple-walled construction for fast temperature recovery after running a cycle.



Our Steam Sterilizer gives accurate temperature and pressure inside the sterilization chamber needed for the sterilization process of a surgical instrument, laboratory instruments & glassware. High-Pressure Steam sterilizer chambers and boilers are designed with a thick stainless steel sheet. Our HPHV autoclave gives a highly satisfying performance & best price in India & the world market.





Steam Sterilizer Features:
Low Water Cut off for the safety of heatersTriple Walled Construction
SS boiler with tank capacity up to 300 litersSingle and double doors
Negative Pressure Locking systemSS Immersion heaters
Jointless Neoprene gasketVacuum breakers
Round And rectangular shapesHydraulic testing up to 2.5 times working pressure



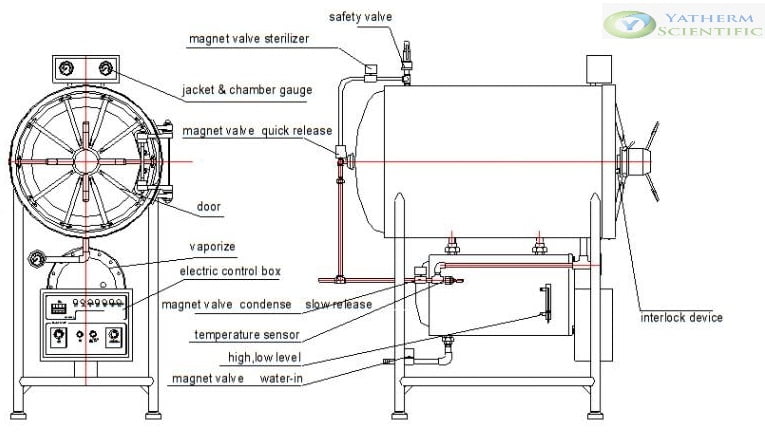

Horizontal Steam Sterilizer Construction:

Yatherm Horizontal sterilizer has triple-walled construction made up of complete stainless steel 304 & has the advantage of low water consumption, low power supply & fast heating. Horizontal autoclaves can store steam into jacket after one cycle competition for the second cycle. High-Speed Horizontal autoclave gives a completely dry sample in comparison to the double-walled vertical autoclave.





Horizontal Autoclave Controlling device:

Temperature Controller – Yatherm Provide a microprocessor-based PID controller consists of temperature, timer with a buzzer alarm. The controller has a double LED display for set and process value with a time of 9999 minutes.

21 CFR controllers display F0 value with an online data recording facility without any manipulation.  15 minutes at 121.1 degrees give F0 value 15 points; it is an important factor these days in the sterilization of surgical instruments in the pharmaceutical industry.



Pressure Controller – Yatherm Scientific offers made in DENMARK pressure controller for the safety of user and autoclave. The pressure controller cuts off the electrical supply of heaters when it reaches to set value.





DOORS:

The sterilizer can be designed in a single door or double door with a radial locking provision. Negative or positive pressure doesn’t allow the door to open until it comes to atmospheric pressure.



Trolley

The trolley can be designed in stainless steel or Mild steel with SS wheels for easy mobility. The trolley is a very essential part of the horizontal sterilizer which saves material from contamination.

Multi-Port Valve

The multi-port valve controls the speed of steam purging, steam transfer from jacket to the chamber, vacuum exhaust, of the slow exhaust.



Moisture Trap

Moisture trap designed for removing cold moisture from the chamber when a multi-port valve transfers the steam from jacket to sterilization chamber during the sterilization cycle.



Vacuum Breaker

Condensed steam creates a vacuum inside the chamber and jacket and vacuum breakers safeguard user and machine from shrinkage. Vacuum breakers fitted on top one for sterilization chamber and second for jacket. All Pipe connections are made from SS 304/SS316 of the BSP standard.



Emergency On/Off

It releases all steam pressure from the chamber by opening all solenoids valves in case of an emergency. It is one of the safety features of Horizontal sterilizer.



Steam Generator / Boiler:
6 KW Water Heater

Steam generator designed according to the sterilization chamber size capacity. Boilers are designed with ISI mark u shape heaters with low water cut off system and glass window for water level indicator.



High-Speed type.

A high-speed term used for speedy sterilization cycle by increasing the load of horizontal autoclaves.  Hospital operation theaters require high-speed autoclave for sterilization of surgical instruments.



Optional Accessories

Feed Water Arrangement    – We can use a water pump or motor for filling the water tank of the sterilizer.

Process Control Unit    – We can use a semi-automatic or fully automatic system as per customer requirements.

Vacuum System     – Vacuum drying/air removal with the help of the water ring vacuum pump can be designed in rectangular autoclaves only.  Pre-vacuuming and post-vacuuming for pulsation in an autoclave for complete air removal in the form of trapped moisture.

PLC w/ HMI       –  We offer Delta, Siemens & Eurotherm PLC with touch screen HMI for better user experience. PLC consists of data logging facility, preset programs, USB port, RS 232 port, Graph, Animation and real-time printing with time, pressure and temperature recording.

STANDARDS  – IS 3829 standard followed by Yatherm scientific in the manufacturing of Horizontal sterilizers. We are ISO & CE certified organizations follow the ASTM standard for sterilization chamber manufacturing.





Steam Sterilizer Technical Specification
ShapeRectangular & Round
Operating  temperature121°C -134 °C
Operating  pressure15 to 25 psi
Hydraulic tested on40 psi
InsulationHigh-Quality Glass wool
PipingStainless Steel 304
Chamber condensate lineMoisture Trap
Controller typeNABL certified PID temperature controller,  Digital timer controller with END cycle buzzer
SensorCalibrated PT 100
HeatersISI mark immersion heaters
LIDSS 304 w/ Pressure locking device
Radial locking systemChrome-plated MS
StandMS powder coated
TraySS tray /Sliding Trolley option rectangular
Power supply440 Volts 50 Hz, Three Phase



Round Horizontal Autoclave Dimensions
Model No.Diameter x Height (mm)Volume (Liters)
Clavex 140400 x 1100140
Clavex 175500 x 900175
Clavex 230500 x 1200230
Clavex 339600 x 1200340
Clavex 552750 x 1200552





 Rectangular Horizontal Autoclave Dimension
Model No.W x H x D (mm)Volume (Liters)
HIclave 182450 x 450 x 900182
Hiclave 243450 x 600 x 900243
Hiclave 324600 x 600 x 900324
Hiclave 432600 x 600 x 1200432
Hiclave 540600 x 750 x 1200540
Hiclave 810600 x 900 x 1500810
Hiclave 1215900 x 900 x 15001215
