Lithium Ion Battery Glove Box

Single & Double Chamber Glove Box for Li-ion battery Manufacturing

We are the leading Indian manufacturer of Lithium-ion battery glove box. This type of glove box is required in the manufacturing of lithium-ion batteries. We have expertise in designing a glove box which provides a moisture free environment. These glove boxes save the lithium-ion battery from oxidation while manufacturing under inert atmosphere by purging nitrogen or argon gasses.  We offer a quality product at a reasonable price in India.

Yatherm Glove box is very much suitable for the research of lithium-ion batteries for the manufacturer of batteries. Our Glove box is equipped with the following items.

  • 10 mm Thick Tempered Glass
  • PLC with HMI
  • Fluorescent lamp
  • Large Antechamber (optional)
  • Small antechamber
  • Sliding trays
  • Gas Purification System
  • Circulation blower
  • Solvent Absorber System
  • Oxygen analyzer
  • Moisture analyzer
  • Sliding trays inside antechambers
  • SS 304 piping
  • Pedal on/off for Vacuuming
  • High-Quality Solenoid valve

PLC with HMI gives fully automatic working to the Glovebox by just feeding the correct parameters. Our unit has interior Stainless Steel construction and outer units can be MS powder coated or SS 304. Gas Purification system provides Catalyst and molecular sieves for O2 and H2O removals.  Leakage rate is <0.001 vol % /h and impurity levels are <1 ppm H2O & <1 ppm O2. Lithium-Ion battery needs a standard temperature, pressure, and Humidity for manufacturing. The battery can be mad under moisture level < 11 ppm and we provide a better environment to the manufacturers.

Size

Outer dimensions1945 x  800 x 1810 mm ( W x D x H )

Box

Working Chamber Dimension1225 x 765 x 900 mm ( W x D x H )
MaterialSS 304 with a thickness of 3 mm
Window panelTempered glass view , 10 mm thickness

Front Door can be opened for the transfer of material.

Lighting systemInbuilt  fluorescent light
Spare connectorKF 40 high-pressure Connector
Internal storageAdjustable shelves made up of SS 304

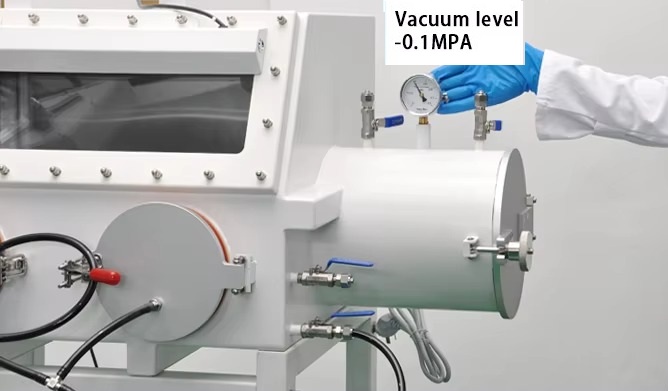

Large antechamber

LocationRight / Left Side  of the main Chamber
DimensionsDiameter 385 × 600 depth mm
Material SS 304
TransferTransfer sliding trolley SS 304
Model of OperationManual and automatic operation

Small antechamber

LocationRight / Left Side  of the main Chamber
DimensionsDiameter 150 x 300 depth in mm
Material SS 304

Stand

StandMS powder coated  with castor lockable wheels

Gas Purification System

Gas purificationHigh-Quality sieves for oxygen and  moisture removal
Circulation blowerCirculation Pump With adjustable Speed
Solvent Absorber systemActivated carbon used
HEPA filtersSaves from particulate contamination

Control System

FeaturesFully Automatic Controller PLC operated with 7 inches HMI

Performance

Leakage Rate<0.001vol%/h
Impurity levels<1 ppm H 2 O
<1 ppm O 2

Option Accessories

Vacuum pumpOil-Free rotary vane Pump.
Oxygen analyzerRange 0 ~ 1000 ppm, with an accuracy of 0.1 ppm.
Moisture analyzer0 ~ 1000 ppm, with an accuracy of 0.1 ppm.
RefrigeratorThere is a port connected with the chamber, it requires -40-degree laboratory deep freezer.
Vacuum ovenPID controlled vacuum oven operated at 250 degree Celsius.
Reaction kettle20 liters, SS 304 construction.
