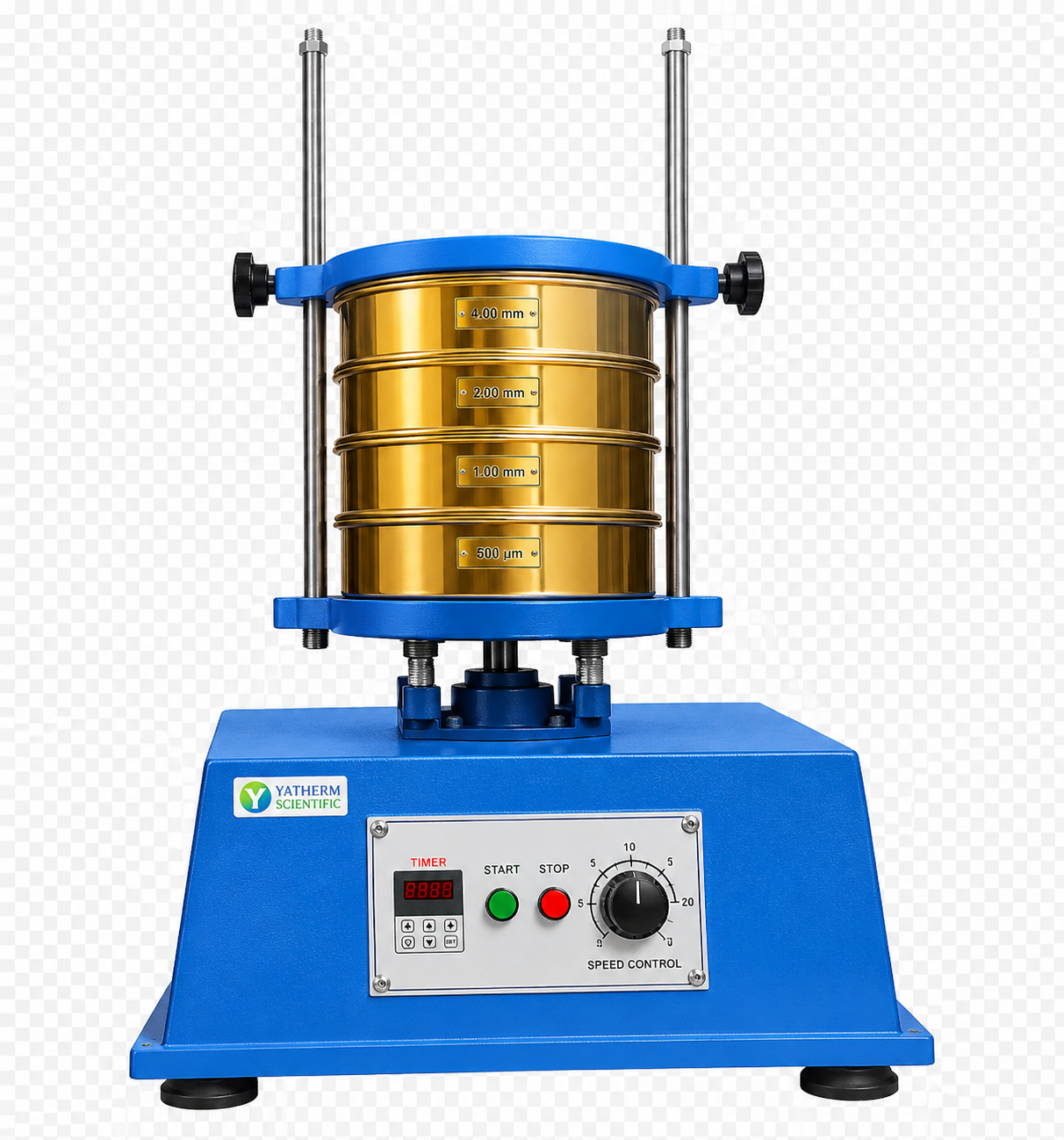

Laboratory Sieve Shaker

Tabletop Motorized & Electromagnetic Laboratory Sieve Shaker with Test sieves

Yatherm Manufactures standard and customized Motorized laboratory sieve shakers machine and Electromagnetic Sieving Shaker equipment for Research applications. These laboratory Sieve Shaker Machines are rugged in construction, provide continuous working & deliver a high level of satisfactory results. These Machines are extensively used in wide industry areas including coal, pigments, soap, cement, roofing, pharmaceuticals, minor aggregates, etc.

The excellent working performance of Yatherm Sieve Analyzer has been acclaimed and recommended by industry experts worldwide. We offer an Advanced version of laboratory sieve analyzer equipment with the best price in India. “Yatherm” laboratory Sieve Shaker equipment promise durability and user-friendly operation & maintenance. The whole construction is of cast iron and the base is made of painted mild steel. These units can be efficiently used with 3″, 5″, 8 and 12 inches” ASTM standards sieves.

The machine is designed for ASTM standard sieves like up to 10 sieves of 8 inches, 12 sieves of 5 inches and 16 sieves of 3 inches full height, and up to 18 sieves of 8 inches half height sieves. In order to achieve excellent and effective sieving action, the Sieving Shaker Machine is equipped with an electric motor drive which comprises of branded ¼ HP motor. We are known for quality sieve shaker machine and sieves in India with a year onsite warranty. We have many models & many designs for Sieve shaker so drop your mail and call us for real-time assistance.

Sieve Shaker Principle

We have two models of sieve shaker and both the models have different principles of working. Our Economy model is mechanical sieve shaker or motorized sieve shaker has inbuilt motor, & It works on the principle of electric vibration motion. Our Deluxe Model is designed with inbuilt Two heavy magnets that create electromagnetic vibration with programmed selection mode.  Both models produce different quality outputs according to the working principle.


Sieve Shaker Sketch Diagram

Yatherm Sieve Shaker Models:

  • YS 8E — Electromagnetic Sieve Shaker with 8 inches diameter base.
  • YS 12E — Electromagnetic Sieve Shaker with 12 inches diameter base.
  • YS 8M — Motorized Sieve Shaker with 8 inches diameter base.
  • YS 8ME — Motorized Sieve Shaker with 8 inches diameter Sieves and Manual Timer
Features
ASTM C136 Available Diameter of Sieve Shaker is 4, 8, 12 & 16 inches
Digital Timer/ Analog Timer Dy Sieving
Electrically operated and mechanically driven User-friendly
Rotation of sieve stage 12 per minute Lid & Pan
Technical Specifications Motorized Sieve Shaker:
Sieving Capacity (10) 8″ sieves (12) 5″ sieves
(16) 3″ full-height sieves and
(18) 8″ half-height sieves.
Construction Cast Iron, Painted Mild steel
Motor ¼ HP
Timer 0 – 60 Minutes
Timer Type Digital / Analogue
Standard ASTM C 136
Power Supply 220 Volts
Certifications CE and ISO
Technical Specifications Electromagnetic Sieve Shaker:
Operation Mode Intermittent and continuous shifting motion
Intermittent Operation At intervals (0.5 sec)
Capacity Up to 8 sieves (test sieve dia from 200 mm x 50 mm)
Shake time Programmable shake time from 1 min to 99 min
Display 20 x 4 alphanumeric LCD with backlit display
Keypad Fully alphanumeric keypad
Power level Programmable (from 1 to 20)
Noise Very low noise operation
Security 2 Tier password protection facility (Admin & User)
Printer RS 232 port for the serial printer using 80 column Dot Matrix or Thermal Printer
Dry Sieving Standard (Wet Sieve Optional)
Dimension 310 mm x 390 mm x 260 mm (approx.)
Weight 19 kg approx. (without sieve)
Power 220/230 VAC, 50 Hz, 600 VA
