Melting/Boiling Point Apparatus
USP/IP Melting & Boiling Point Apparatus

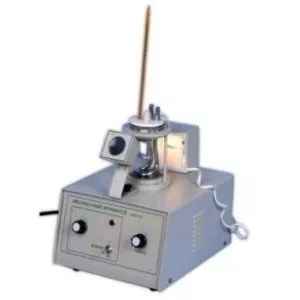

Yatherm is known as a Pharmaceutical instrument Manufacturer in India with a variety of categories used in a research laboratory. Yatherm offers USP/IP compliance Melting point apparatus with all validation documents like IQ/PQ/DQ to our pharmaceutical customers. As the name suggests this pharmaceutical instrument is designed for the determination of the accurate melting point of solid samples with precise & controlled accuracy.

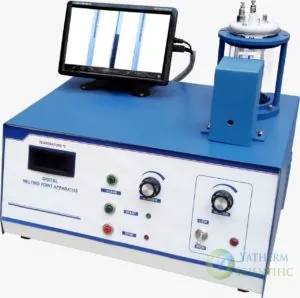

Yatherm Models comes in TFT screen with a high-quality camera for testing the range of boiling and melting points of solid samples in powder form. Yatherm Boiling Point Apparatus is equipped with a Silicon Oil bath, Capillaries holders, an inbuilt magnetic stirrer, a pilot lamp, a magnifier, a Temperature selection point & glare free illuminator. Start & Stop switches are used for testing the sample melting point. Our pharmaceutical instruments are rugged in construction for long-life usage with a user-friendly controller.
Melting/Boiling Point Apparatus Construction:
Silicon Oil bath – This Instrument is equipped with a 200 ml capacity cylindrical Oil bath that has an ISI mark U-type heater for uniform heating in the bath & Teflon cover with five holes in it. We use Silicon Oil as heating media in this instrument for testing melting and boiling points.
Capillary – This instrument is equipped with three holes for an arrangement of holding 100 mm long capillary for testing the samples in testing heating media.
LED Display – This unit comes with 4 digits & 3 Digit has 7 segments display
TFT screen – USP/IP compliance Boiling Point apparatus equipped with a High-resolution camera for a view of the capillary.
Magnetic Stirrer – Yatherm Offers a magnetic stirrer with an on/off and speeds control manual knob for uniform temperature.
Boiling Point Glass Tube – 6 mm (diameter) x 75 mm (long )glass tube comes for testing the boiling point of samples.
Digital temperature Indicator – Pt 100 sensor helps in indicating the temperature range digitally
| Features | |
| TFT screen with Camera | 4/3 digit 7 segments LED Display |
| Digital Readout for temperature 0.1°C | Silicon Oil Bath |
| Inbuilt Magnetic Stirrer | Simple operation fast process |
| User-Friendly | Accurate Results |
| Silicon Oil bath | IQ/OQ/DQ Validation Documents |
| Melting Point Apparatus Specifications | ||
| Model | Carbon 935 | Carbon 934 |
| Measuring | Boiling point & Melting Point | Melting point & Boiling Point |
| Construction | MS powder coated | MS powder coated |
| Temperature range | RT +2°C – 300°C | RT +2°C – 300°C |
| Resolution | 0.1°C | 1°C |
| Display | 4 Digits, 7-Segment LED AlphaNumeric | 3 Digits, 7-Segment LED AlphaNumeric |
| Capillary | Length: 100 mm Dia.: 0.8 – 1.1mm |
Length: 100 mm Dia.: 0.8 – 1.1mm |
| Boiling Point Glass Tubes | Length: 75-80 mm | Length: 75-80 mm |
| Heating Media | Silicon oil | Silicon oil |
| Power | 230 V ± 10%, 50 Hz. AC | 230 V ± 10%, 50 Hz. AC |
| Weight | 12 kg | |
| Accessories | Capillaries, Boiling Point Tubes, Thermometer Silicon Oil, Magnetic Capsule, Beaker with Teflon Cover |
|
