Steel Glove Box



We are the leading manufacturer of all kind of Glove Box in India. We offer customized and tailor-made glove box to our client with complete onsite installation, demonstration, and Training. Our Glove Box is equipped with antechamber, Pressure gauges, Neoprene Rubber Gloves & Steel high-Pressure flanges. The stainless steel glove box is manufactured for testing the samples under an inert atmosphere.



Yatherm Steel Glove box designed in double-walled construction with inner stainless steel 304 grade and outer construction made of Mild steel. Stainless steel glove box used for testing with the heavy-duty instrument. Glove Box is also known as the Nitrogen atmospheric cabinet because of its users under a nitrogen gas atmosphere. Steel Glove box saves the user and equipment from unwanted damages done under inert atmosphere working. Yatherm Steel Glove Box is Rugged & Durable with the best price available in India.

Glove Box Diagram:



Glove Box operating procedure:
  1. Install The Glove Box Properly As instructed
  2. Arrange Oil-free Vacuum Pump
  3. Arrange Nitrogen Cylinder
  4. Put your Samples and testing material inside the main chamber
  5. Vacuuming of main chamber & Antechamber
  6. Purging Of Nitrogen gas in Both the Chamber
  7. Now Glove box is ready for operation under inert Atmosphere
  8. Release the gas after finishing your test



Features:

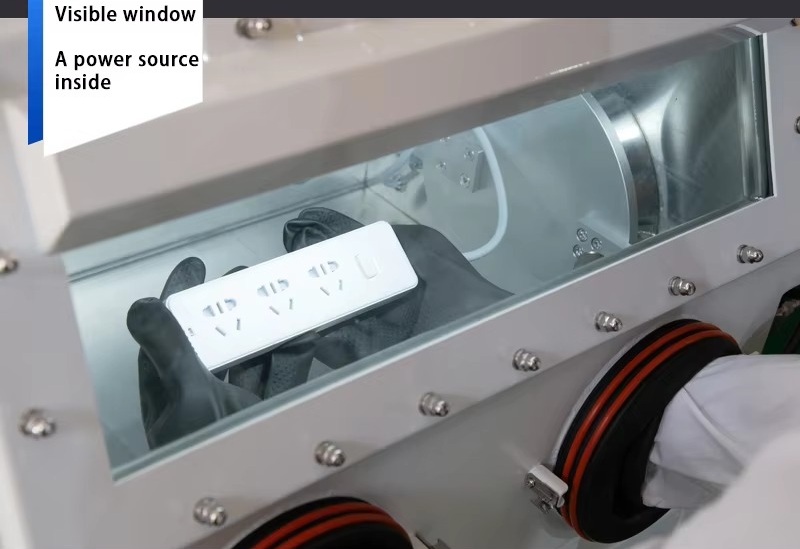

Made from SS 304Transparent clear view from the front glass window
Vacuum air locker and side doorChamber Tray for keeping samples
Prevention from Moisture absorptionPortable with less Space
Low & easy maintenanceLightweight construction



Specifications:
ModelsYS SGB – 1YS SGB -3YS SGB – 4
Air Lock size (mm)215 (Dia.) x 265 (L)245 (Dia.) x 265 (L)365 (Dia.) x 265 (L)
Main chamber size (mm)610 (W) x 450 (D) x 425 (H)785 (L) x 655 (W) x 710 (H)1130 (W) x 750 (D) x 905 (H)
Front window size (mm)500 (W) x 160 (H)710 (W) x 325 (H)1050 (W) x 400 (H)
Antechamber Sideright side, with sliding trayright side, with sliding trayright side, with sliding tray
Thickness of sheet 3 MM3 MM 3 MM
MaterialStainless Steel 304 Grade

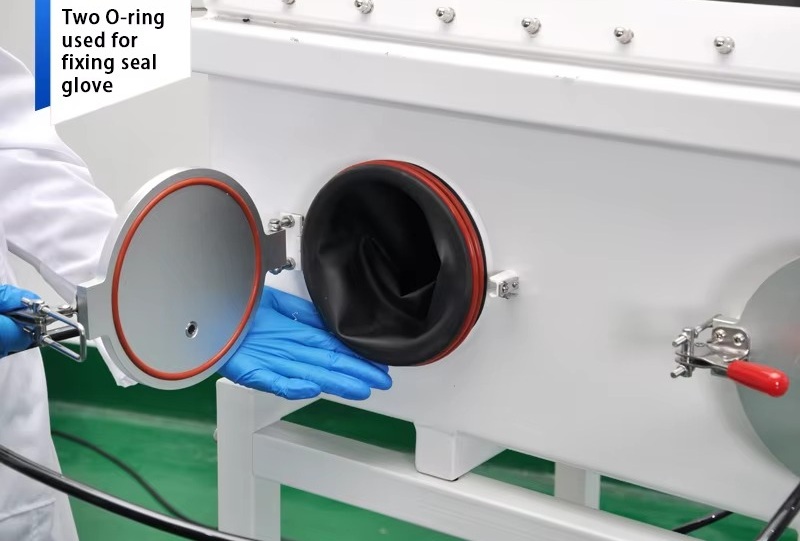

Window Panel1 Transparent Glass Front Panel Removable tempered window with 2 glove ports (12 mm)
Lighting System1 Lighting System (110 V, 60 Hz)
Max. positive pressure0.1 MPa  / 1 Atmospheric Pressure
Max. Vacuum level-0.1 MPa/ 760 mm Hg
Standard accessories

(Inclusive)

– Vacuum flanges: 02 Nos.
– KF 25 Connector: 01 No.
– Internal plug strip: 01 No.
– Latex Gloves: 01 pair
Optional

(Exclusive)

– Vacuum pump & fittings
– Three / Four Glove Ports
– Nitrogen Cylinder & fittings
